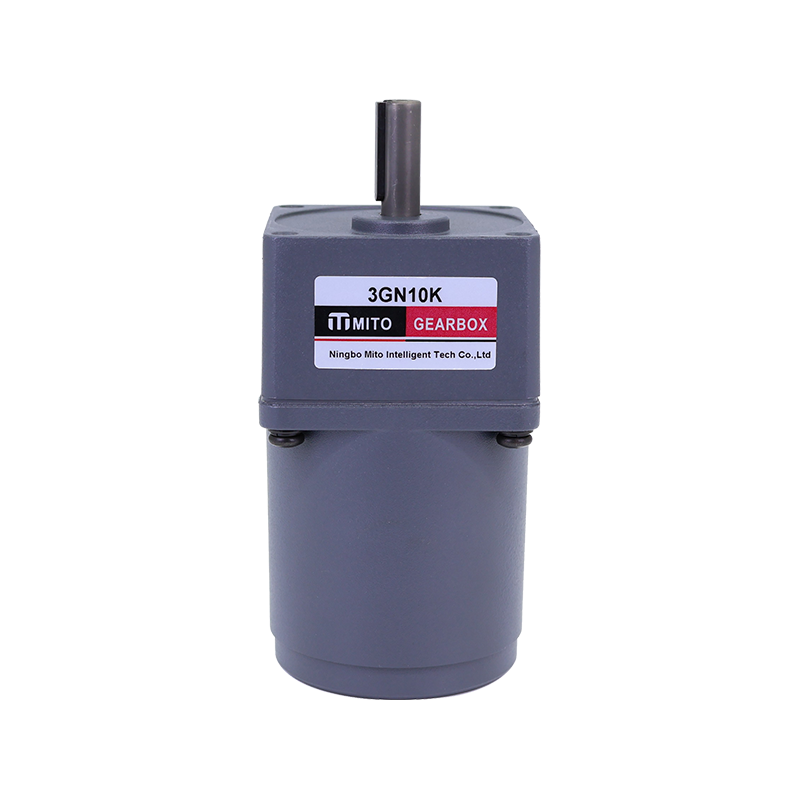

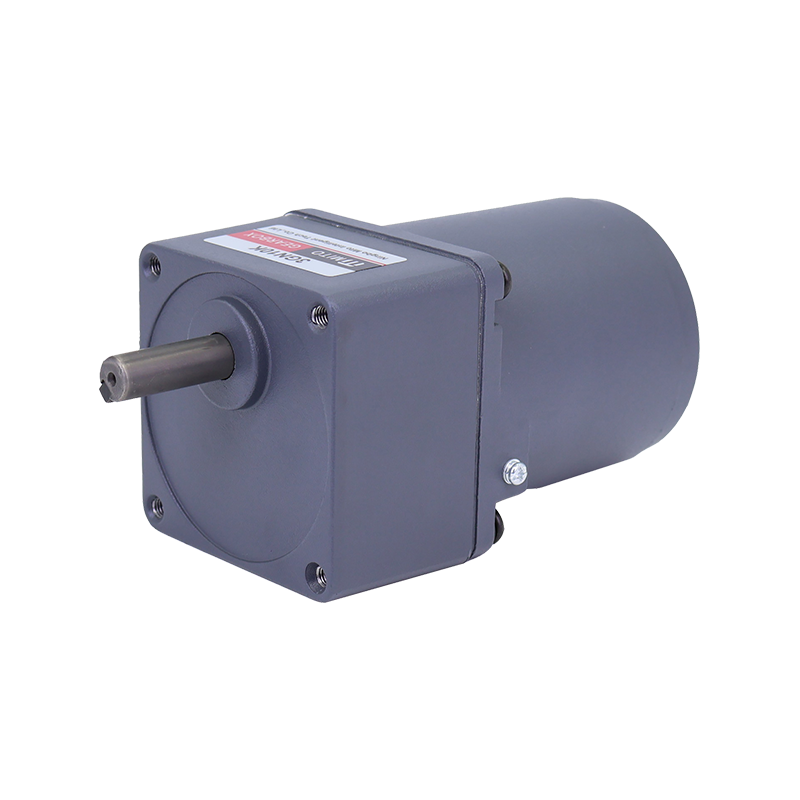

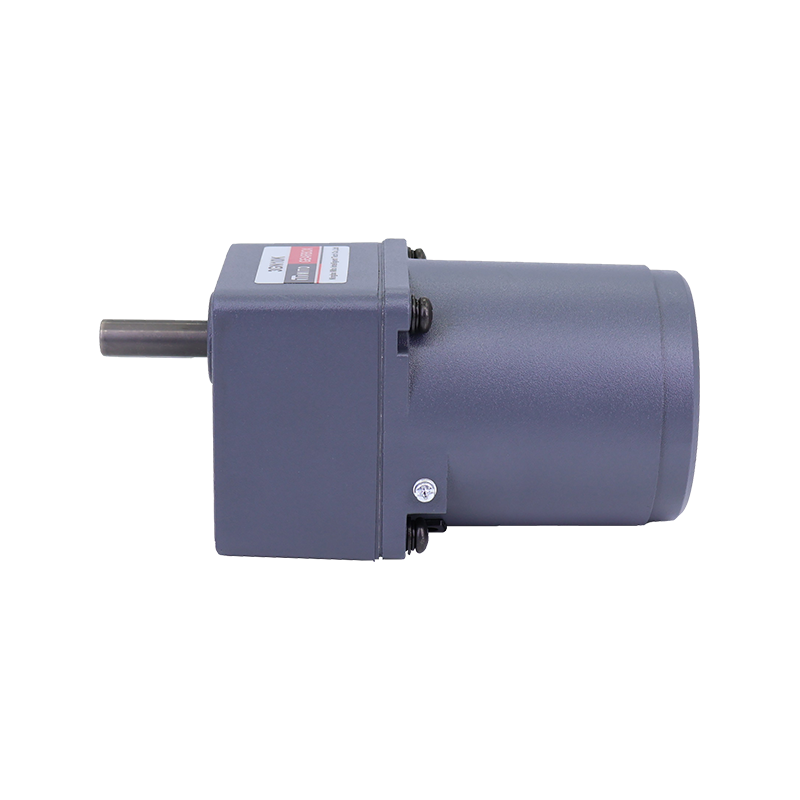

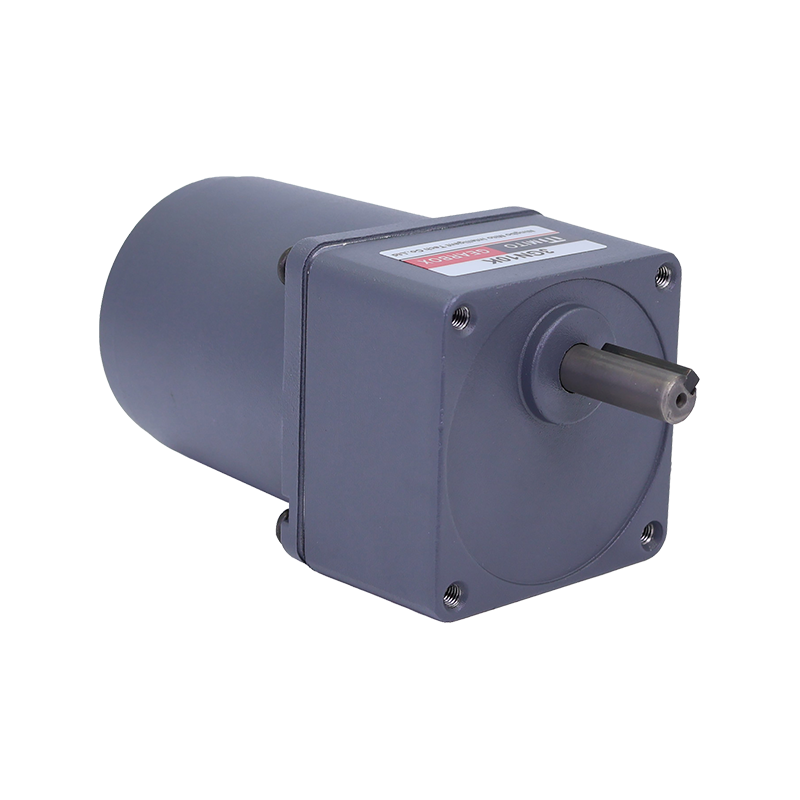

电机类型：3IK
功率：15W
电压： 110-380V
变速箱传动比： 3-200K
|
型号•类型 |
输出功率 |
电压 |
频率 |
电流 |
启动转矩 mN.m |
额定转矩 mN.m |
额定转速 r/min |
运行电容 |
|
|
齿轮轴型 |
光轴 |
||||||||
|
3IK15GN-A |
3IK15A-A |
15 |
1ph 100 |
50 |
0.35 |
90 |
125 |
1200 |
6.0 |
|
60 |
0.33 |
85 |
105 |
1450 |
|||||
|
3IK15GN-E |
3IK15A-E |
15 |
1ph 110 |
60 |
0.30 |
65 |
105 |
1450 |
5.0 |
|
1ph 120 |
0.32 |
||||||||
|
3IK15GN-C |
3IK15A-C |
15 |
1ph 220 |
50 |
0.18 |
90 |
125 |
1200 |
1.2 |
|
1ph 230 |
0.20 |
||||||||
|
3IK15GN-H |
3IK15A-H |
15 |
1ph 220 |
60 |
0.16 |
65 |
1G5 |
1450 |
|
|
1ph 230 |
0.15 |
70 |
|||||||
|
3IK15GN-S |
3IK15A-S |
15 |
3ph 220 |
50 |
0.14 |
220 |
125 |
1200 |
- |
|
60 |
0.12 |
180 |
105 |
1450 |
|||||
|
3IK15GN-S3 |
3IK15A-S3 |
15 |
3ph 380 |
50 |
0.08 |
220 |
125 |
1200 |
- |
|
60 |
0.07 |
180 |
105 |
1450 |
|||||
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
12.5 |
15 |
18 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
|
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
120 |
100 |
83 |
60 |
50 |
41 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
|
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
144 |
120 |
100 |
72 |
60 |
50 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
9 |
||
|
3IK15GN-A |
3GN□K |
50Hz |
0.30 |
0.36 |
0.51 |
0.61 |
0.76 |
0.91 |
1.3 |
1.5 |
1.8 |
2.3 |
2.7 |
3.3 |
4.1 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
|
3.06 |
3.67 |
5.20 |
6.22 |
7.75 |
9.28 |
13.2 |
15.3 |
18.3 |
23.4 |
27.5 |
33.7 |
41.8 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|||
|
60Hz |
0.26 |
0.31 |
0.43 |
0.51 |
0.64 |
0.77 |
1.1 |
1.3 |
1.5 |
1.9 |
2.3 |
2.8 |
3.5 |
4.2 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
||
|
2.65 |
3.16 |
4.38 |
5.20 |
6.53 |
7.85 |
11.2 |
13.2 |
15.3 |
19.3 |
23.4 |
28.5 |
35.7 |
42.8 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
|||
