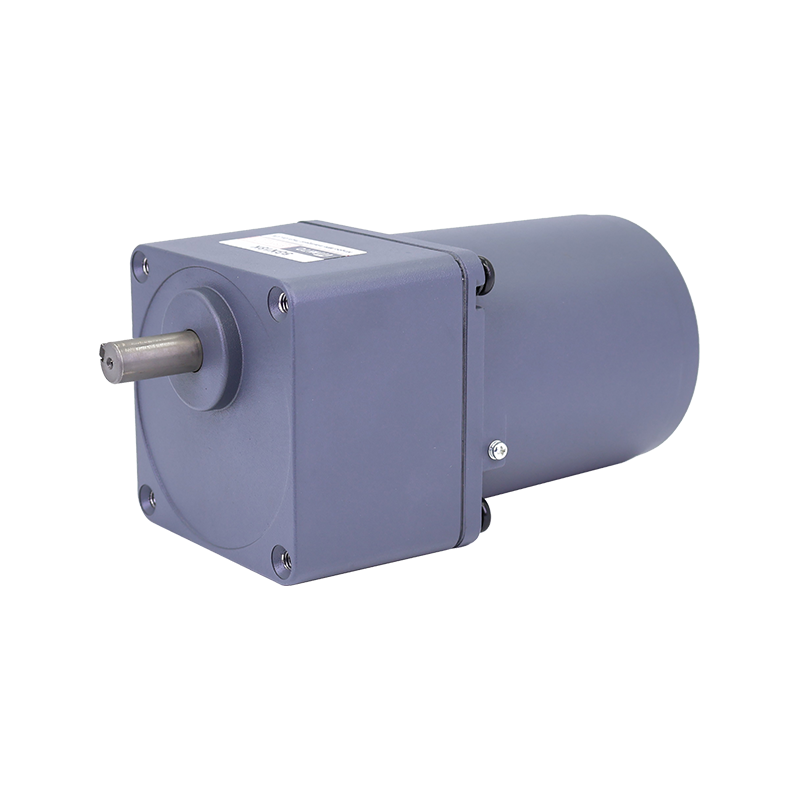

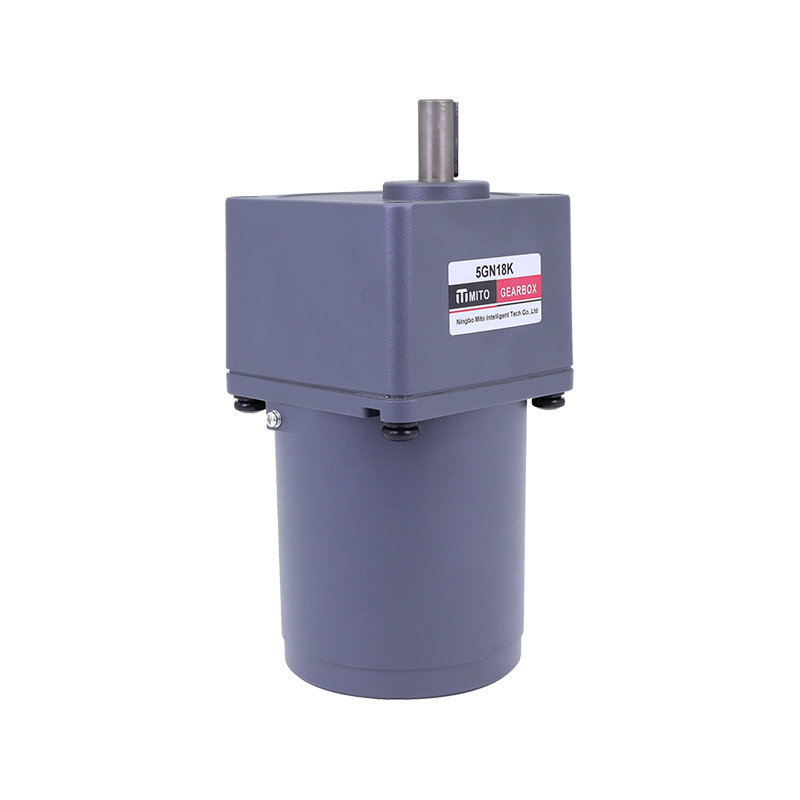

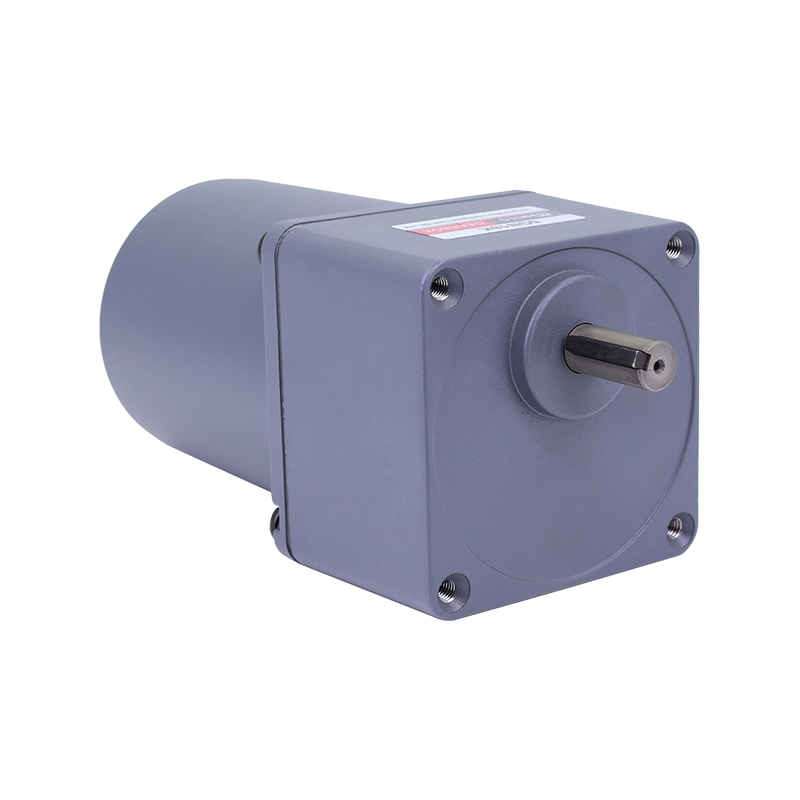

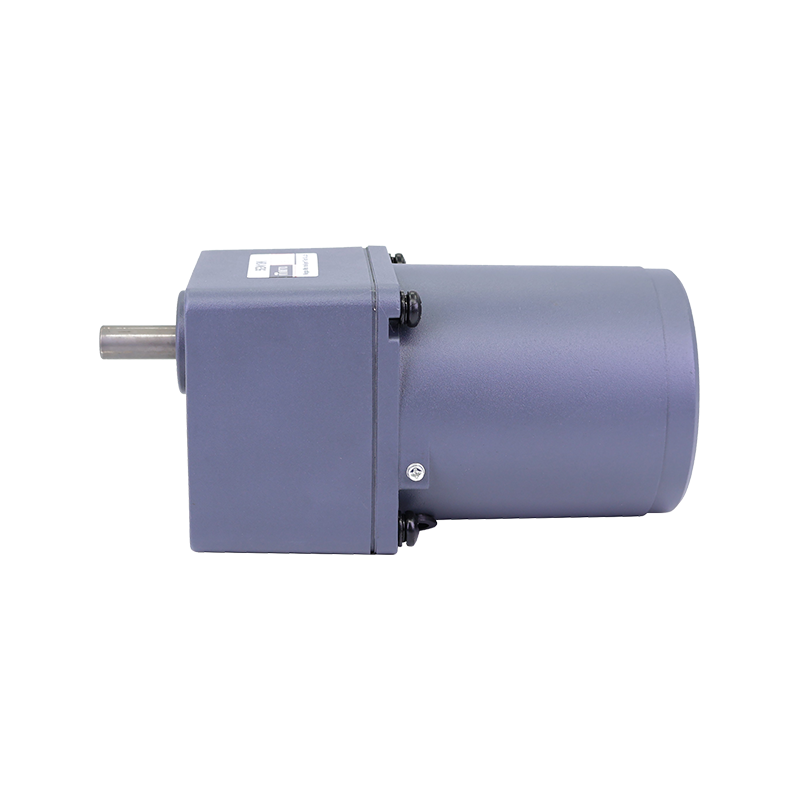

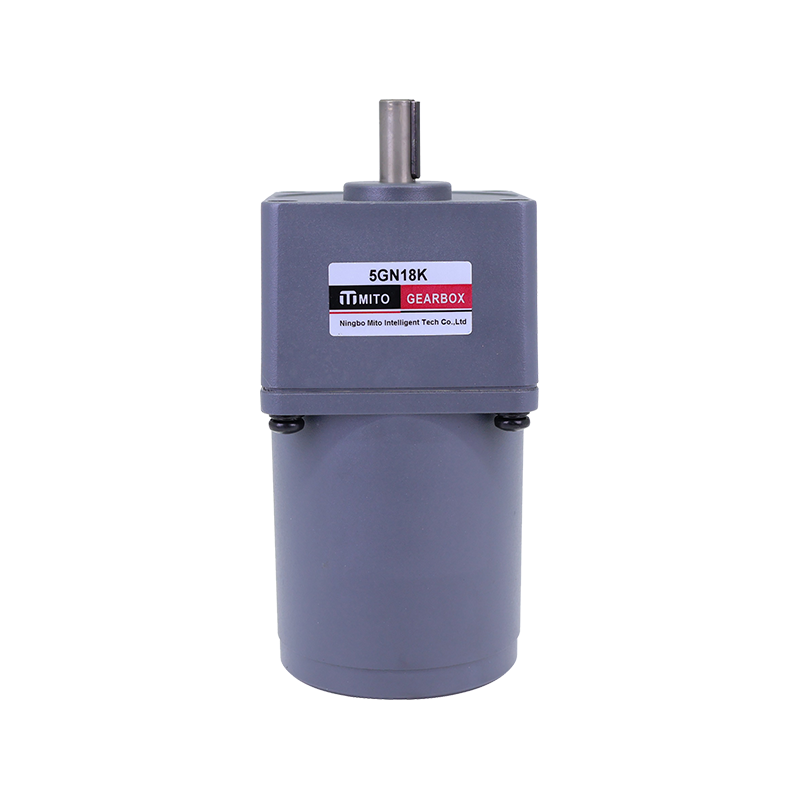

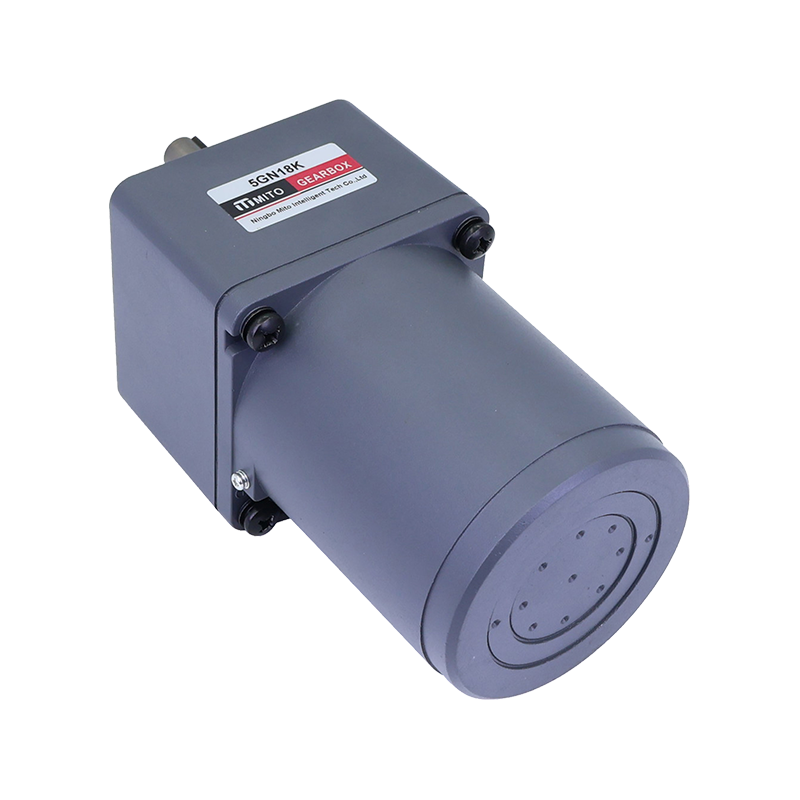

电机类型：5IK
功率：40W
电压： 110-380V
变速箱传动比： 3-200K
|
型号 •类型 |
输出功率 |
电压 |
频率 |
电流 |
启动转矩 |
额定转矩 |
额定转速 |
运行电容 |
|
|

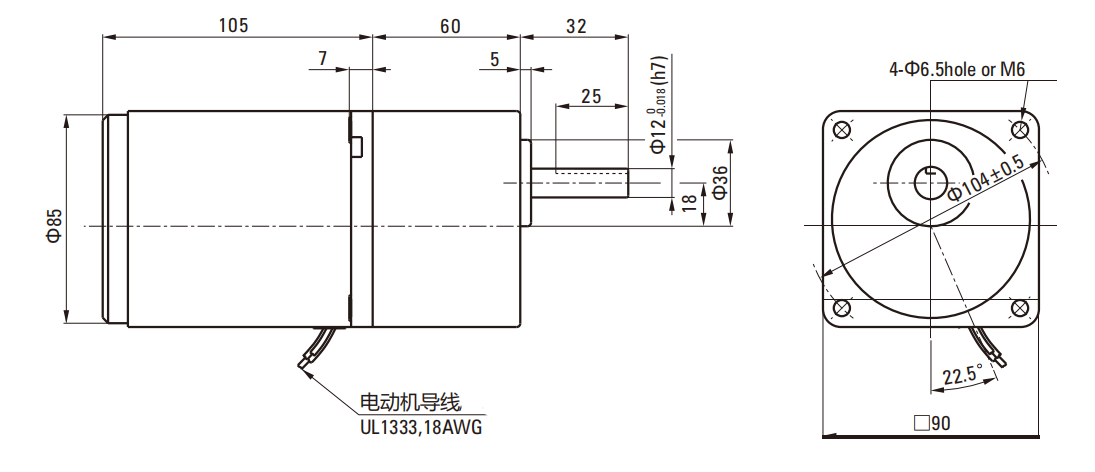

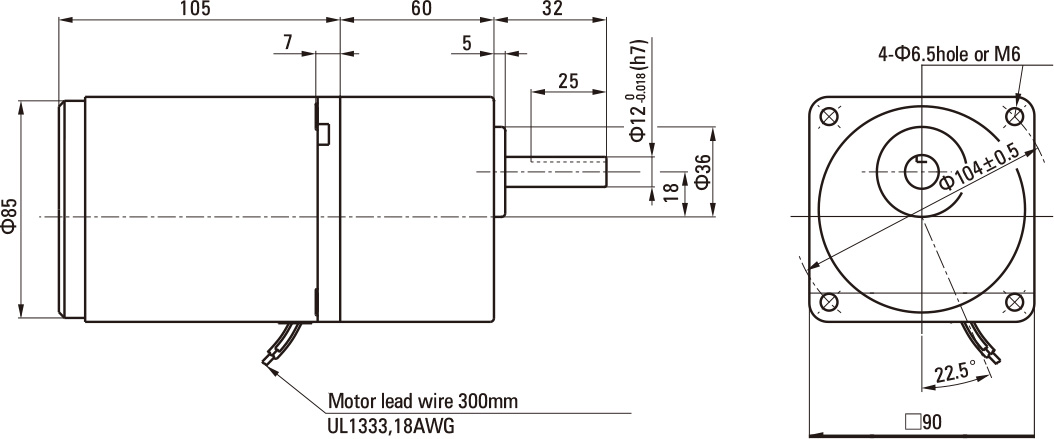

引出线型 尺寸 ① |
接线盒型 尺寸 ② |
||||||||
|
5IK40GN-A (5IK40A-A ) |
5IK40GN-AT (5IK40A-AT ) |
40 |
1ph 100 |
50 |
0.65 |
220 |
315 |
1250 |
12.0 |
|
60 |
0.70 |
260 |
1550 |
||||||
|
5IK40GN-E (5IK40A-E) |
5IK40GN-ET (5IK40A-ET) |
40 |
1ph 110 |
60 |
0.55 |
200 |
260 |
1550 |
8.0 |
|
1ph 120 |
0.60 |
||||||||
|
5IK40GN-C (5IK40A-C ) |
5IK40GN-CT (5IK40A-CT) |
40 |
1ph 220 |
50 |
0.35 |
220 |
315 |
1250 |
2.5 |
|
1ph 230 |
0.40 |
||||||||
|
5IK40GN-H (5IK40A-H) |
5IK40GN-HT (5IK40A-HT) |
40 |
1ph 220 |
60 |
0.35 |
200 |
260 |
1550 |
|
|
1ph 230 |
0.40 |
||||||||
|
5IK40GN-S (5IK40A-S ) |
5IK40GN-ST (5IK40A-ST) |
40 |
3ph 220 |
50 |
0.30 |
800 |
315 |
1250 |
- |
|
60 |
0.25 |
660 |
250 |
1550 |
|||||
|
5IK40GN-S3 (5IK40A-S3) |
5IK40GN-S3T (5IK40A-S3T) |
40 |
3ph 380 |
50 |
0.17 |
800 |
315 |
1250 |
- |
|
60 |
0.14 |
660 |
250 |
1550 |
|||||
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
12.5 |
15 |
18 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
|
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
120 |
100 |
83 |
60 |
50 |
41 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
|
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
144 |
120 |
100 |
72 |
60 |
50 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
9 |
||
|
5IK40GN-A□
5IK40GN-E□ 5IK40GN-C□ 5IK40GN-H□ 5IK40GN-S□ 5IK40GN-S3□
|
5GN□K |
50Hz |
0.77 |
0.92 |
1.3 |
1.5 |
1.9 |
2.3 |
3.2 |
3.8 |
4.6 |
5.7 |
6.9 |
8.3 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
|
7.85 |
9.38 |
13.2 |
15.3 |
19.4 |
23.4 |
32.6 |
38.7 |
46.9 |
58.1 |
70.4 |
84.7 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|||
|
60Hz |
0.63 |
0.76 |
1.1 |
1.3 |
1.6 |
1.9 |
2.6 |
3.2 |
3.8 |
4.7 |
5.7 |
6.8 |
8.6 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
||
|
6.42 |
7.75 |
11.2 |
13.2 |
16.3 |
19.3 |
26.5 |
32.6 |
38.7 |
47.9 |
58.1 |
69.3 |
87.7 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|||
