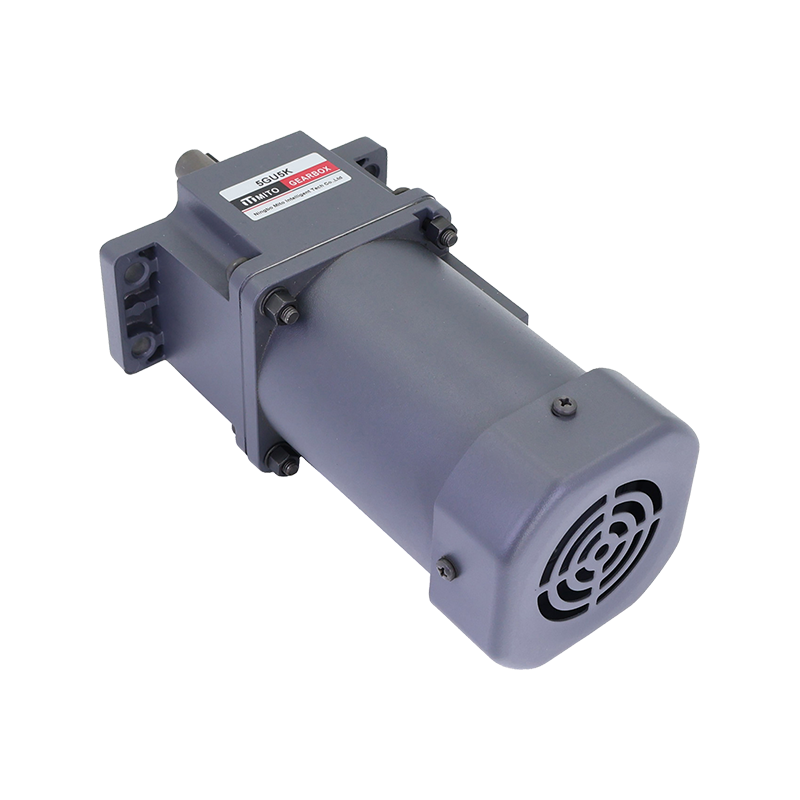

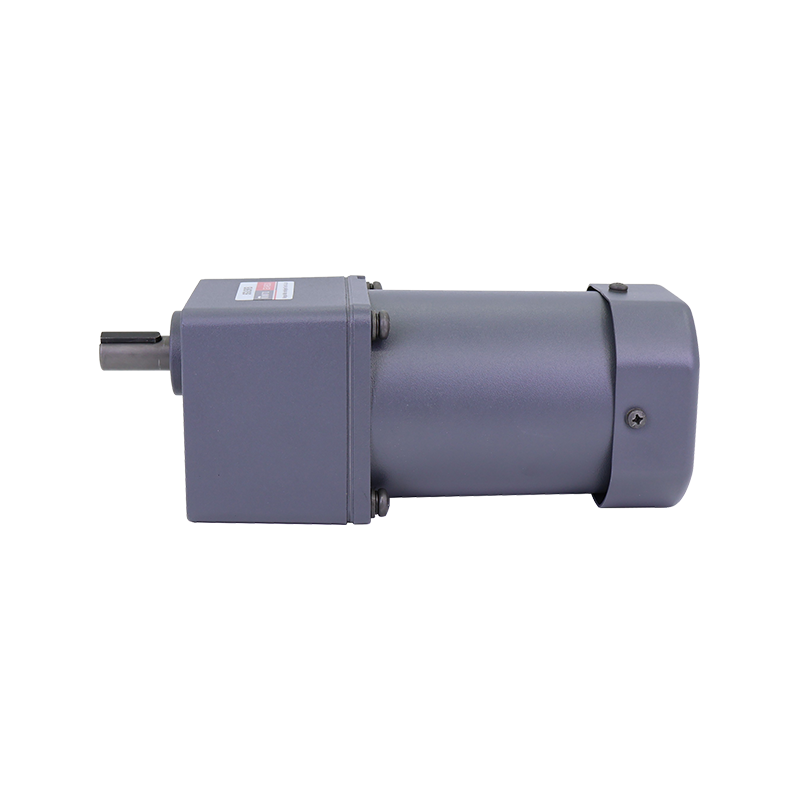

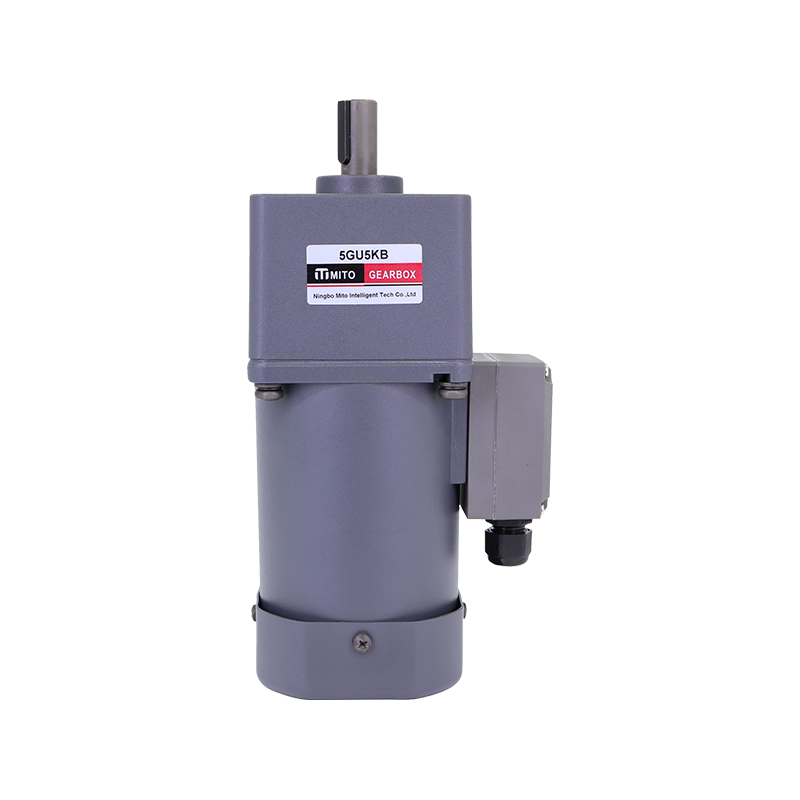

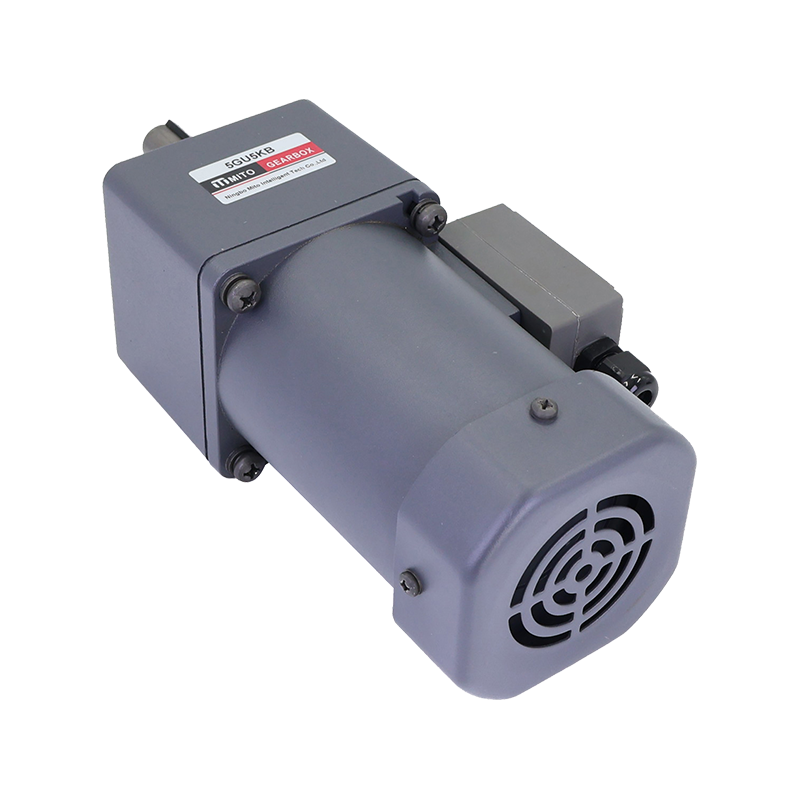

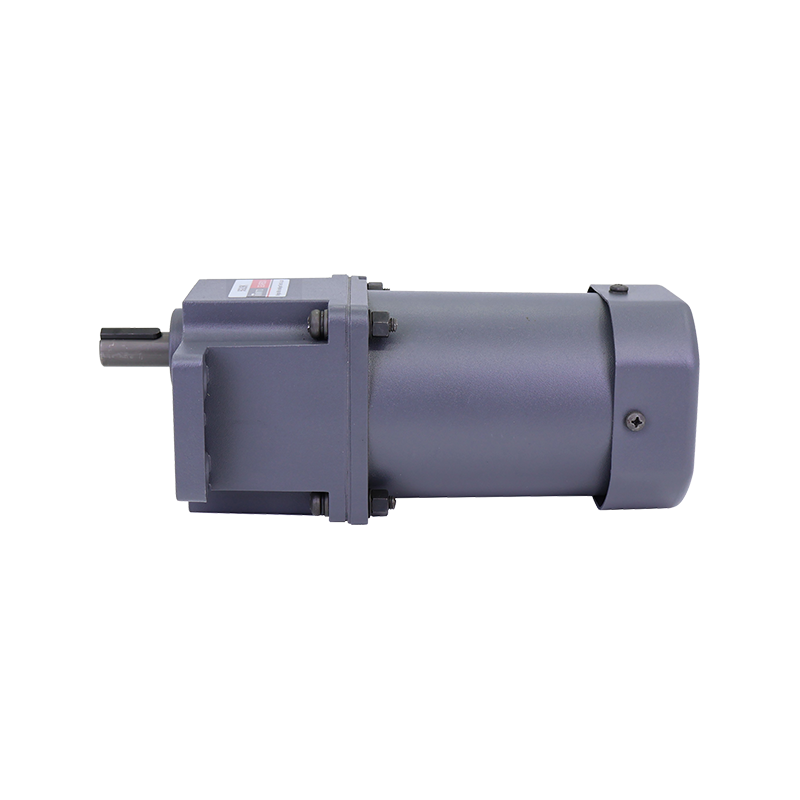

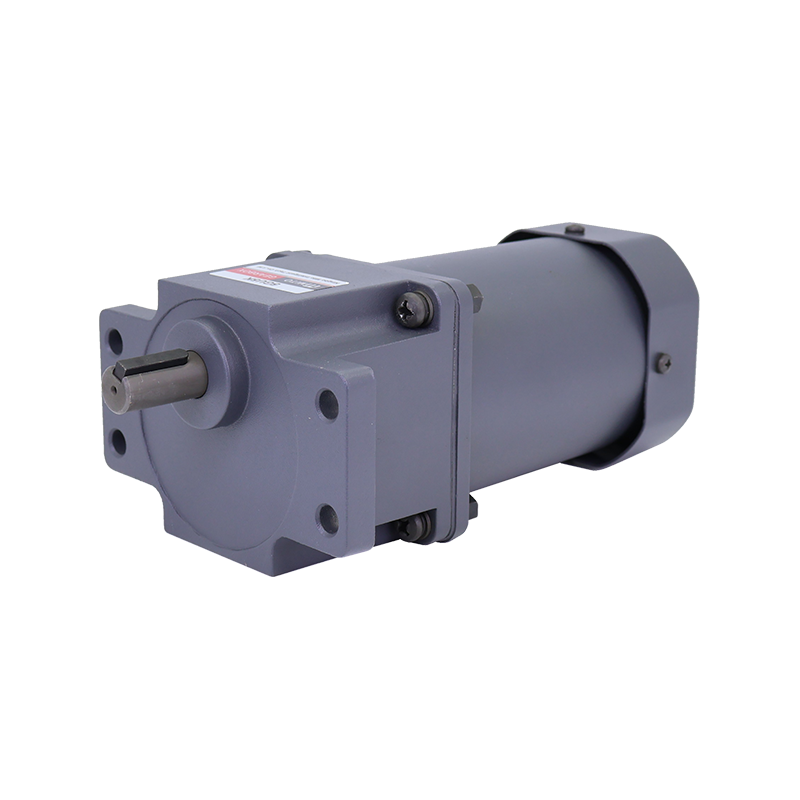

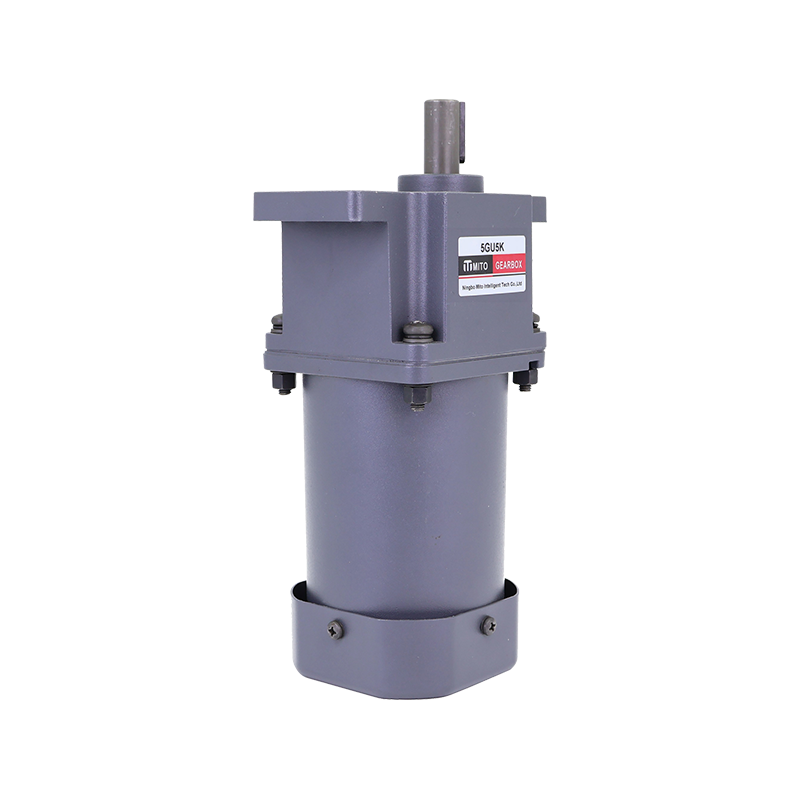

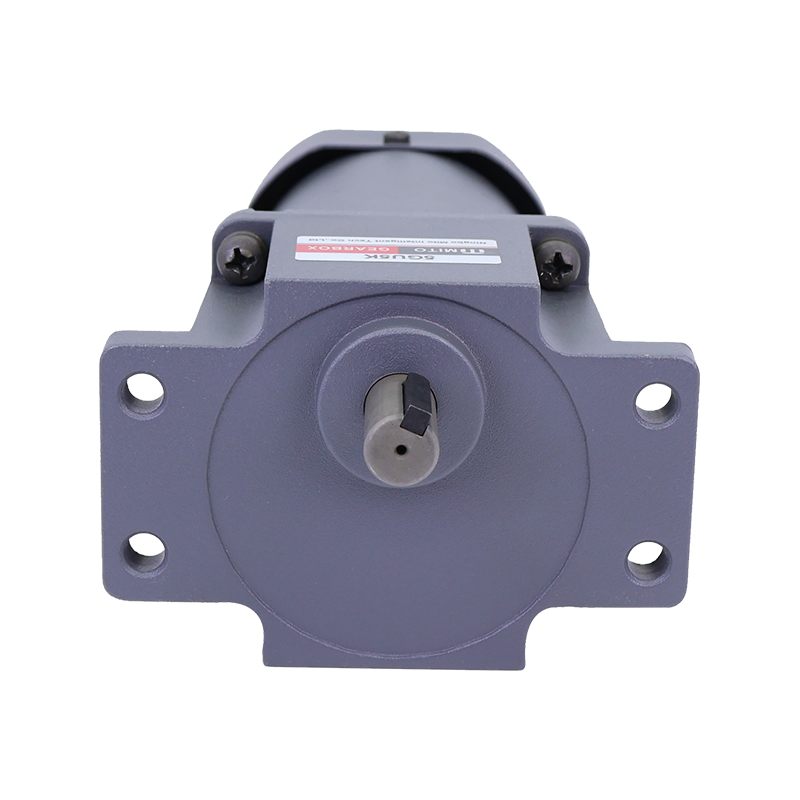

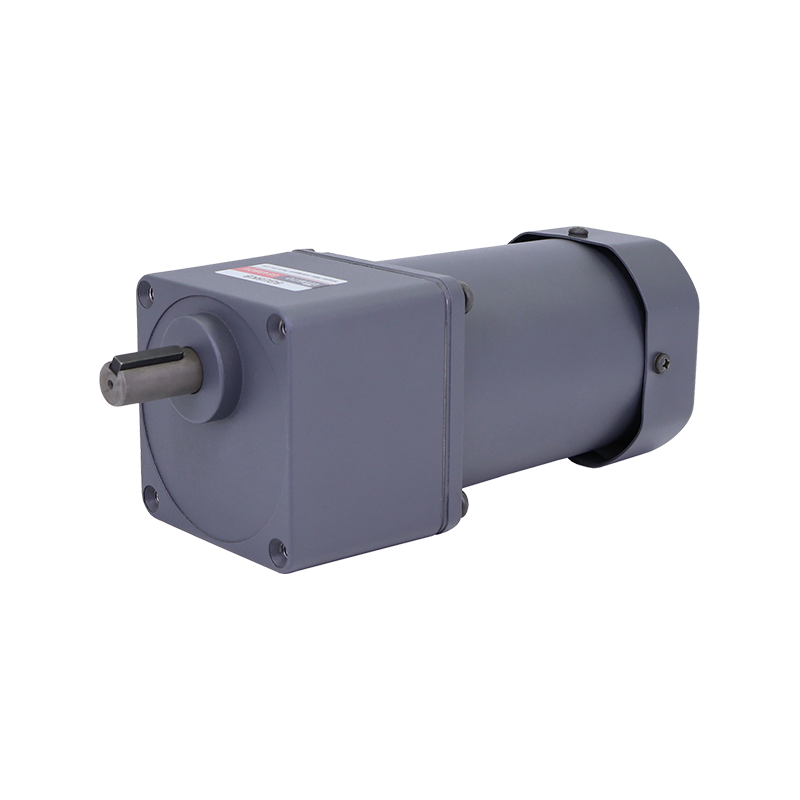

电机类型：5IK
功率：120W
电压： 110-380V
变速箱传动比： 3-200K
|
型号 ·类型 上段：齿轮轴 下段()内：圆轴 |
输出功率 W |
电压 V |
频率 Hz |
电流 A |
启动转矩 mN.m |
额定转矩 mN.m |
额定转速 r/min |
运行电容 μF |
|
|

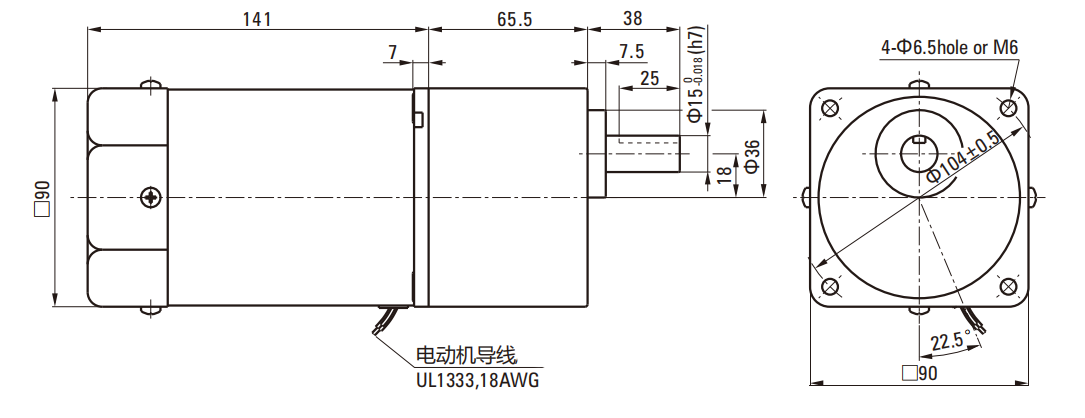

引出线型 尺寸① |

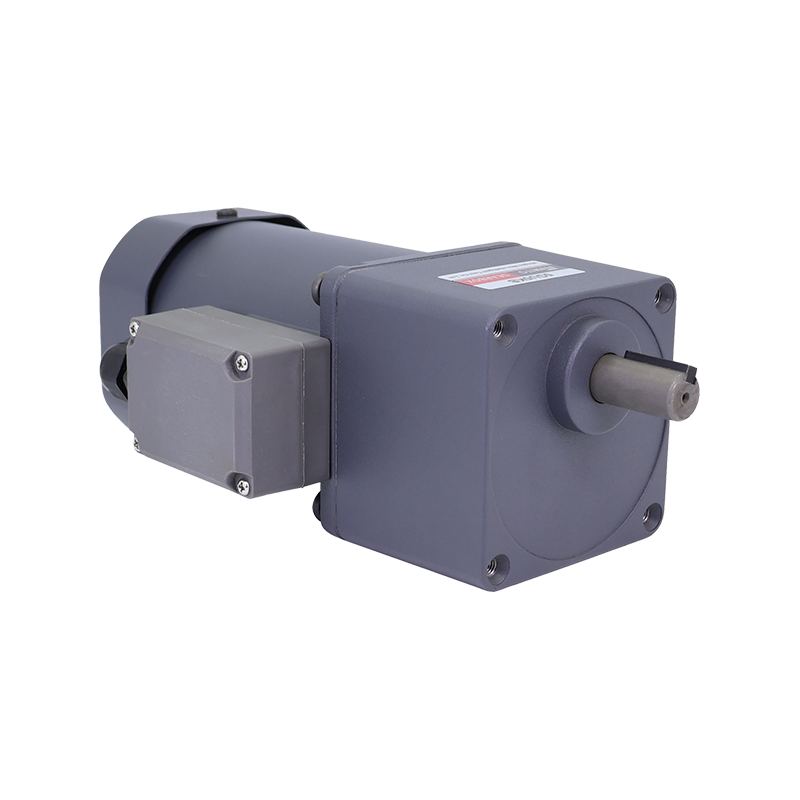

接线盒型 尺寸② |
||||||||
|
5IK120GU-AF (5IK120A-AF) |
5IK120GU-AFT (5IK120A-AFT) |
120 |
1ph 100 |
50 |
2.10 |
600 |
930 |
1250 |
30.0 |
|
60 |
2.50 |
750 |
1550 |
||||||
|
5IK120GU-EF (5IK120A-EF) |
5IK120GU-EFT (5IK120A-EFT) |
120 |
1ph 110 |
60 |
1.65 |
600 |
750 |
1550 |
25.0 |
|
1ph 120 |
1.80 |
||||||||
|
5IK120GU-CF (5IK120A-CF) |
5IK120GU-CFT (5IK120A-CFT) |
120 |
1ph 220 |
50 |
1.00 |
650 |
930 |
1250 |
7.0 |
|
1ph 230 |
0.95 |
||||||||
|
5IK120GU-HF (5IK120A-HF) |
5IK120GU-HFT (5IK120A-HFT) |
120 |
1ph 220 |
60 |
1.00 |
600 |
750 |
1550 |
7.0 |
|
1ph 230 |
0.95 |
||||||||
|
5IK120GU-SF (5IK120A-SF) |
5IK120GU-SFT (5IK120A-SFT) |
120 |
3ph 220 |
50 |
0.70 |
1850 |
930 |
1250 |
|
|
60 |
0.60 |
1600 |
750 |
1550 |
|||||
|
5IK120GU-S3F (5IK120A-S3F) |
51K120GU-S3FT (5IK120A-S3FT) |
120 |
3ph 380 |
50 |
0.40 |
1850 |
930 |
1250 |
|
|
60 |
0.35 |
1600 |
750 |
1550 |
|||||
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
40 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
|
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
41 |
37 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
|
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
45 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
9 |
||
|
5IK120GU-AF□ 5IK120GU-EF□ 5IK120GU-CF□ 5IK120GU-HF□ 5IK120GU-SF□ |

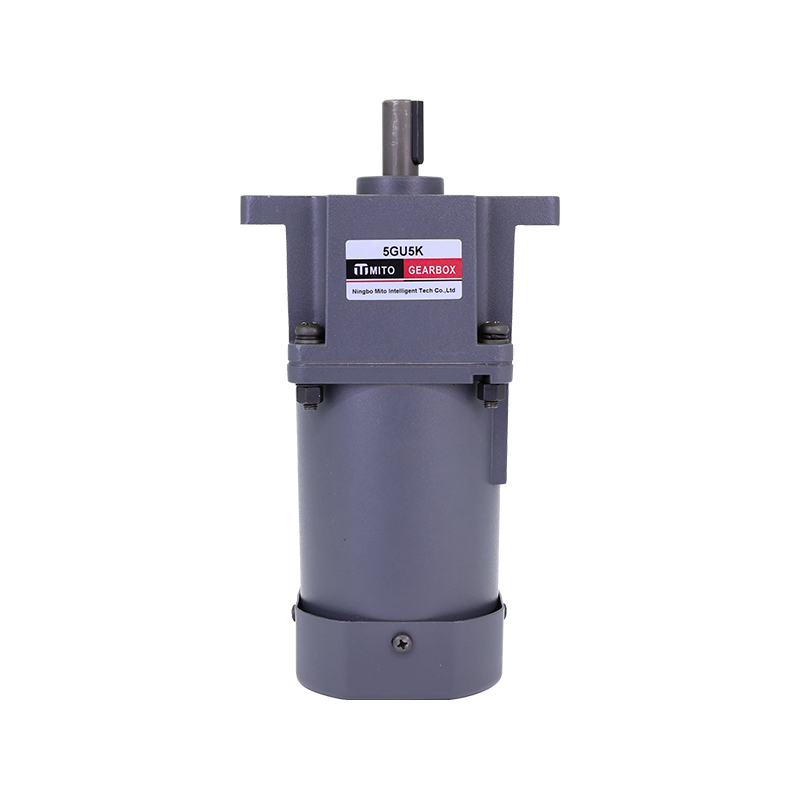

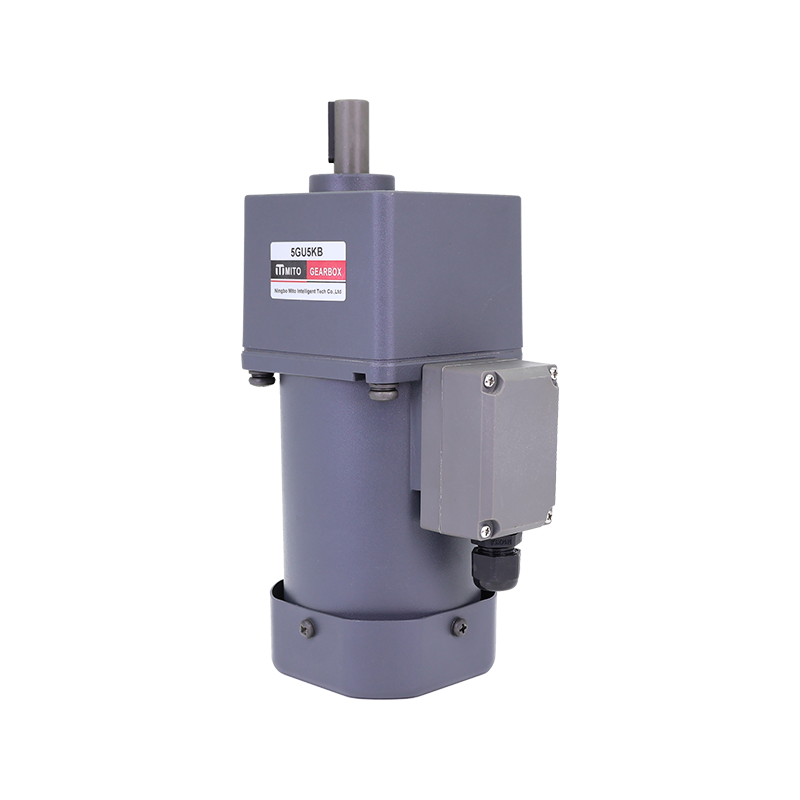

5GU□KB 5GU□K |
50Hz |
2.30 |
2.70 |
3.80 |
4.50 |
5.60 |
6.80 |
7.01 |
8.50 |
10.2 |
12.2 |
12.5 |
15.3 |
18.4 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
|
23.4 |
27.5 |
38.7 |
45.9 |
57.1 |
69.3 |
71.5 |
86.7 |
104 |
124 |
128 |
156 |
187 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|||
|
60Hz |
1.80 |
2.20 |
3.00 |
3.60 |
4.60 |
5.50 |
5.73 |
6.80 |
8.20 |
9.80 |
10.1 |
12.4 |
14.9 |
17.8 |
19.5 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
||
|
18.3 |
22.4 |
30.6 |
36.7 |
46.9 |
56.1 |
58.5 |
69.5 |
83.6 |
100 |
103 |
126 |
152 |
181 |
199 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|||
