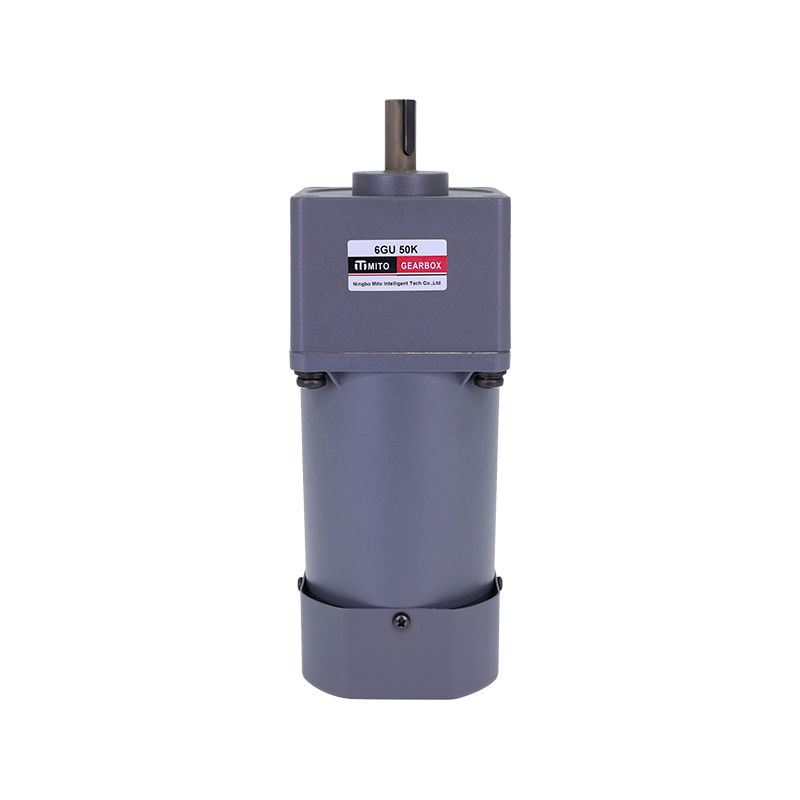

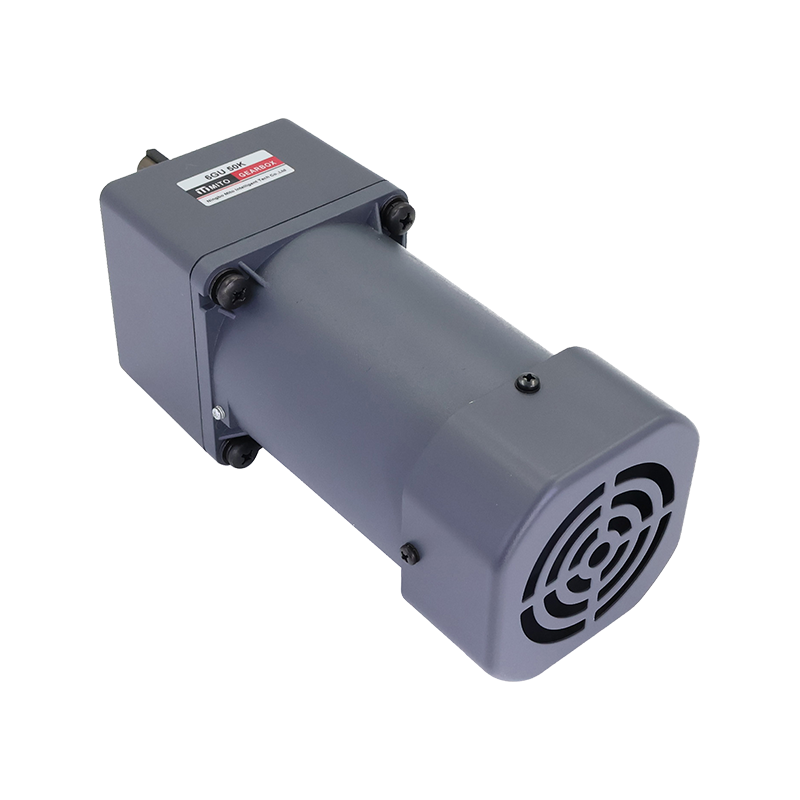

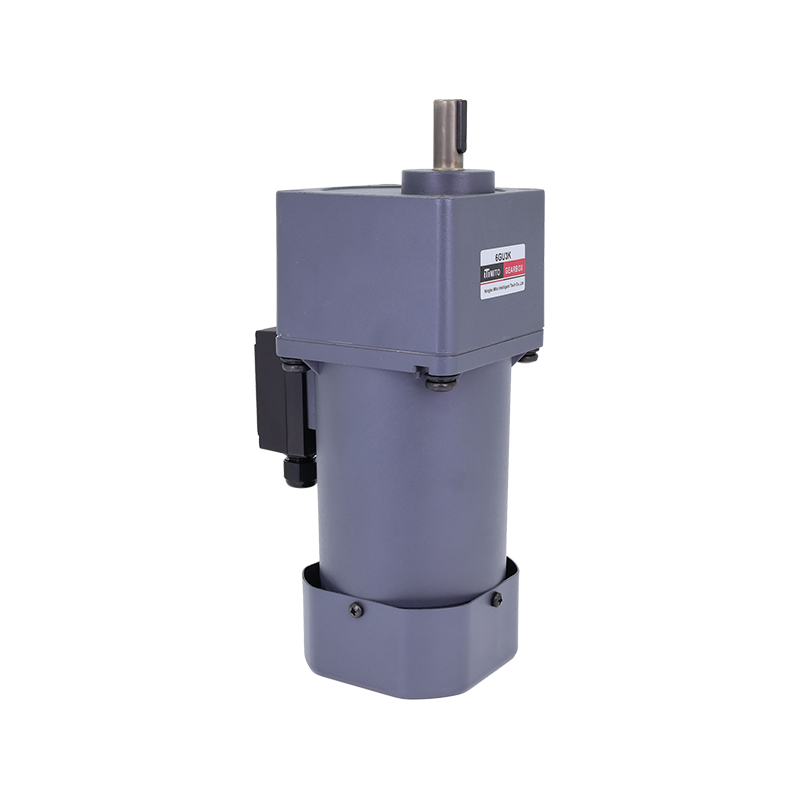

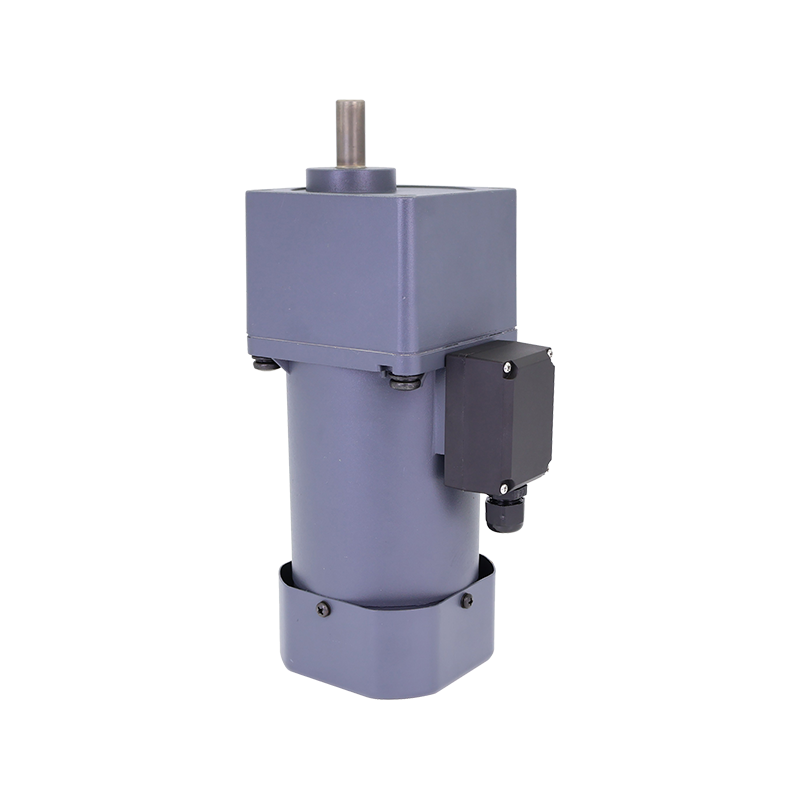

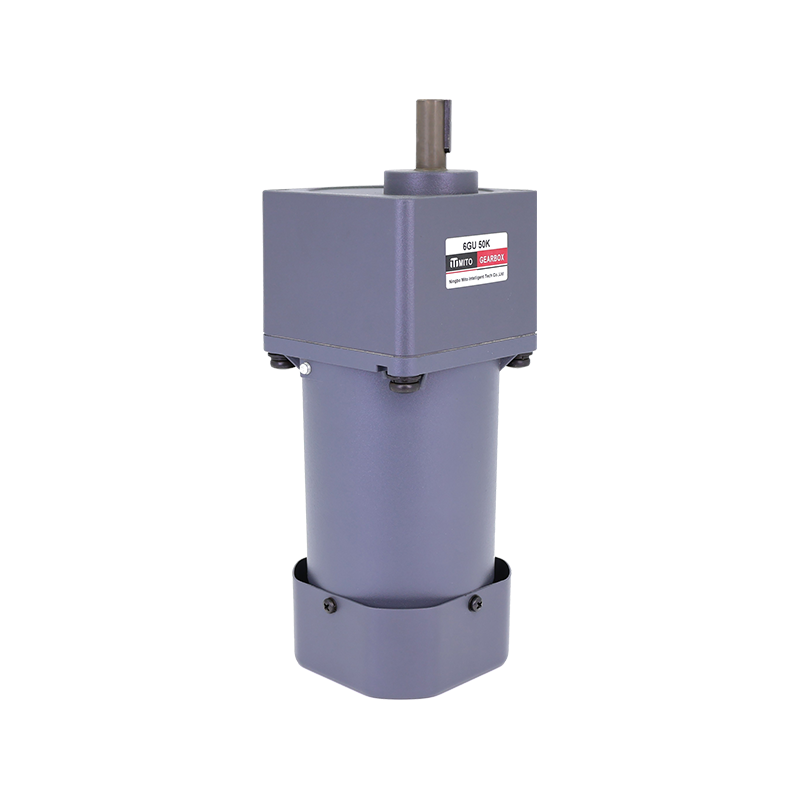

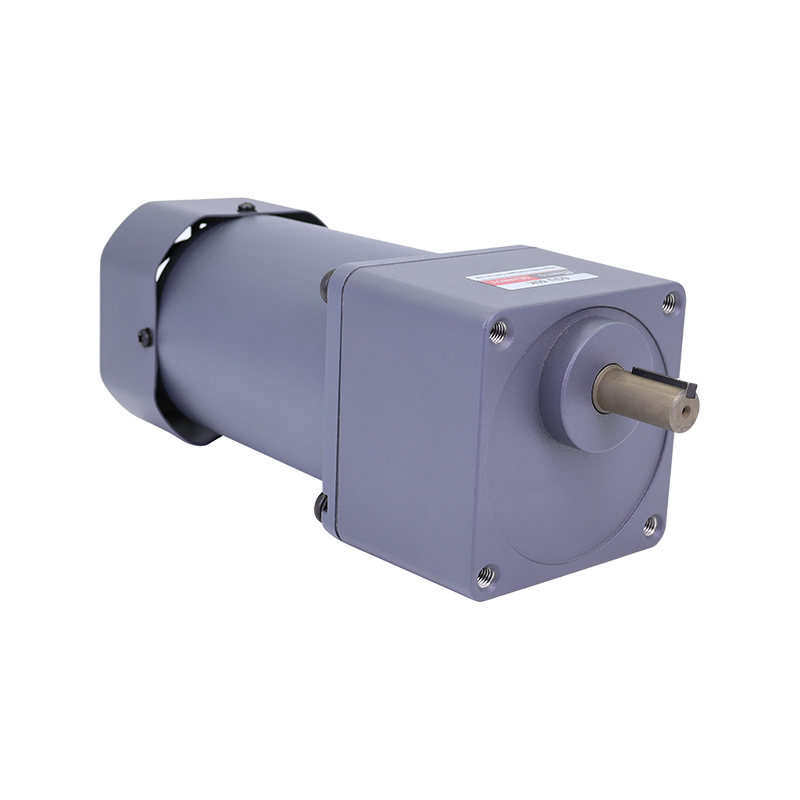

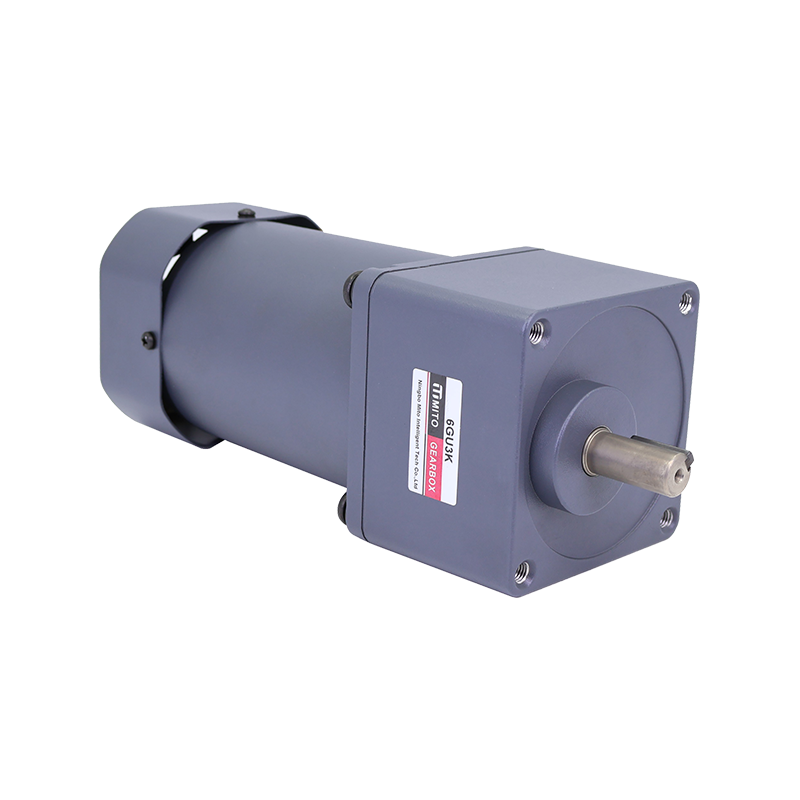

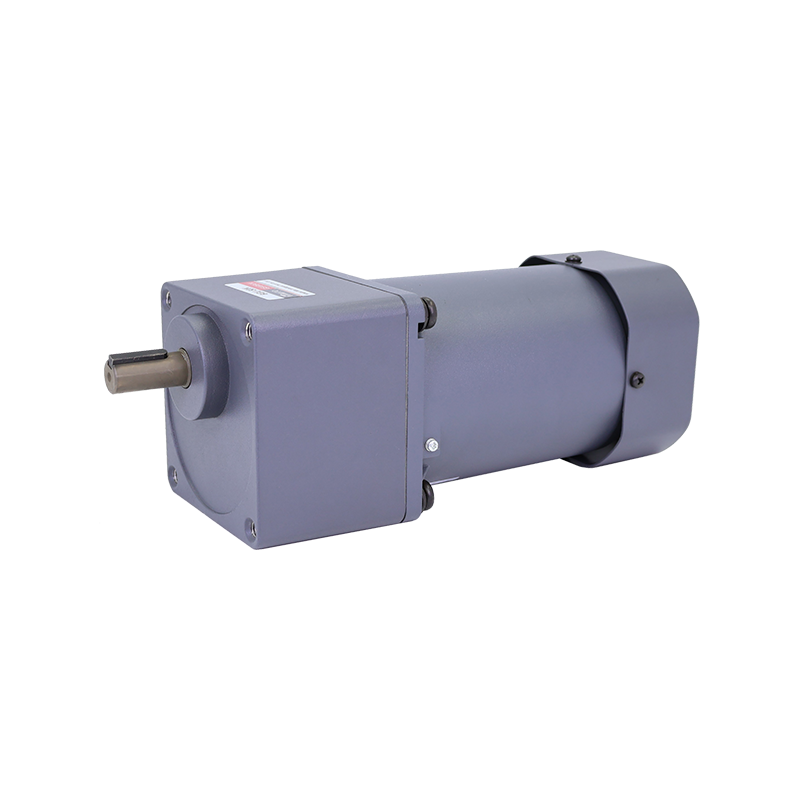

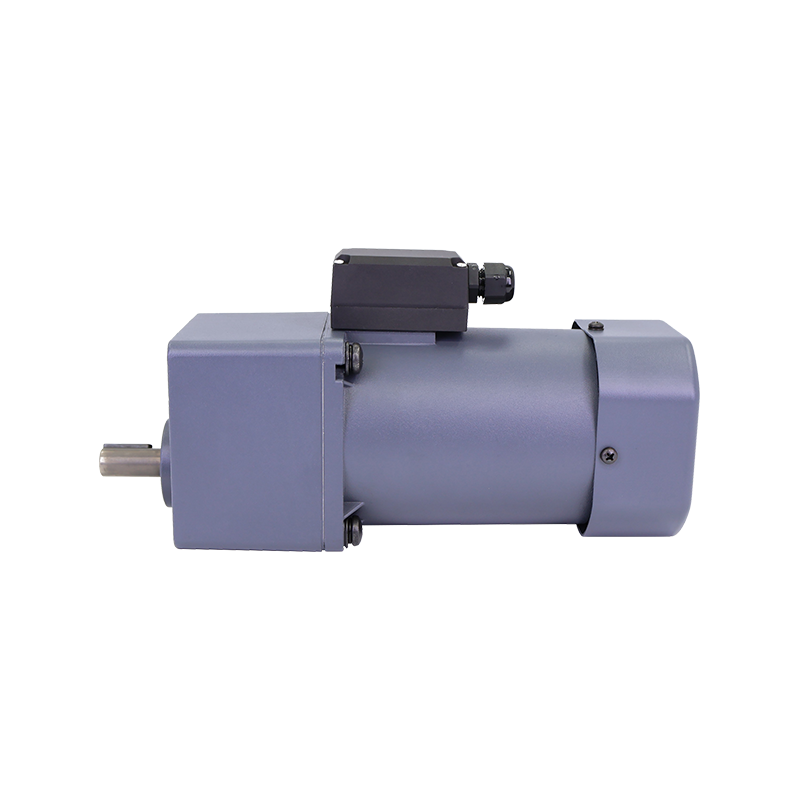

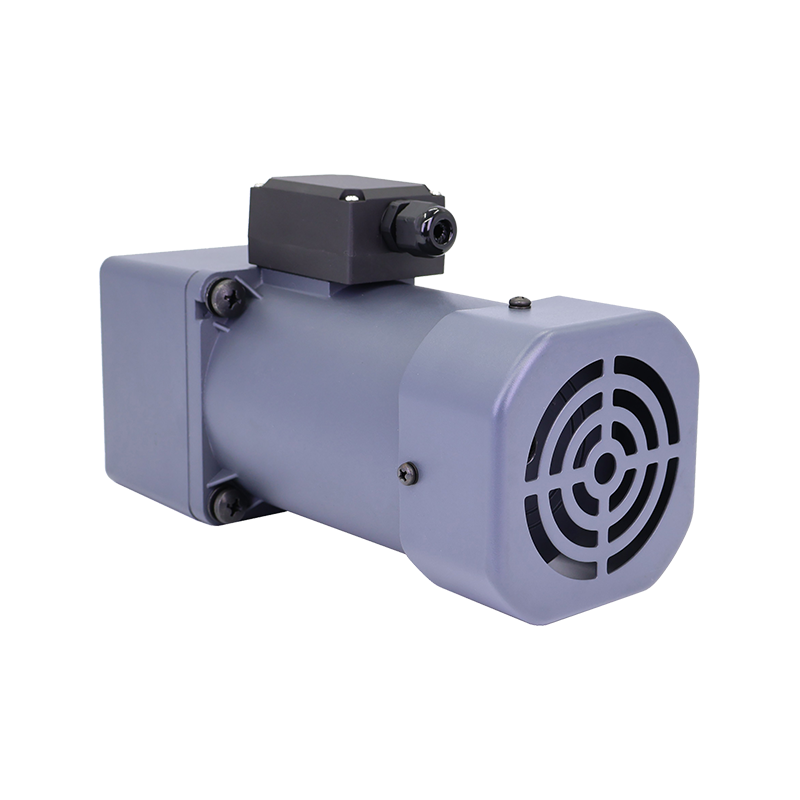

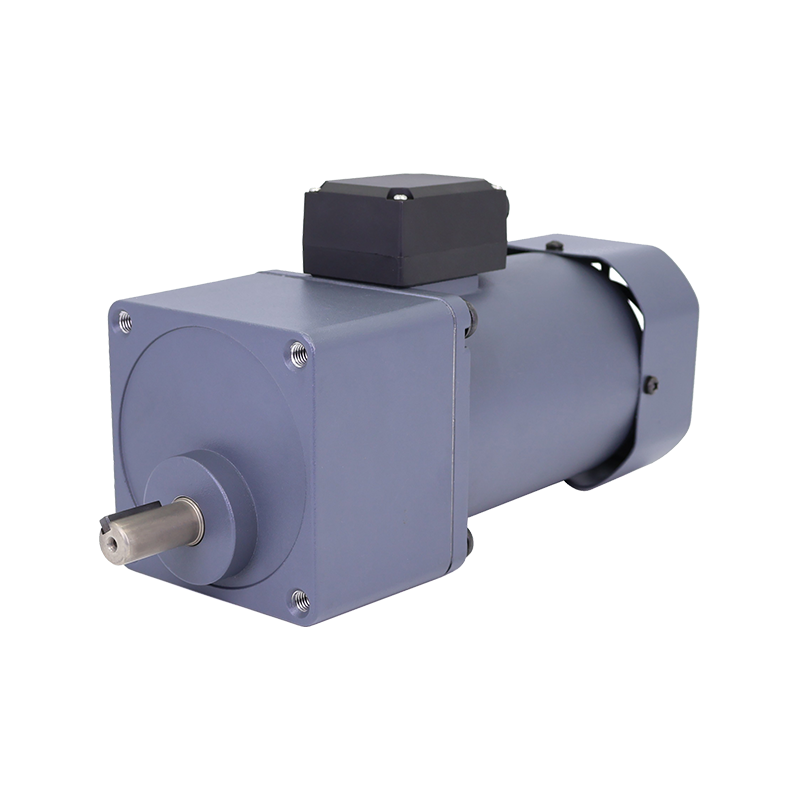

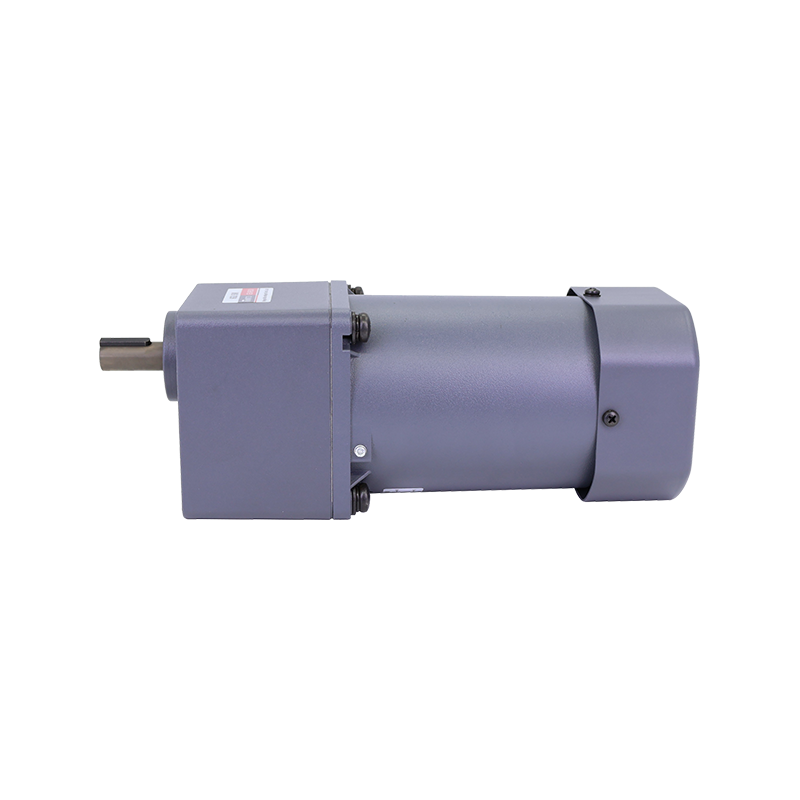

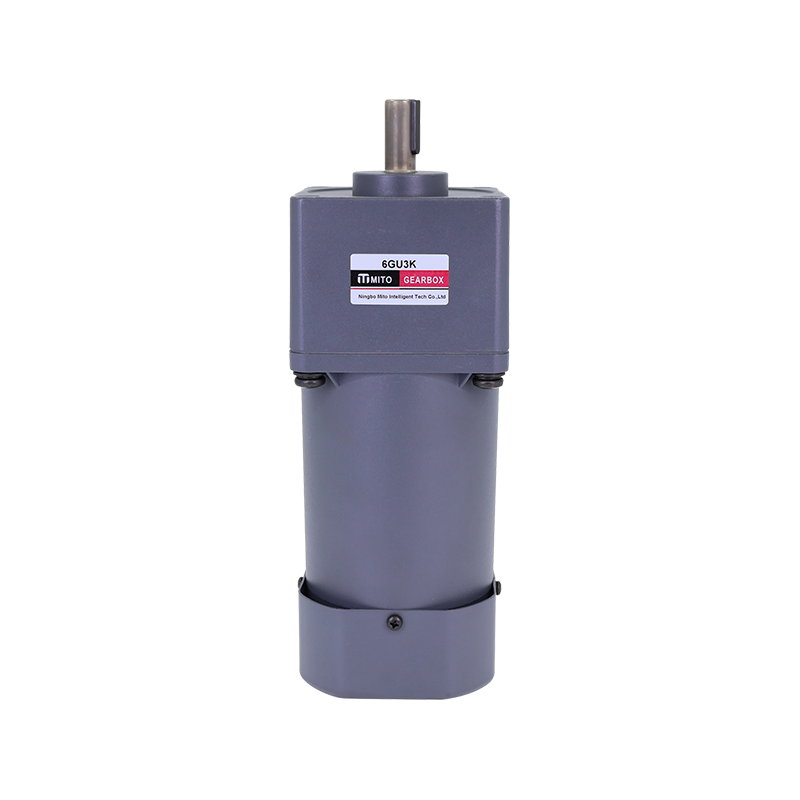

电机类型：6IK
功率：120W
电压： 110-380V
变速箱传动比： 3-200K
|
型号 ·类型 上段：齿轮轴 下段()内：圆轴 |
输出功率 W |
电压 V |
频率 Hz |
电流 A |
启动转矩 mN.m |
额定转矩 mN.m |
额定转速 r/min |
运行电容 μF |
|
|
引出线型 尺寸① |
接线盒型 尺寸② |
||||||||
|
6IK120GU-AF (6IK120A-AF) |
6IK120GU-AFT (6lK120A-AFT) |
120 |
1ph 100 |
50 |
2.10 |
600 |
930 |
1250 |
30.0 |
|
60 |
2.50 |
750 |
1550 |
||||||
|
6IK120GU-EF (6IK120A-EF) |
6IK120GU-EFT (6IK120A-EFT) |
120 |
1ph 110 |
60 |
1.70 |
600 |
750 |
1550 |
20.0 |
|
1ph 120 |
1.80 |
||||||||
|
6IK120GU-CF (6lK120A-CF) |
6IK120GU-CFT (6IK120A-CFT) |
120 |
1ph 220 |
50 |
0.95 |
750 |
930 |
1250 |
8.0 |
|
1ph 230 |
|||||||||
|
6IK120GU-HF (6IK120A-HF) |
6IK120GU-HFT (6lK120A-HFT) |
120 |
1ph 220 |
60 |
0.95 |
700 |
750 |
1550 |
8.0 |
|
1ph 230 |
1.00 |
||||||||
|
6IK120GU-SF (6IK120A-SF) |
6IK120GU-SFT (6IK120A-SFT) |
120 |
3ph 220 |
50 |
0.75 |
2200 |
890 |
1300 |
|
|
60 |
0.70 |
2000 |
730 |
1600 |
|||||
|
6IK120GU-S3F (6IK120A-S3F) |
6IK120GU-S3FT (6IK120A-S3FT) |
120 |
3ph 380 |
50 |
0.43 |
2200 |
890 |
1300 |
- |
|
60 |
0.40 |
2000 |
730 |
1600 |
|||||
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
40 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
|
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
41 |
37 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
|
|
6IK120GU-AF□ 6IK120GU-CF□ |
6GU□K |
50Hz |
2.30 |
2.70 |
3.80 |
4.50 |
5.60 |
6.80 |
6.68 |
8.50 |
0.2 |
12.2 |
12.0 |
15.3 |
18.4 |
22.1 |
24.0 |
30.7 |
36.8 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
|
23.4 |
27.5 |
38.7 |
45.9 |
57.1 |
69.3 |
68.2 |
86.7 |
104 |
124 |
123 |
156 |
187 |
225 |
245 |
313 |
375 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
|||
|
2.22 |
2.60 |
3.60 |
4.30 |
5.40 |
6.50 |
6.42 |
8.10 |
9.70 |
11.7 |
11.6 |
14.7 |
17.6 |
21.1 |
23.2 |
29.4 |
35.2 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
|||
|
6IK120GU-SF□ |
||||||||||||||||||||||||||
|
2.40 |
26.5 |
36.7 |
43.8 |
55.0 |
66.3 |
65.6 |
87.6 |
98.8 |
119 |
118 |
149 |
179 |
215 |
236 |
300 |
359 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
|||
|
6IK120GU-AF□ 6IK120GU-EF□ 6IK120GU-HF□ |
6GU□K |
60Hz |
1.80 |
2.20 |
3.00 |
3.60 |
4.60 |
5.50 |
5.40 |
6.80 |
8.20 |
9.80 |
9.70 |
12.4 |
14.9 |
17.8 |
19.4 |
24.8 |
29.7 |
37.1 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
|
18.3 |
22.4 |
30.6 |
36.7 |
46.9 |
56.1 |
55.0 |
69.3 |
83.6 |
100 |
99.0 |
126 |
152 |
181 |
198 |
253 |
303 |
378 |
400 |
400 |
400 |
400 |
400 |
400 |
|||
|
1.80 |
2.20 |
3.00 |
3.60 |
4.40 |
5.30 |
5.20 |
6.70 |
8.00 |
9.60 |
9.40 |
12.0 |
14.5 |
17.3 |
18.8 |
24.1 |
28.9 |
36.1 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
|||
|
6IK120GU-SF□ |
18.3 |
22.4 |
30.6 |
36.7 |
44.8 |
54.0 |
53.3 |
68.3 |
81.6 |
97.9 |
95.9 |
122 |
148 |
176 |
192 |
245 |
295 |
368 |
400 |
400 |
400 |
400 |
400 |
400 |
||
