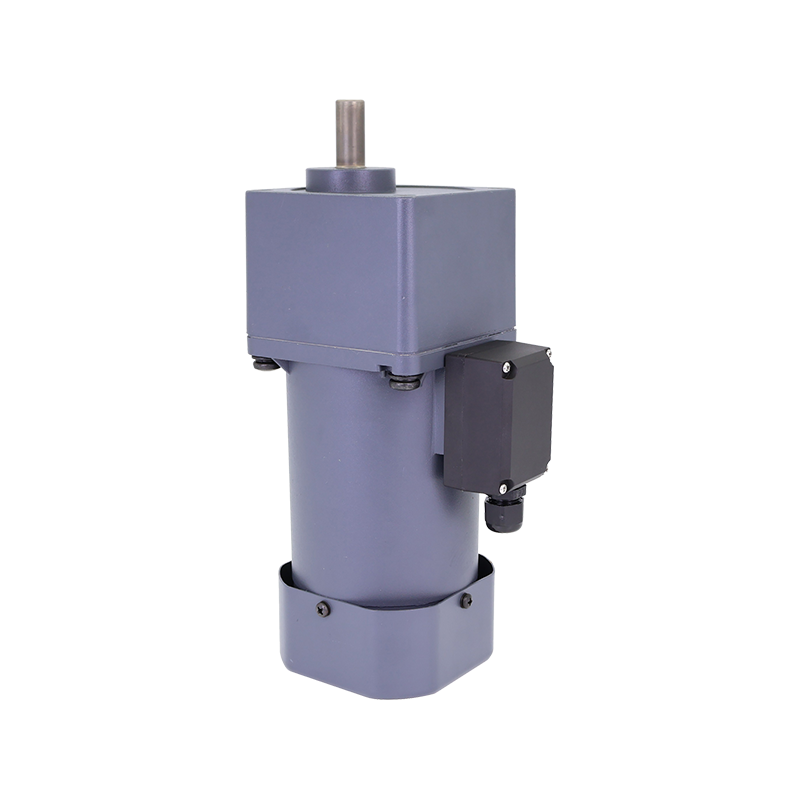

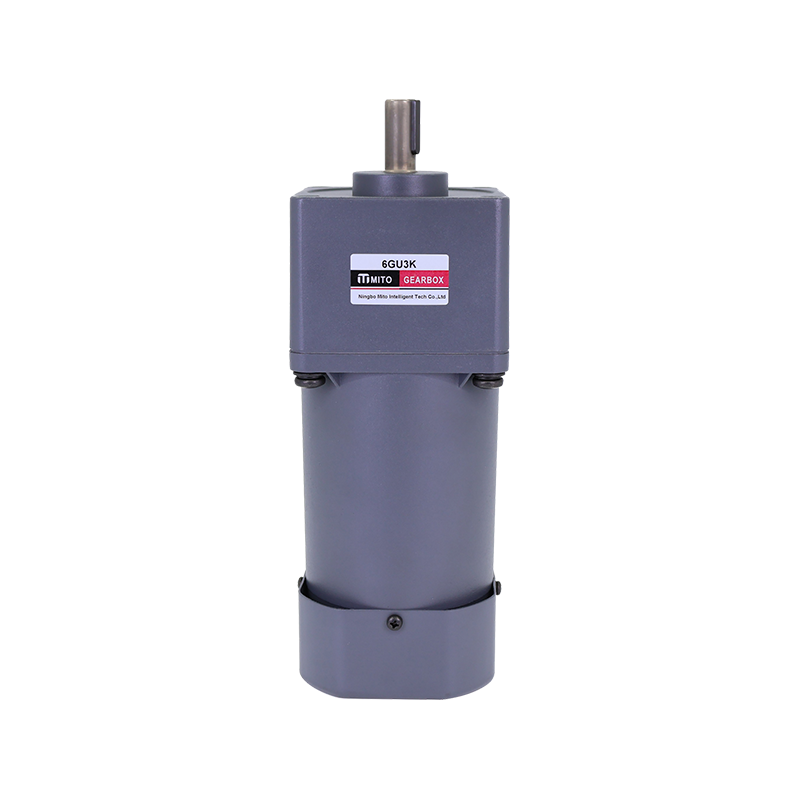

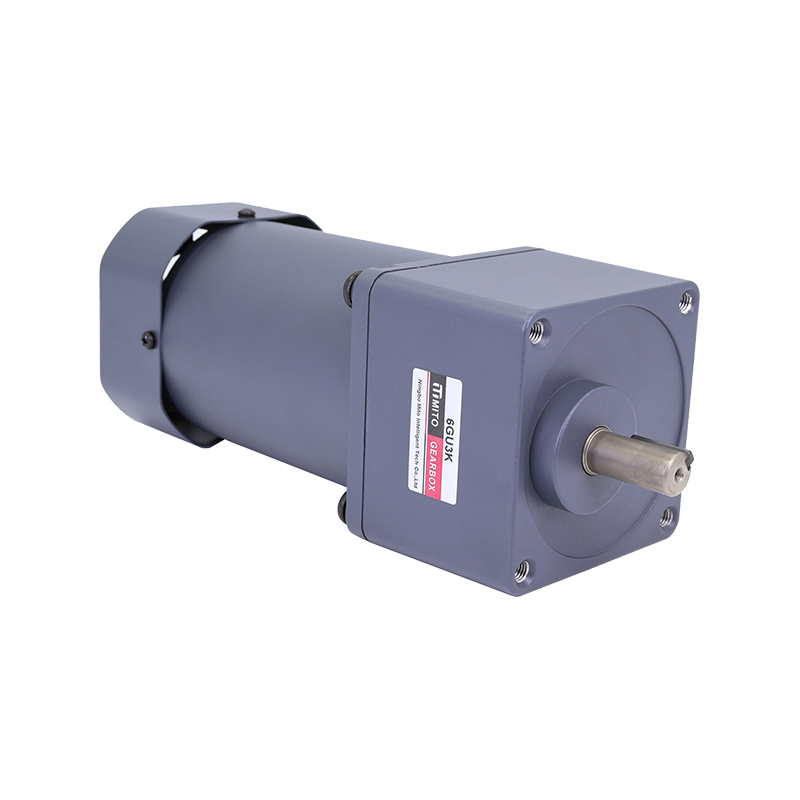

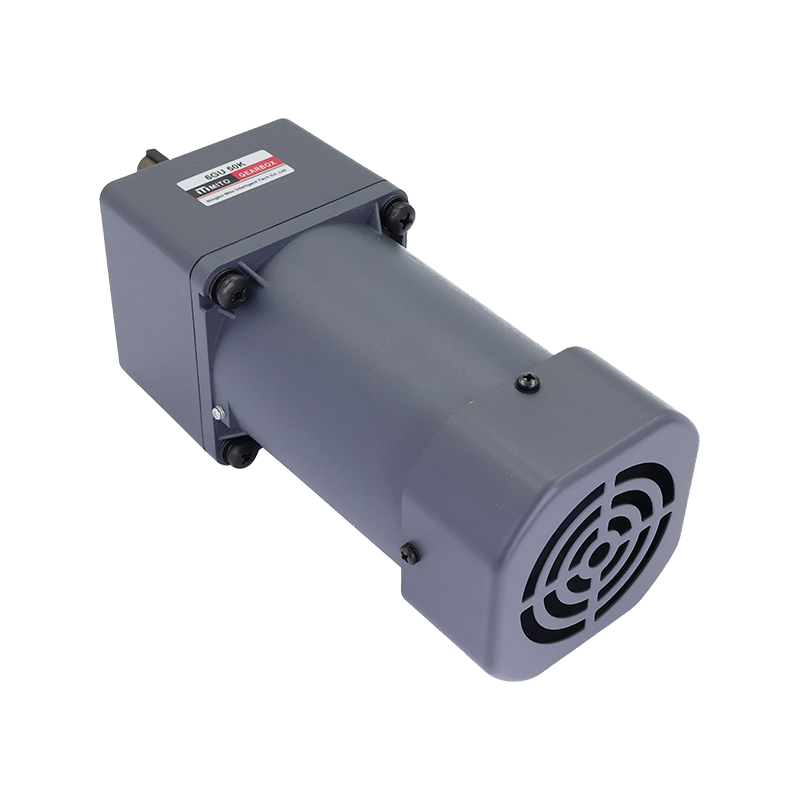

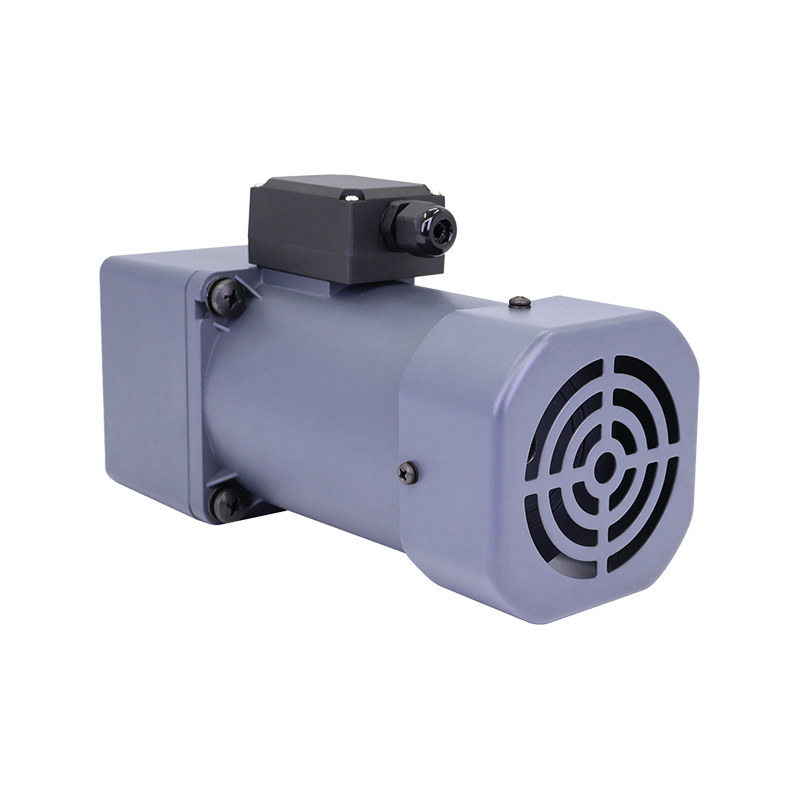

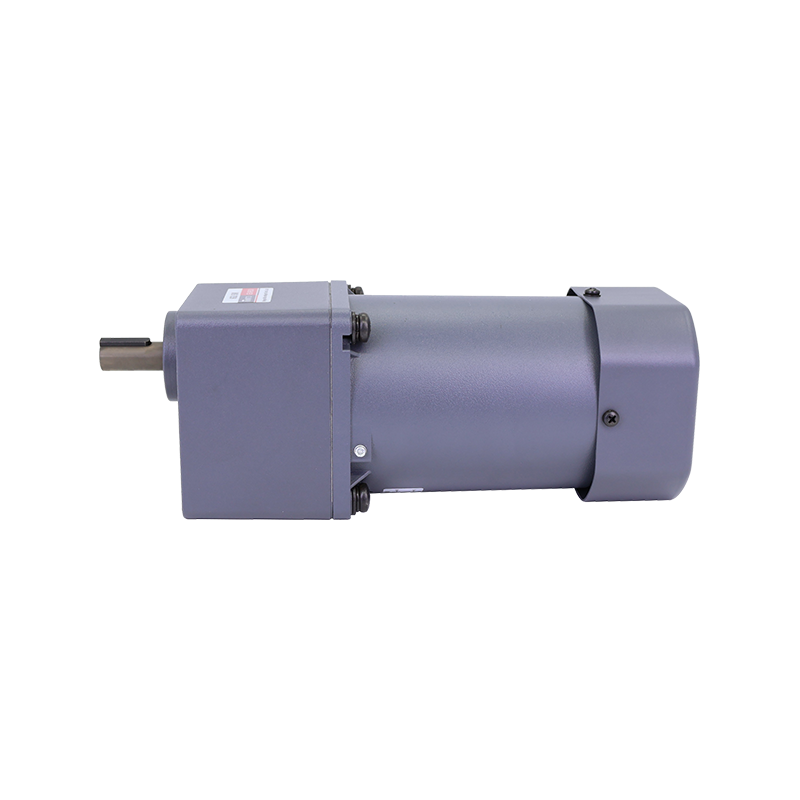

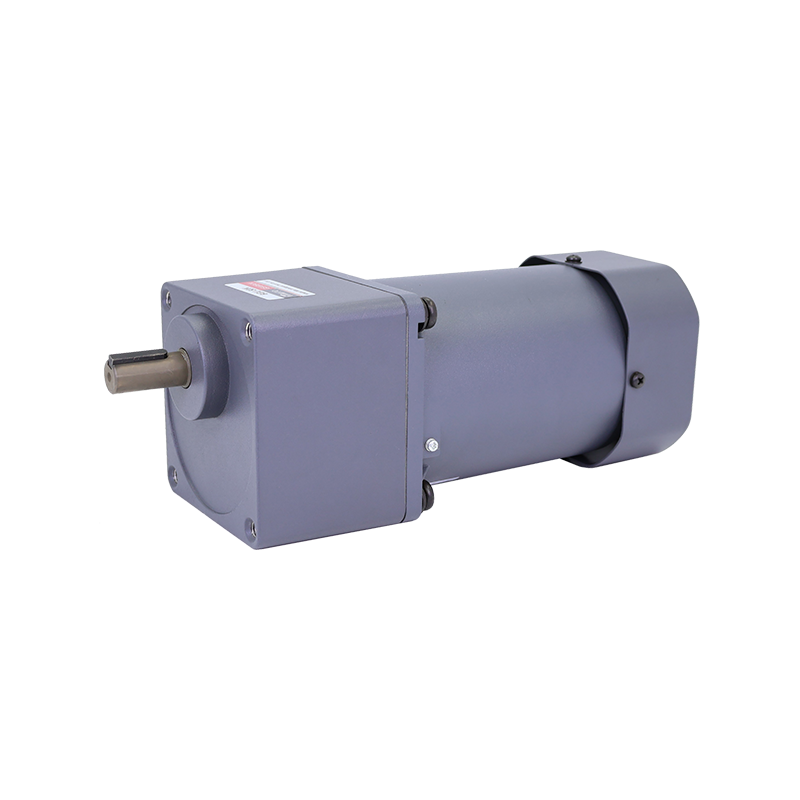

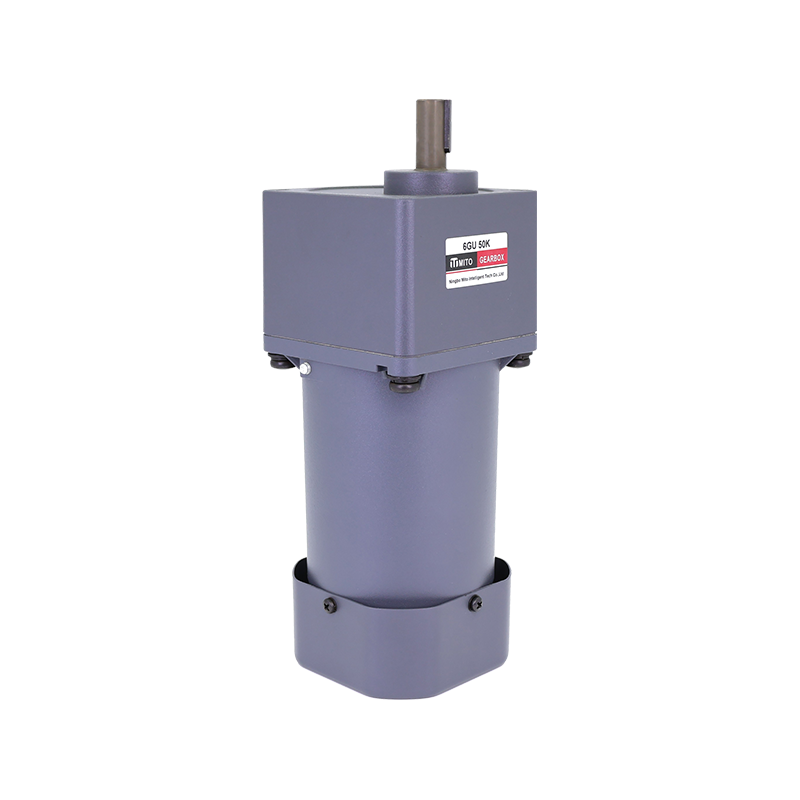

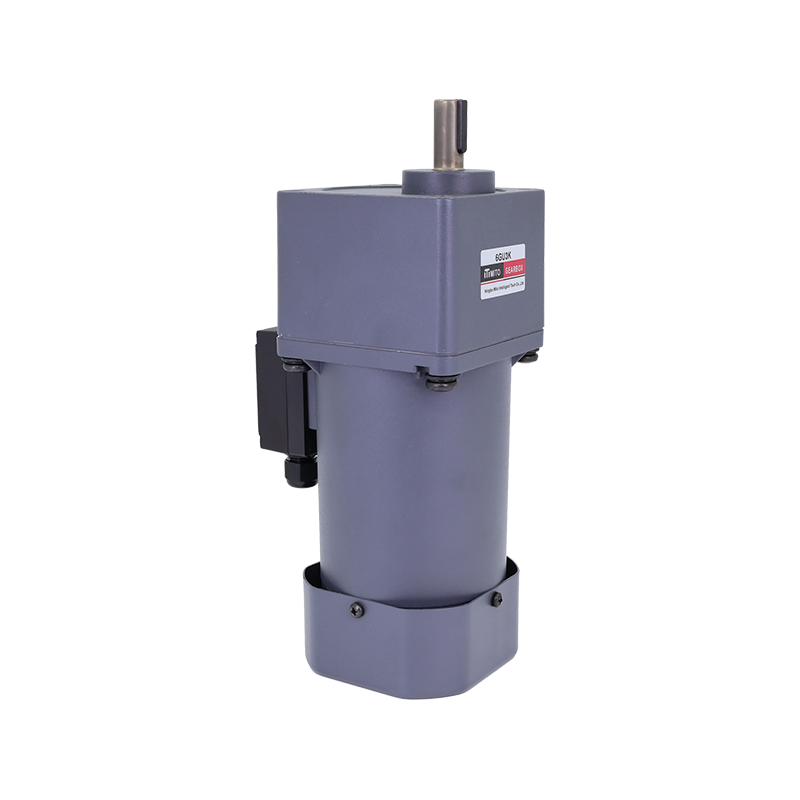

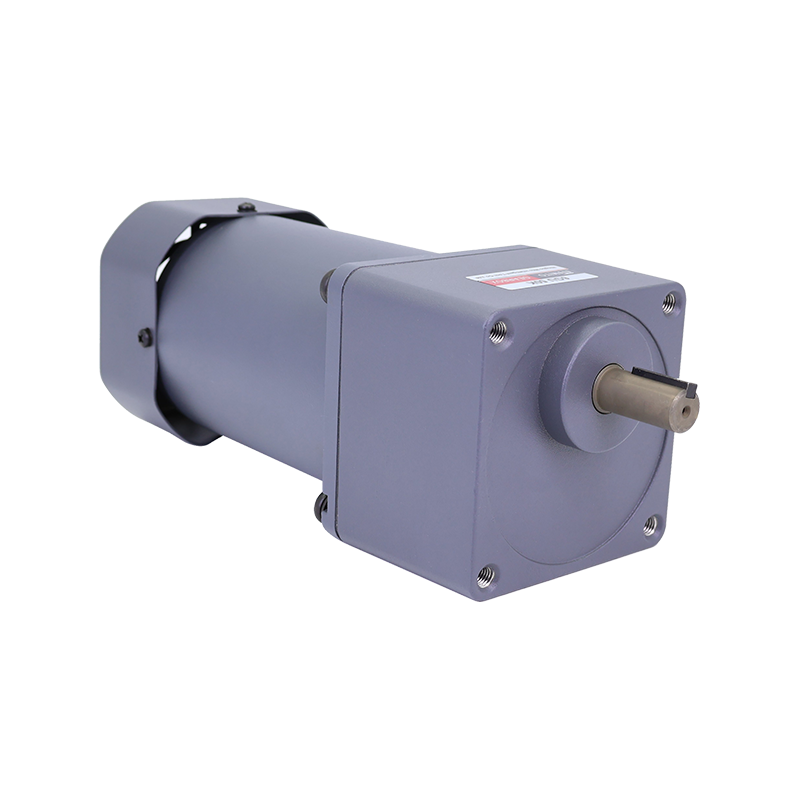

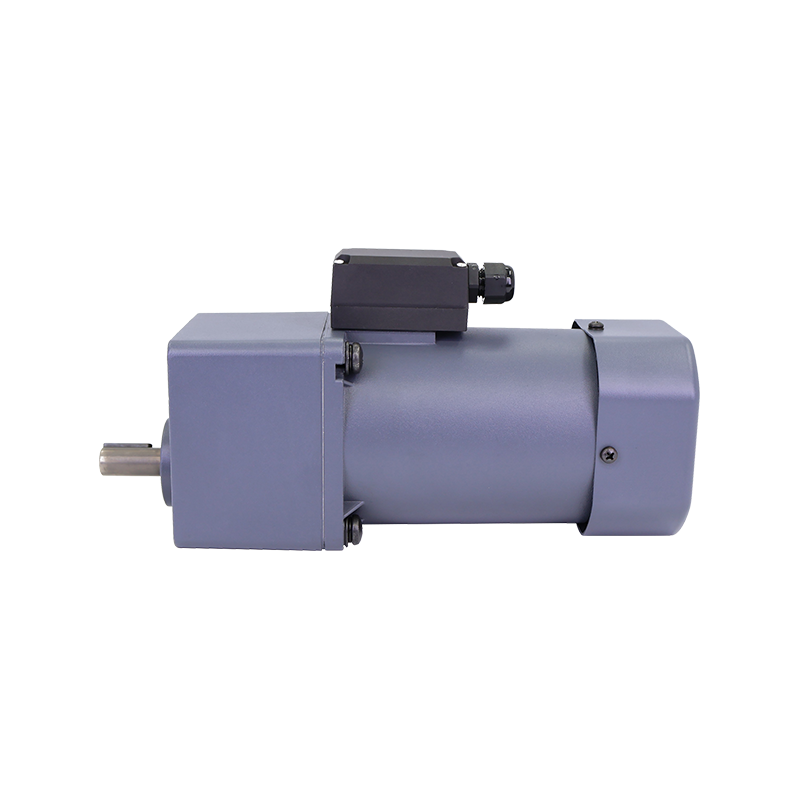

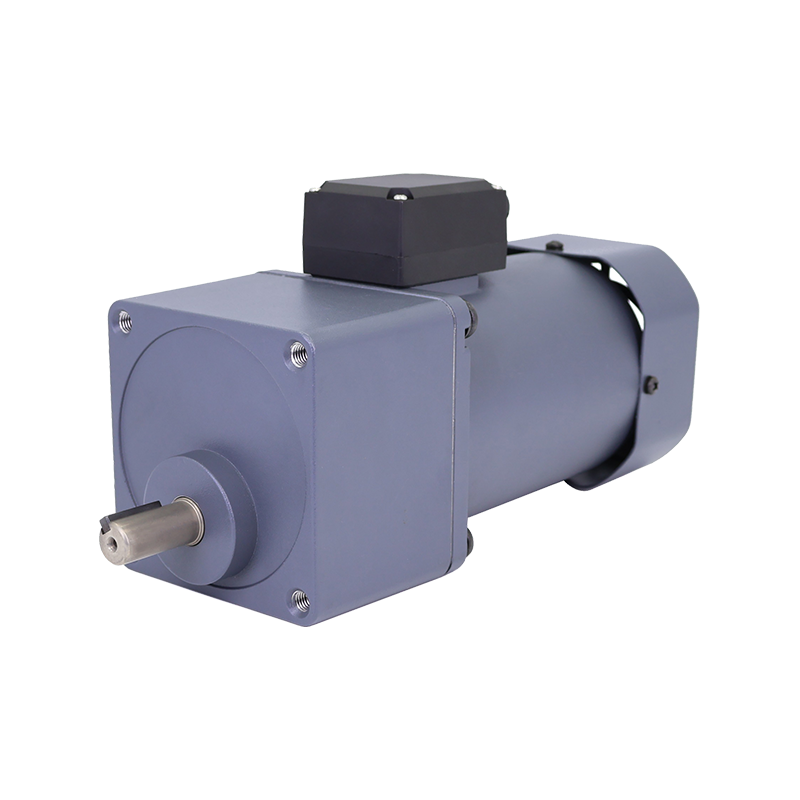

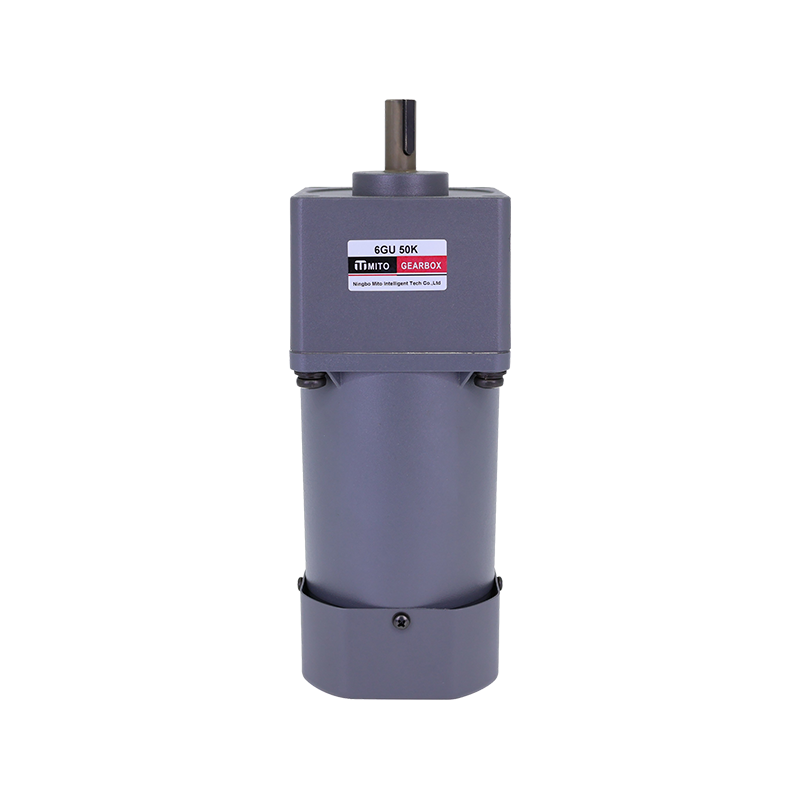

电机类型：6IK
功率：140W
电压： 110-380V
变速箱传动比： 3-200K
| 型号 ·类型 上段：齿轮轴型 下段()内：光轴 |
输出功率 W |
电压 V |
频率 Hz |
电流 A |
启动转矩 mN.m |
额定转矩 mN.m |
额定转速 r/min |
运行电容 μF |
|

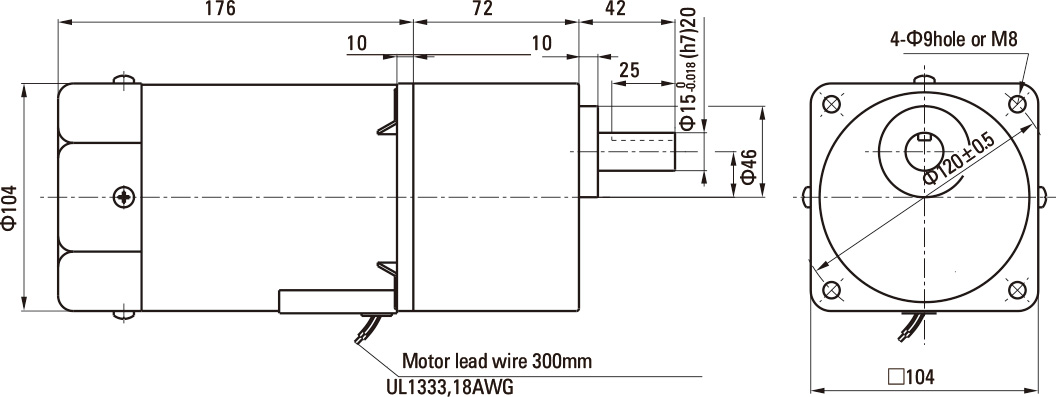

| 引出线型 尺寸① |
接线盒型 尺寸② |
||||||||
| 6IK140GU-AF (6IK140A-AF) |
6IK140GU-AFT (6lIK140A-AFT) |
140 | 1ph 100 | 50 | 2.70 | 700 | 1080 | 1250 | 35.0 |
| 60 | 3.00 | 870 | 1550 | ||||||
| 6IK140GU-EF (6IK140A-EF) |
6IK140GU-EFT (6lIK140A-EFT) |
140 | 1ph 110 | 60 | 1.80 | 700 | 850 | 1600 | 25.0 |
| 1ph 120 | 1.95 | ||||||||
| 6IK140GU-CF (6lK140A-CF) |
6IK140GU-CFT (6IK140A-CFT) |
140 | 1ph 220 | 50 | 1.05 | 850 | 1040 | 1350 | 10.0 |
| 1ph 230 | 1.15 | ||||||||
| 6IK140GU-HF (6IK140A-HF) |
6IK140GU-HFT (6IK140A-HFT) |
140 | 1ph 220 | 60 | 1.05 | 750 | 850 | 1600 | 10.0 |
| 1ph 230 | 1.15 | ||||||||
| 6IK140GU-SF (6IK140A-SF) |
6IK140GU-SFT (6lK140A-SFT) |
140 | 3ph 220 | 50 | 0.85 | 2700 | 1080 | 1250 | |
| 60 | 0.75 | 2200 | 870 | 1550 | |||||
| 6IK140GU-SF (6IK140A-S3F) |
6IK140GU-SFT (6IK140A-S3FT) |
140 | 3ph 380 | 50 | 0.49 | 2700 | 1080 | 1250 | |
| 60 | 0.43 | 2200 | 870 | 1550 | |||||
| 类型 电动机/减速机 |
减速比 | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| 转速 r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 41 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 6IK140GU-AF□ 6IK140GU-CF□ |
6GU□K | 50Hz | 2.60 | 3.10 | 4.40 | 5.20 | 6.60 | 7.90 | 7.80 | 9.90 | 11.8 | 14.2 | 14.0 | 17.8 | 21.4 | 25.7 | 28.0 | 35.6 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 |
| 26.5 | 31.6 | 44.8 | 53.0 | 67.3 | 80.6 | 79.6 | 101 | 120 | 144 | 143 | 181 | 218 | 262 | 286 | 363 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |||
| 2.50 | 3.00 | 4.20 | 5.10 | 6.30 | 7.60 | 7.20 | 9.50 | 11.4 | 13.7 | 13.0 | 17.2 | 20.6 | 24.7 | 26.0 | 34.3 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | |||
| 6IK140GU-SF□ | 25.5 | 30.6 | 42.8 | 52.0 | 63.2 | 77.5 | 73.6 | 96.9 | 116 | 139 | 133 | 175 | 210 | 252 | 265 | 349 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | ||
| 6IK140GU-AF□ 6IK140GU-SF□ 61K140GU-EF□ |
6GU□K | 60Hz | 2.10 | 2.50 | 3.50 | 4.20 | 5.30 | 6.30 | 6.30 | 7.90 | 9.50 | 11.4 | 11.3 | 14.4 | 17.2 | 20.7 | 22.6 | 28.7 | 34.5 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 |
| 21.4 | 25.5 | 35.7 | 42.8 | 54.0 | 64.2 | 64.2 | 80.6 | 96.9 | 116 | 115 | 147 | 175 | 211 | 231 | 292 | 352 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |||
| 2.10 | 2.50 | 3.40 | 4.10 | 5.20 | 6.20 | 6.10 | 7.80 | 9.30 | 11.2 | 11.0 | 12.0 | 16.8 | 20.2 | 22.0 | 28.0 | 33.7 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | |||
| 6IK140GU-HF□ | 21.4 | 25.5 | 34.6 | 41.8 | 53.0 | 63.2 | 62.2 | 79.5 | 94.8 | 114 | 112 | 122 | 171 | 206 | 224 | 285 | 343 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | ||
