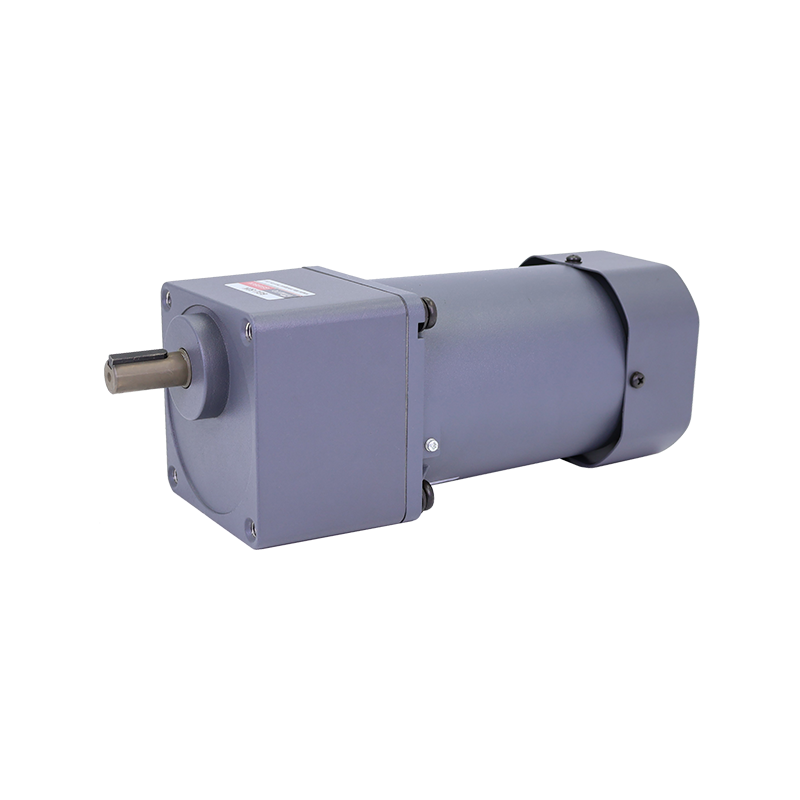

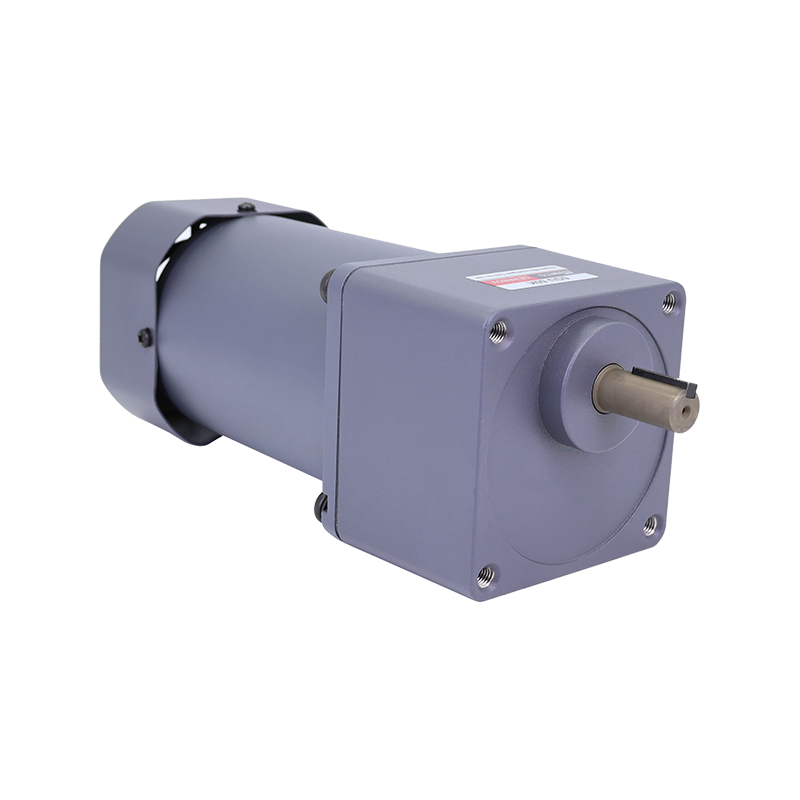

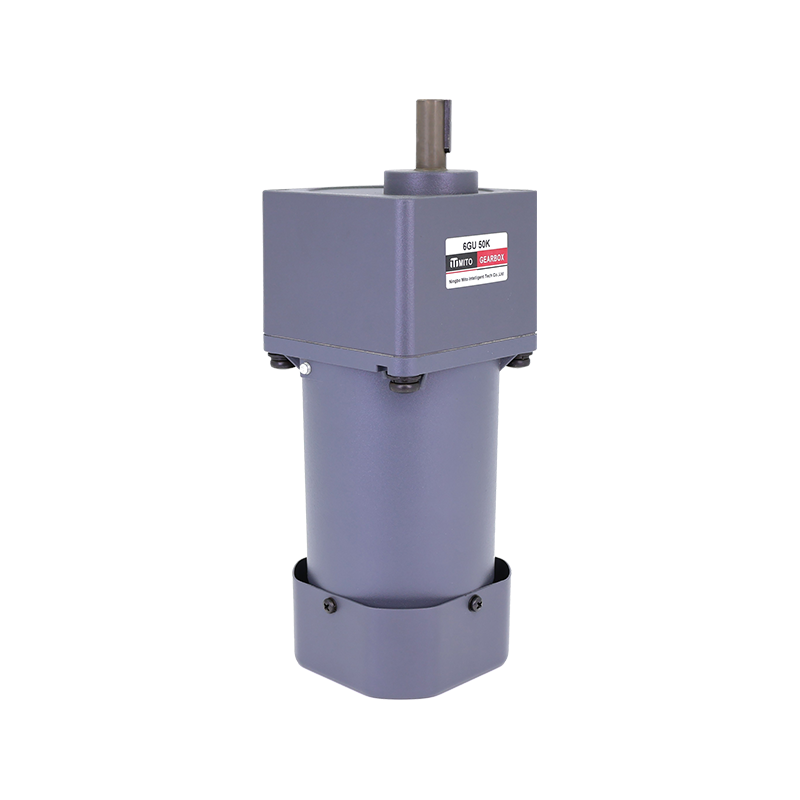

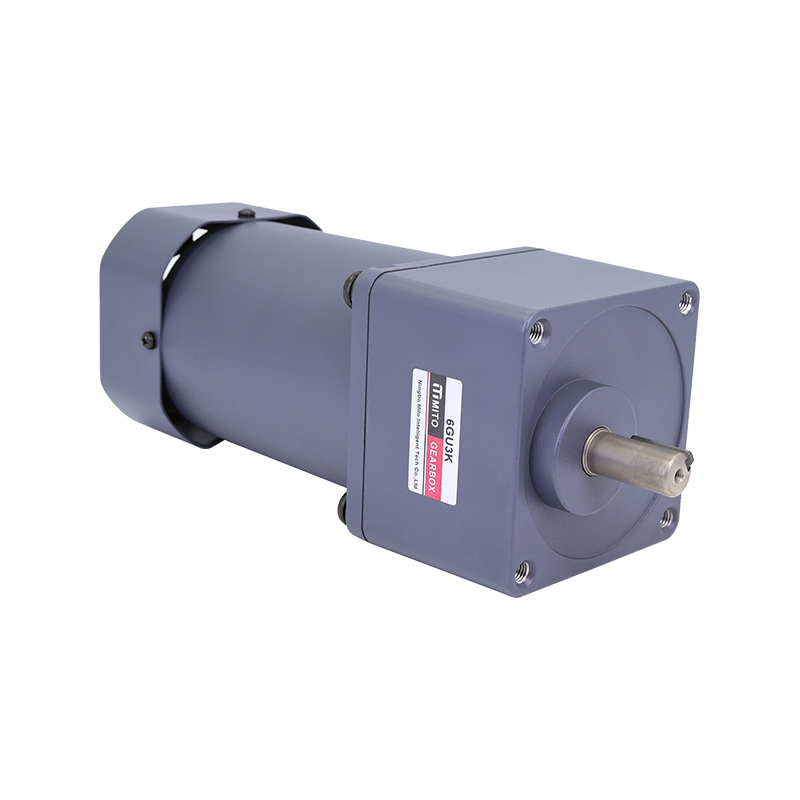

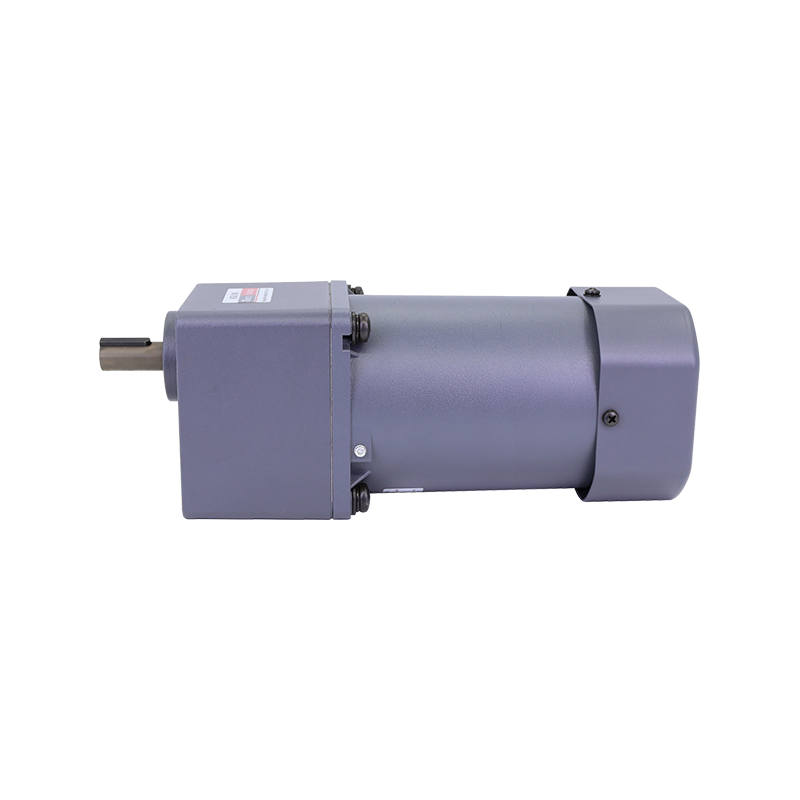

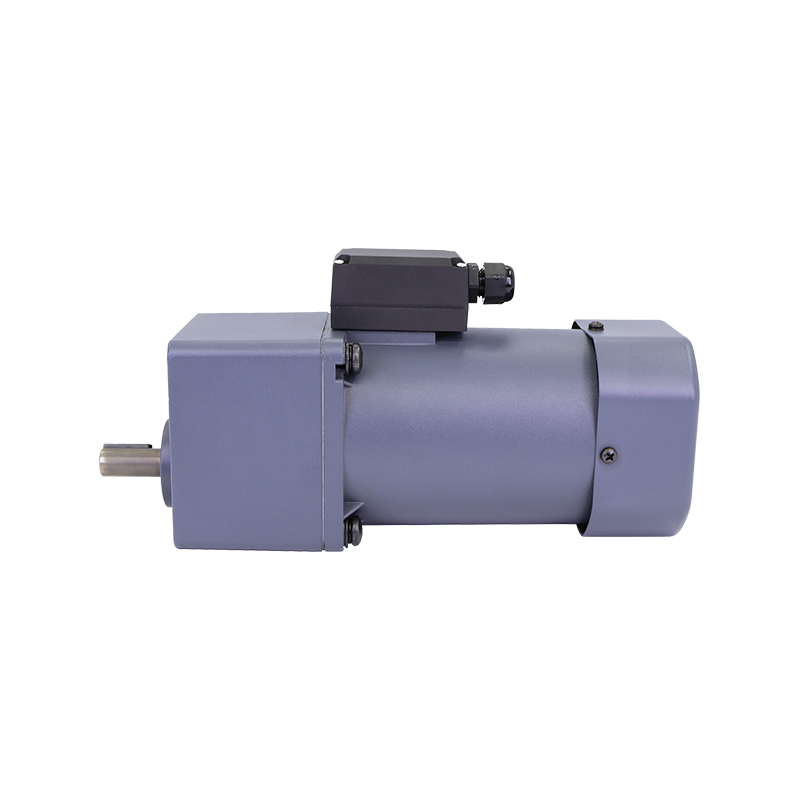

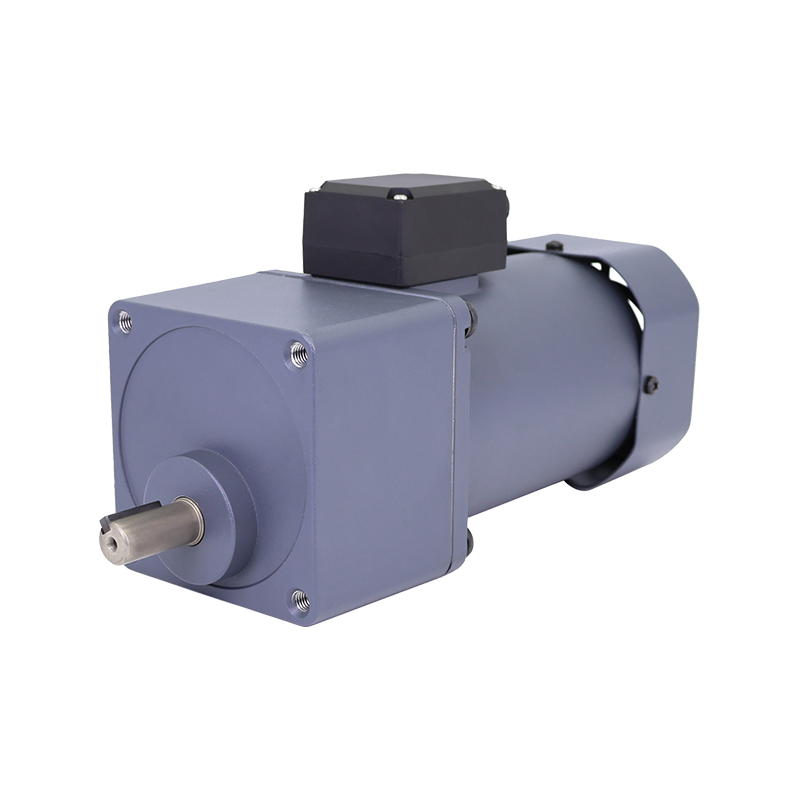

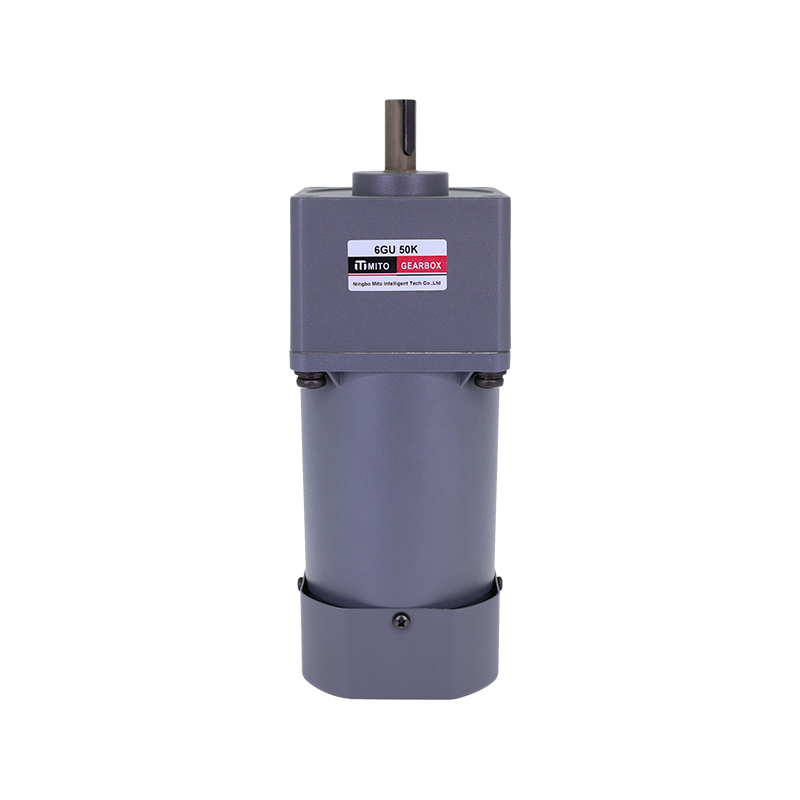

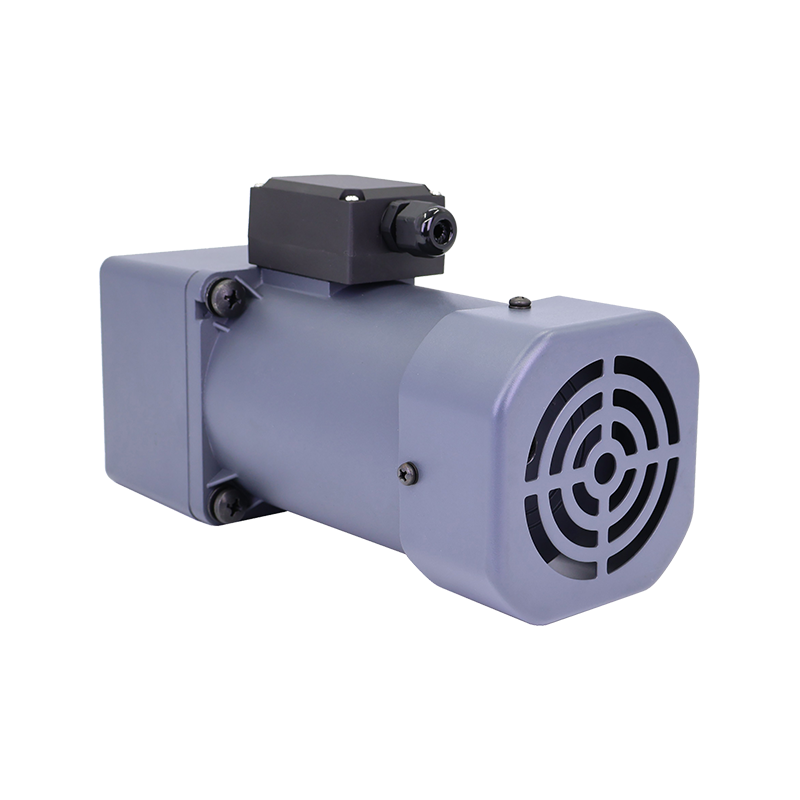

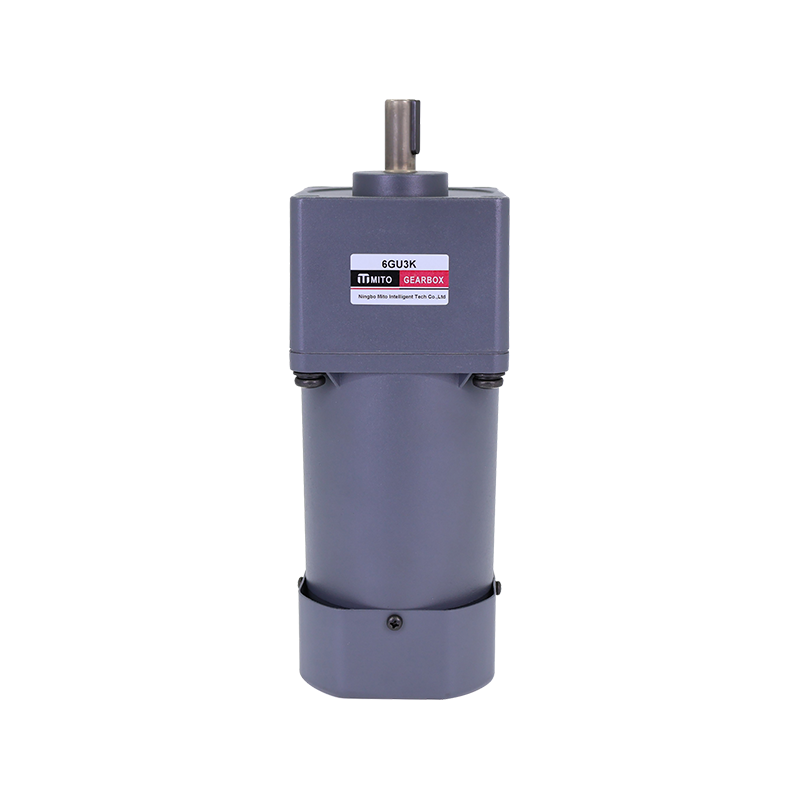

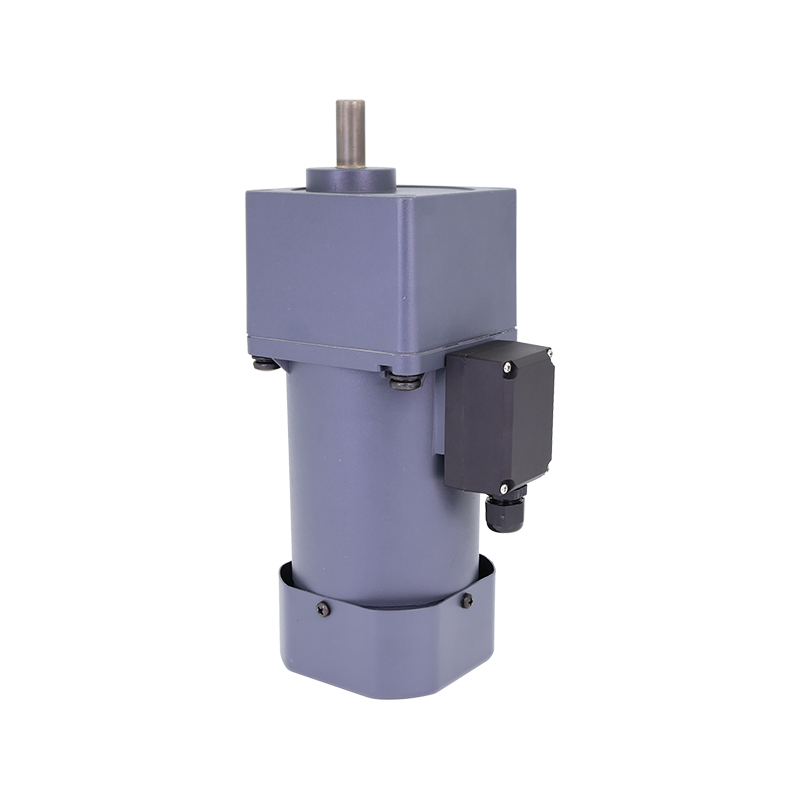

电机类型：6IK
功率：200W
电压： 110-380V
变速箱传动比： 3-200K
| 型号 ·类型 上段：齿轮轴 下段()内：圆轴 |
输出功率 W |
电压 V |
频率 Hz |
电流 A |
启动转矩 mN.m |
额定转矩 mN.m |
额定转速 r/min |
运行电容 μF |
|

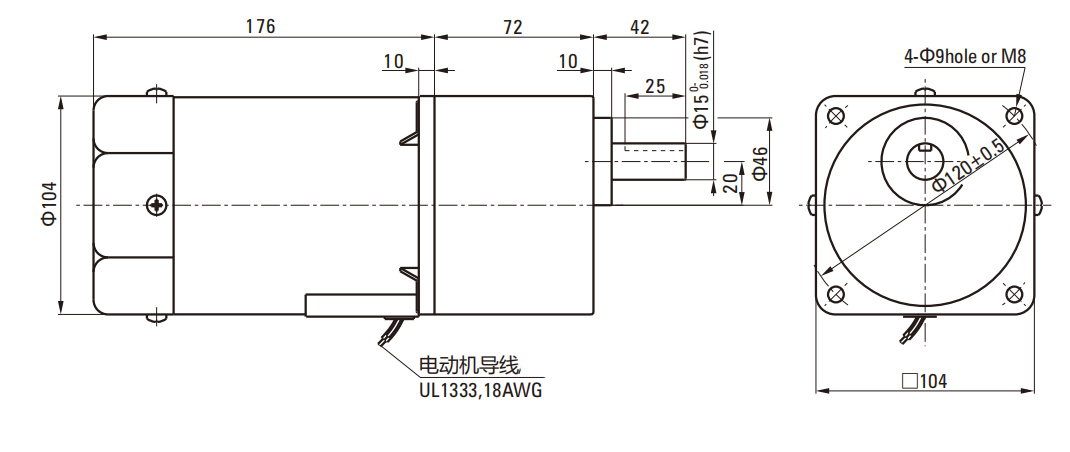

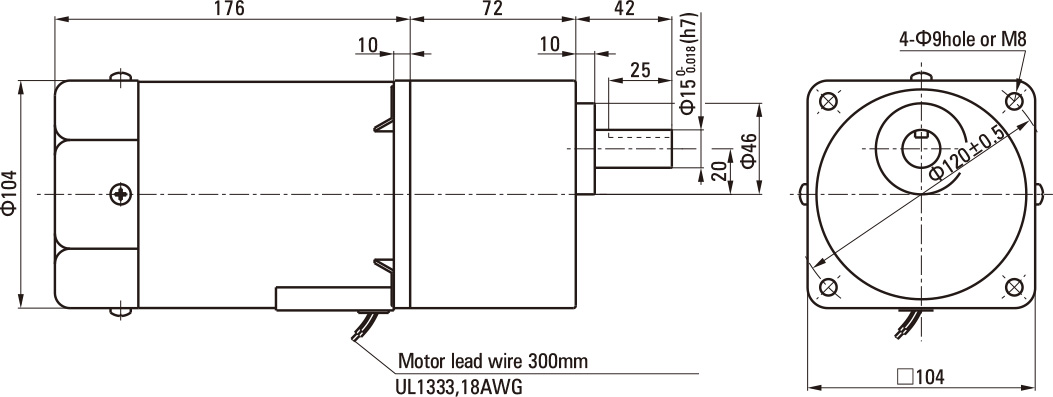

| 引出线型 尺寸① |

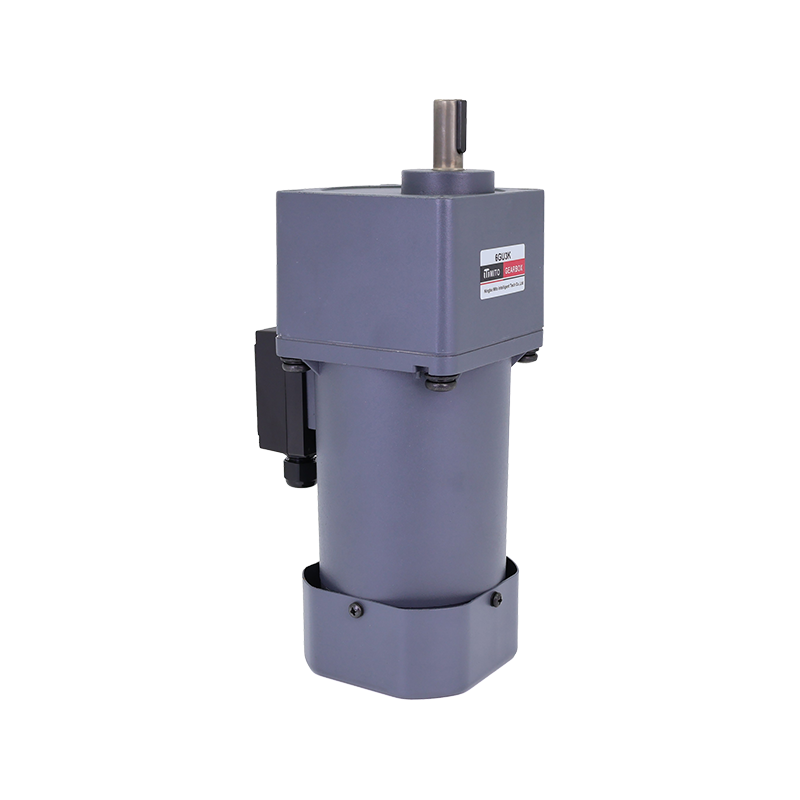

接线盒型 尺寸② |
||||||||
| 6IK200GU-AF (6IK200A-AF) |
6IK200GU-AFT (6IK200A-AFT) |
200 | 1ph 100 | 50 | 3.20 | 900 | 1520 | 1250 | 45.0 |
| 60 | 3.50 | 1230 | 1550 | ||||||
| 6IK200GU-EF (6IK200A-EF) |
6IK200GU-EFT (6IK200A-EFT) |
200 | 1ph 110 | 60 | 2.75 | 850 | 1230 | 1550 | 35.0 |
| 1ph 120 | 2.65 | ||||||||
| 6IK200GU-CF (6IK200A-CF) |
6IK200GU-CFT (6IK200A-CFT) |
200 | 1ph 220 | 50 | 1.40 | 1000 | 1520 | 1250 | 10.0 |
| 1ph 230 | |||||||||
| 6IK200GU-HF (6IK200A-HF) |
6IK200GU-HFT (6IK200A-HFT) |
200 | 1ph 220 | 60 | 1.40 | 900 | 1230 | 1550 | 10.0 |
| 1ph 230 | |||||||||
| 6IK200GU-SF (6IK200A-SF) |
6IK200GU-SFT (6IK200A-SFT) |
200 | 3ph 220 | 50 | 1.20 | 3400 | 1520 | 1250 | - |
| 60 | 1.00 | 2700 | 1230 | 1550 | |||||
| 6IK200GU-S3F (6IK200A-S3F) |
6IK200GU-S3FT (6IK200A-S3FT) |
200 | 3ph 380 | 50 | 0.69 | 3400 | 1520 | 1250 | - |
| 60 | 0.58 | 2700 | 1230 | 1550 | |||||
| 类型 电动机/减速机 |
减速比 | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 | 200 | |
| 转速 r/min | 50Hz | 500 | 417 | 300 | 250 | 200 | 166 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 42 | 37 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 | 7.5 | |
| 60Hz | 600 | 500 | 360 | 300 | 240 | 200 | 180 | 144 | 120 | 100 | 90 | 72 | 60 | 50 | 45 | 36 | 30 | 24 | 20 | 18 | 15 | 12 | 10 | 9 | ||
| 6IK200GU-AF□ 6IK200GU-EF□ 6IK200GU-CF□ 6IK200GU-HF□ 6IK200GU-SF□ |
6GU□K | 50Hz | 3.71 | 4.46 | 6.19 | 7.43 | 9.28 | 11.1 | 11.9 | 3.9 | 6.7 | 20.1 | 20.8 | 25.2 | 30.3 | 36.3 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 |
| 37.9 | 45.5 | 63.1 | 75.8 | 94.7 | 114 | 121 | 142 | 171 | 205 | 212 | 257 | 309 | 370 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |||
| 60Hz | 2.99 | 3.59 | 4.99 | 5.99 | 7.49 | 8.98 | 9.70 | 11.2 | 3.5 | 16.2 | 17.2 | 20.3 | 24.4 | 29.3 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | 40.0 | ||
| 30.6 | 36.7 | 50.9 | 61.1 | 76.4 | 91.7 | 98.9 | 115 | 138 | 165 | 175 | 207 | 249 | 299 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |||
