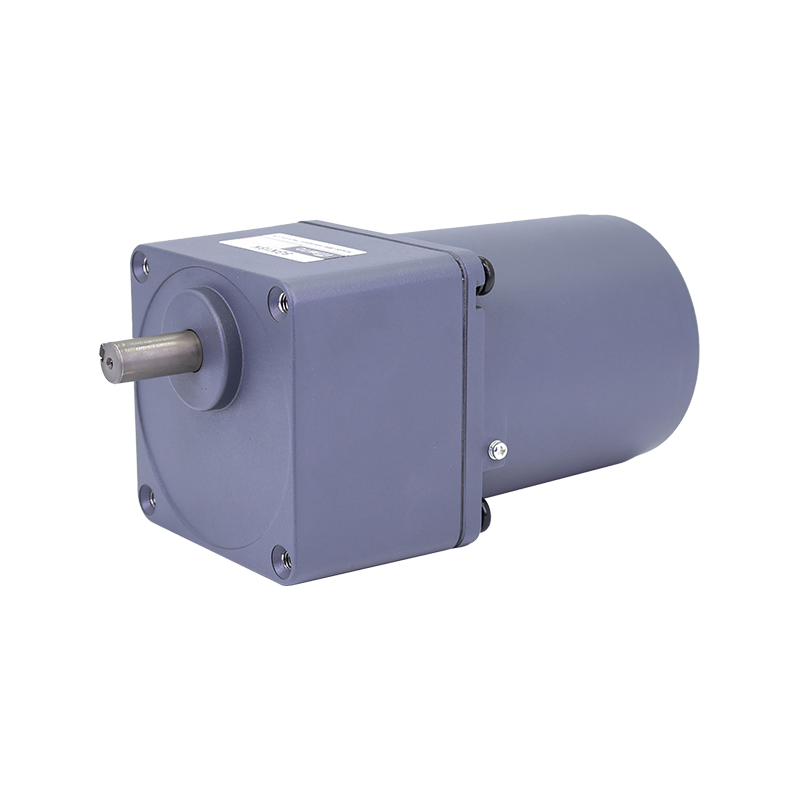

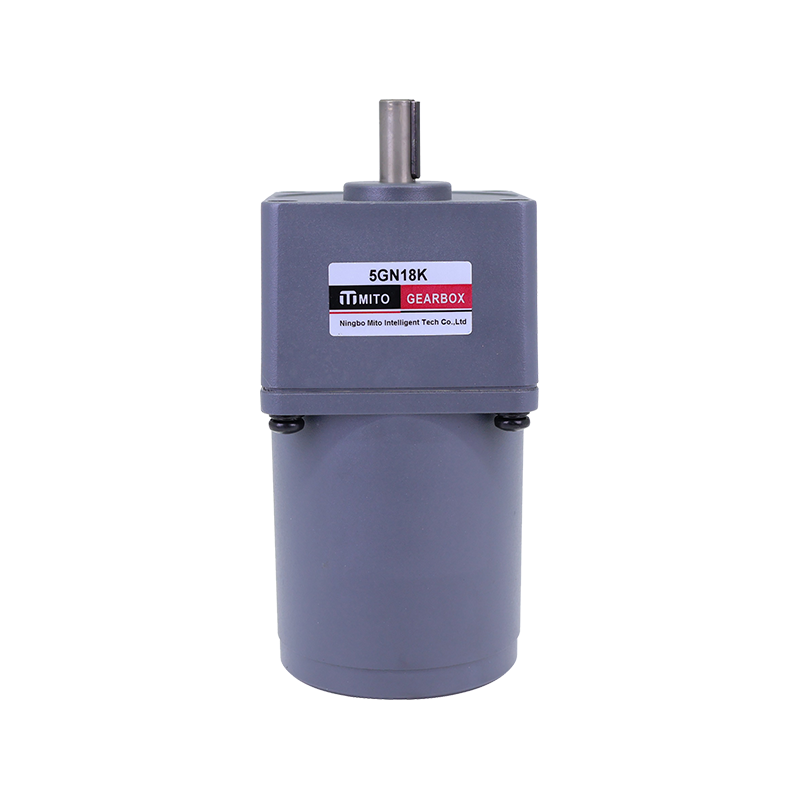

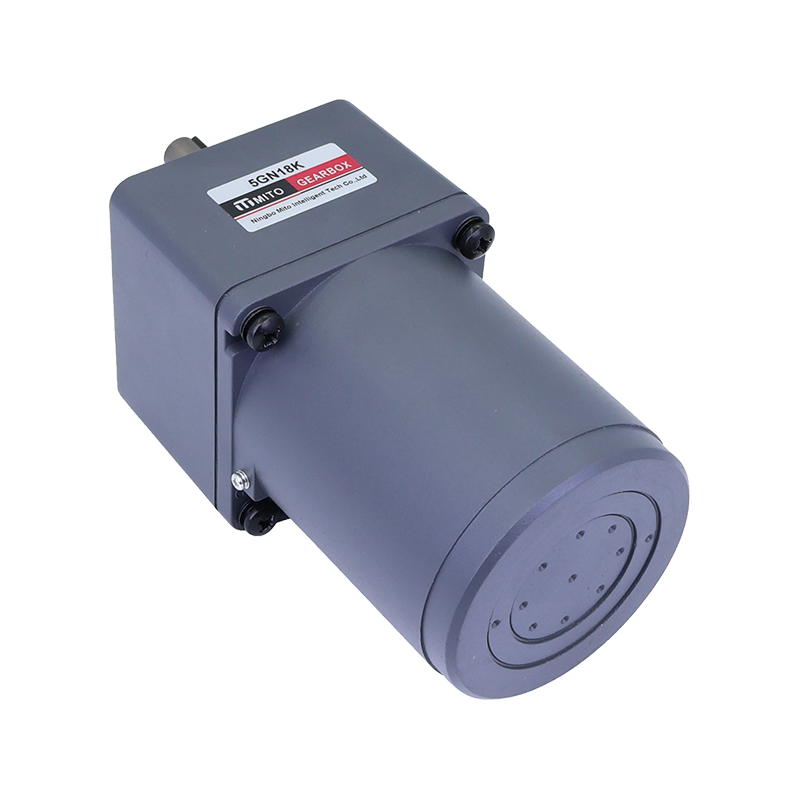

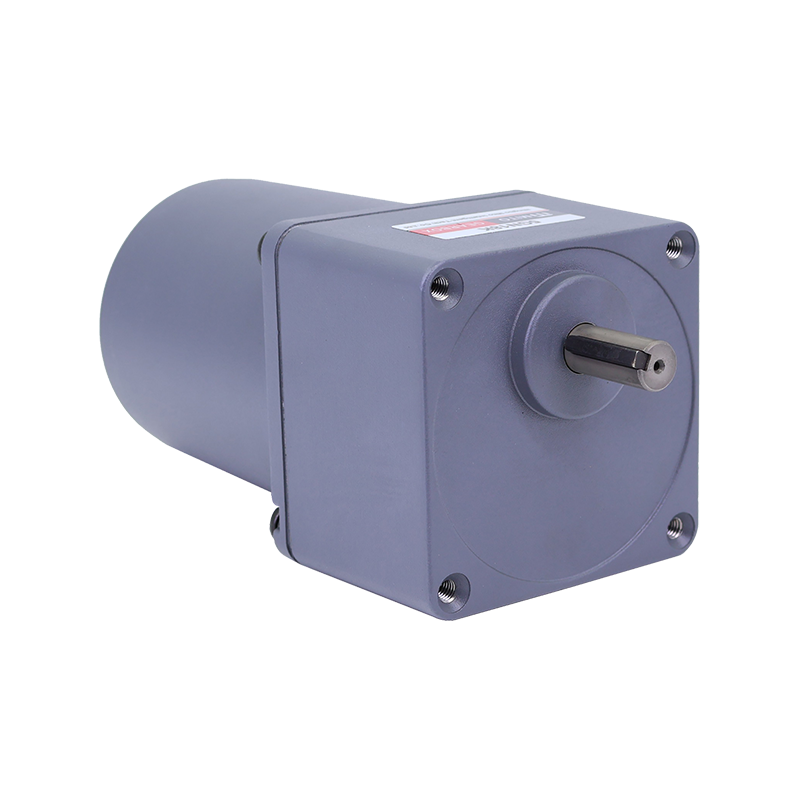

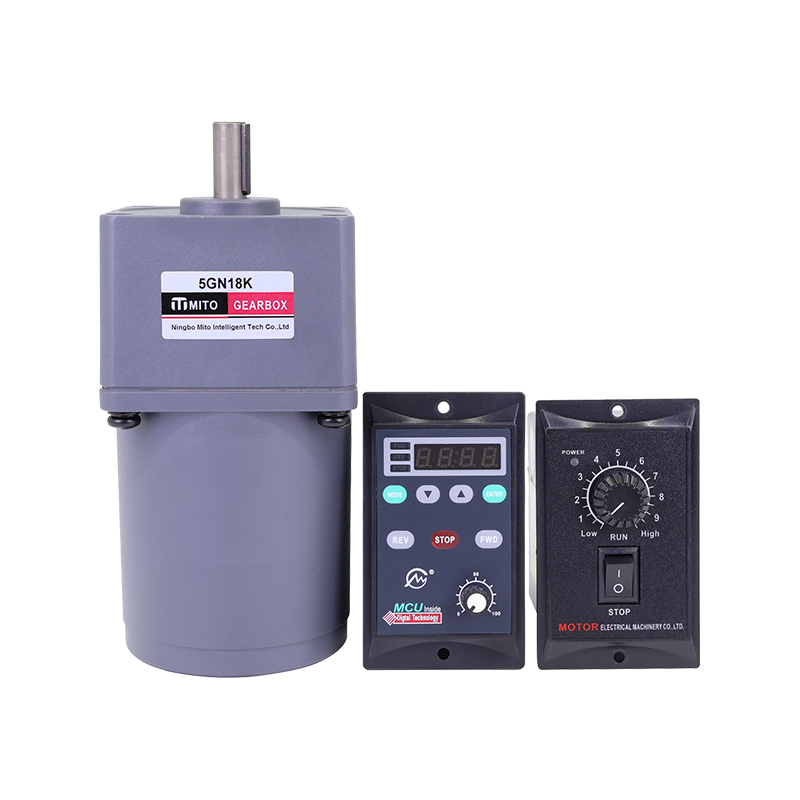

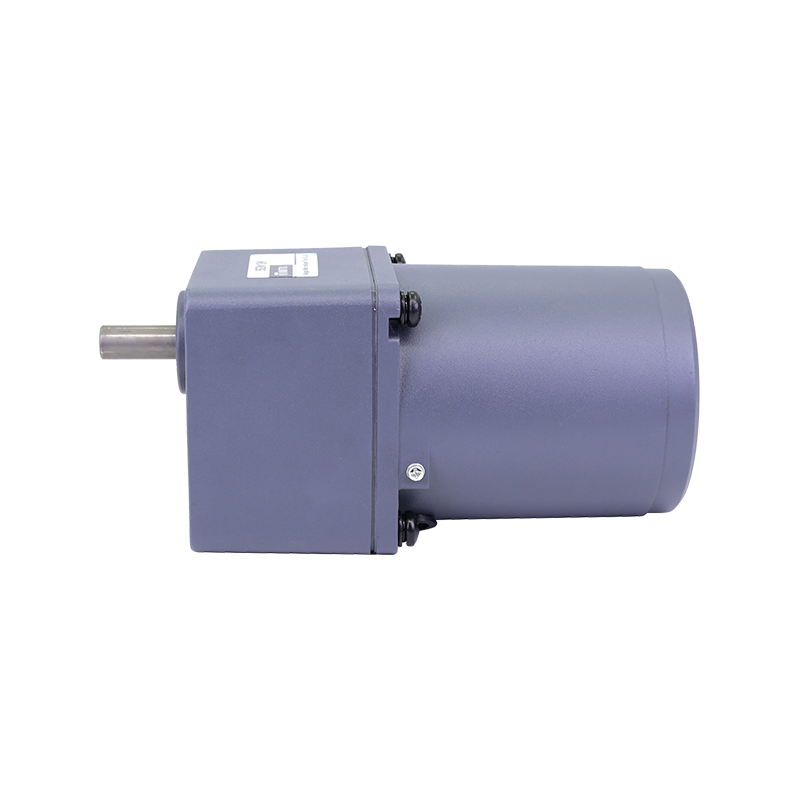

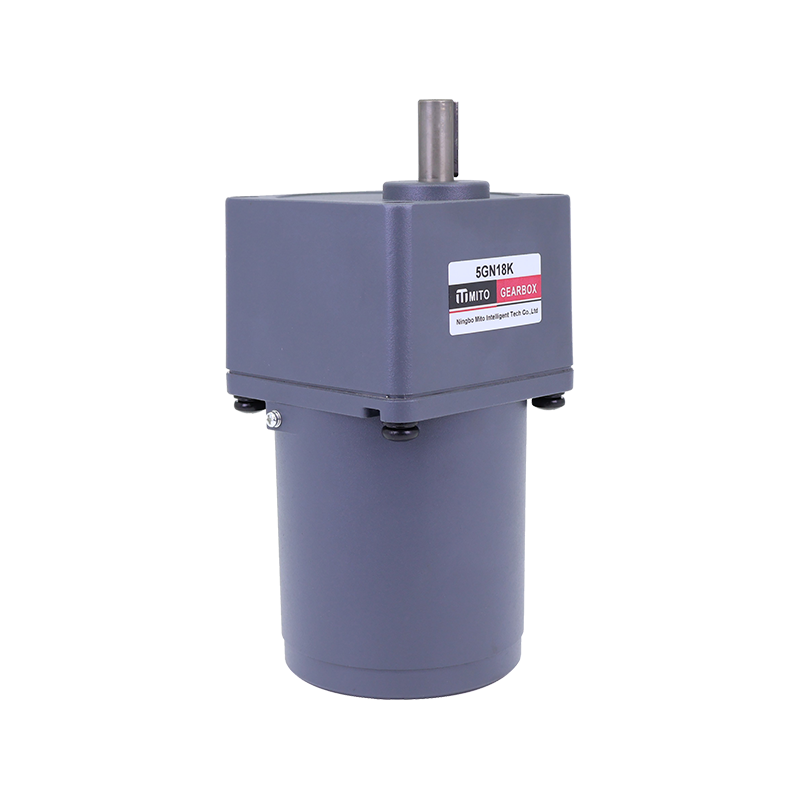

电机类型：5RK
功率：60W
电压：110-380V
变速箱传动比： 3-200K
轴类型：GN轴
|
型号 ·类型 上段：齿轮轴型 下段()内：光轴 |
输出功率 W |
电压 V |
频率 Hz |
电流 A |
启动转矩 mN.m |
额定转矩 mN.m |
额定转速 r/min |
运行电容 μF |
|
|

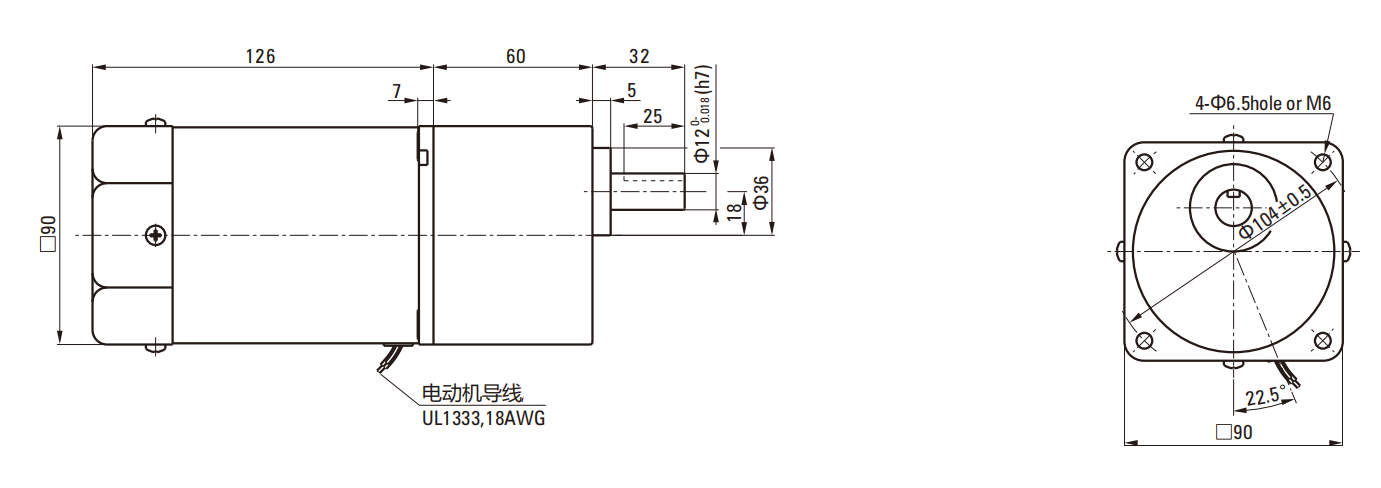

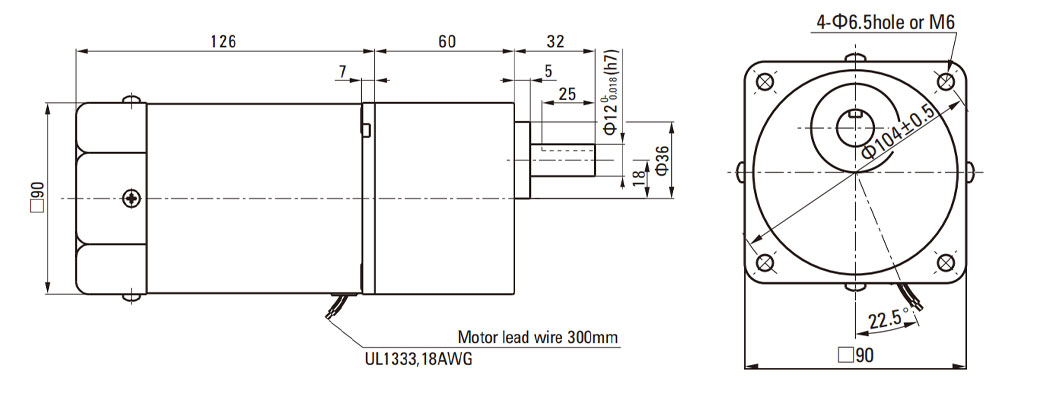

引出线型 尺寸① |
接线盒型 尺寸② |
||||||||
|
5RK60GN-AF |
5RK60GN-AFT |
60 |
1ph 100 |
50 |
1.26 |
470 |
470 |
1250 |
25.0 |
|
60 |
1.70 |
380 |
1550 |
||||||
|
5RK60GN-EF |
5RK60GN-EFT |
60 |
1ph 110 |
60 |
1.05 |
330 |
380 |
1550 |
15.0 |
|
1ph 120 |
380 |
||||||||
|
5RK60GN-CF |
5RK60GN-CFT |
60 |
1ph 220 |
50 |
0.55 |
420 |
470 |
1250 |
4.50 |
|
1ph 230 |
0.60 |
460 |
|||||||
|
5RK60GN-HF |
5RK60GN-HFT |
60 |
1ph 220 |
60 |
0.55 |
420 |
380 |
1550 |
4.50 |
|
1ph 230 |
0.60 |
460 |
|||||||
|
类型 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
40 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
|
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
41 |
37 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
|
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
45 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
9 |
||
|
5RK60GN-AF□ |
5GN□K |
50Hz |
1.10 |
1.40 |
1.90 |
2.30 |
2.90 |
3.40 |
3.57 |
4.80 |
5.70 |
6.80 |
7.03 |
8.60 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
|
11.2 |
14.2 |
19.3 |
23.4 |
29.6 |
34.7 |
36.4 |
48.9 |
58. |
69.3 |
71.7 |
87.7 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|||
|
60Hz |
0.92 |
1.10 |
1.50 |
1.80 |
2.30 |
2.80 |
2.99 |
3.80 |
4.60 |
5.50 |
5.70 |
6.90 |
8.30 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
10.0 |
||
|
9.38 |
11.2 |
15.3 |
18.3 |
23.4 |
28.5 |
30.5 |
38.7 |
46.9 |
56.1 |
58.2 |
70.1 |
84.7 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|||
