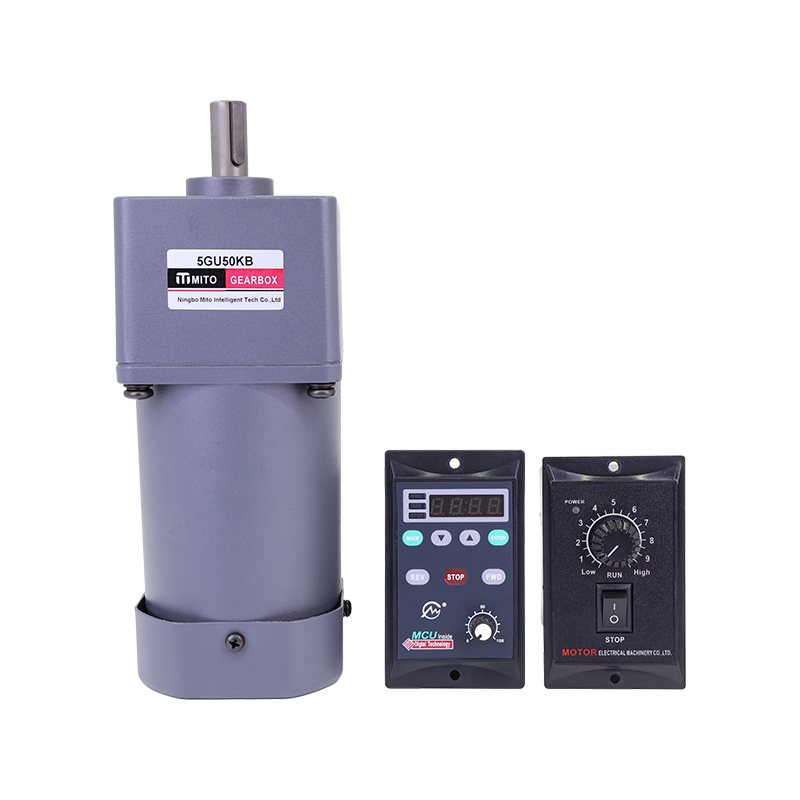

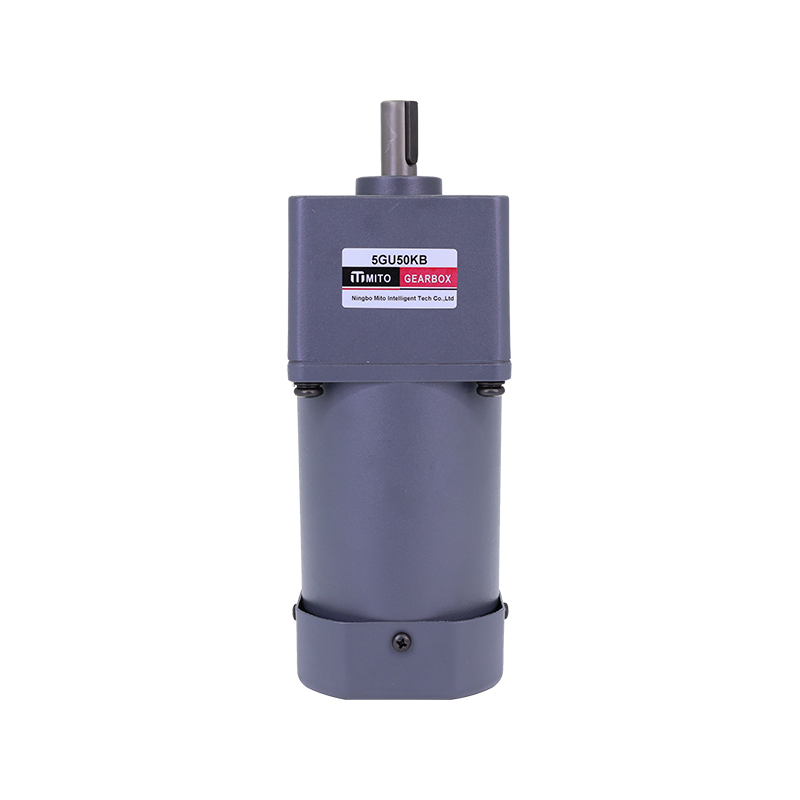

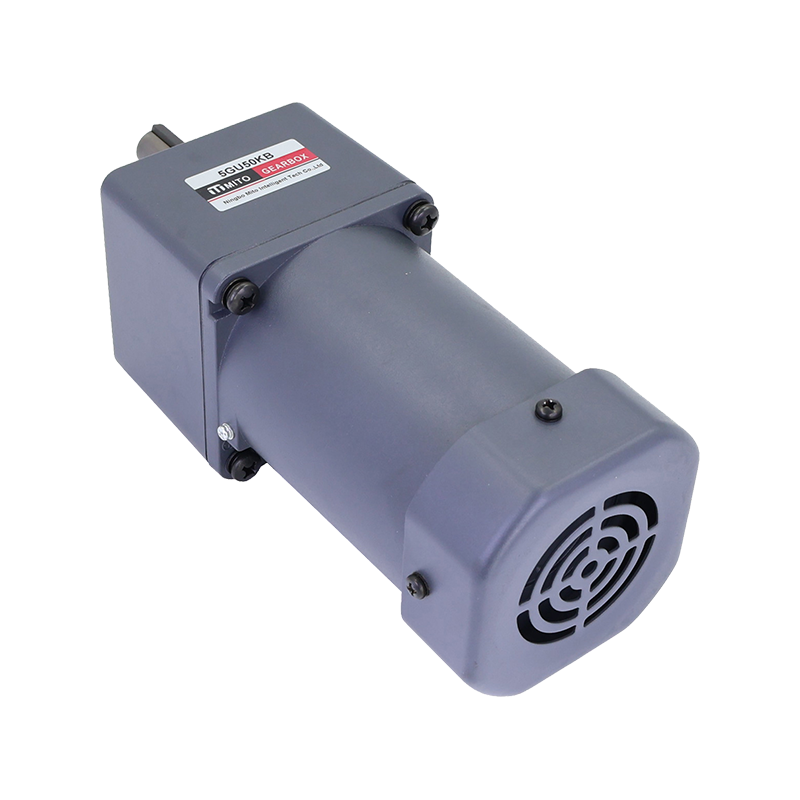

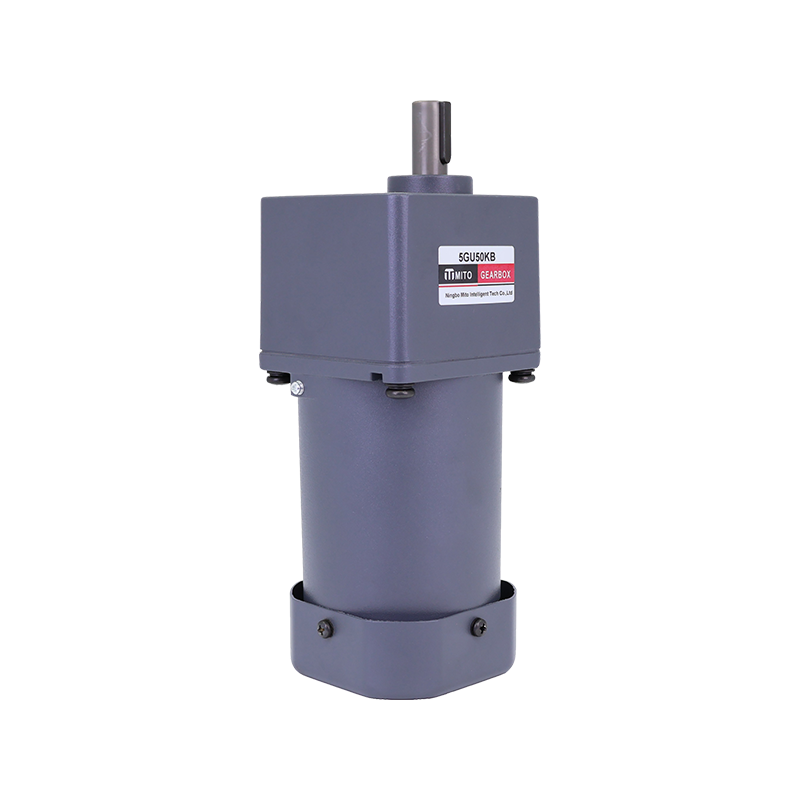

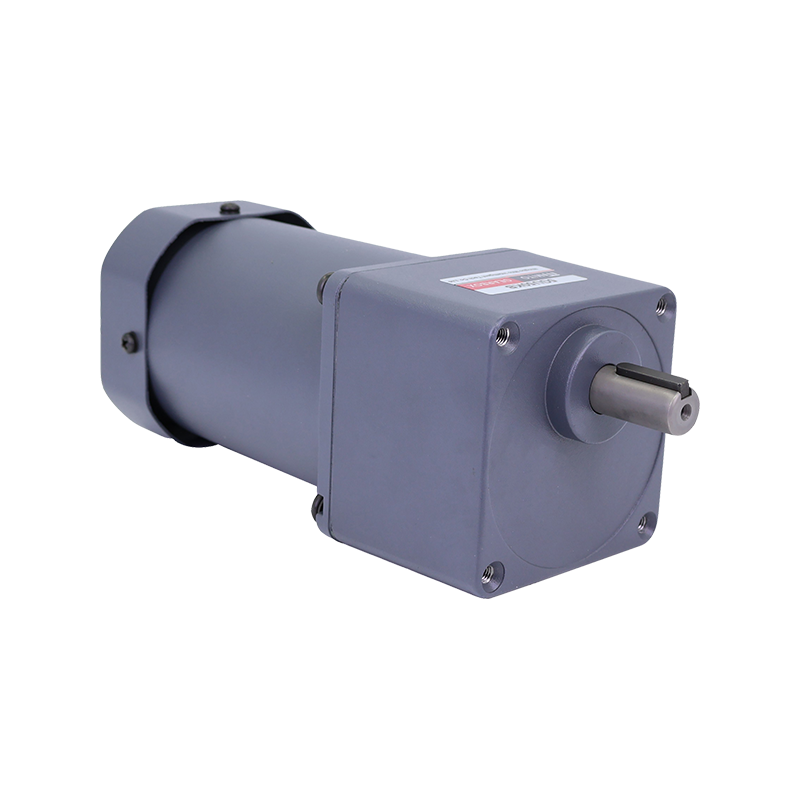

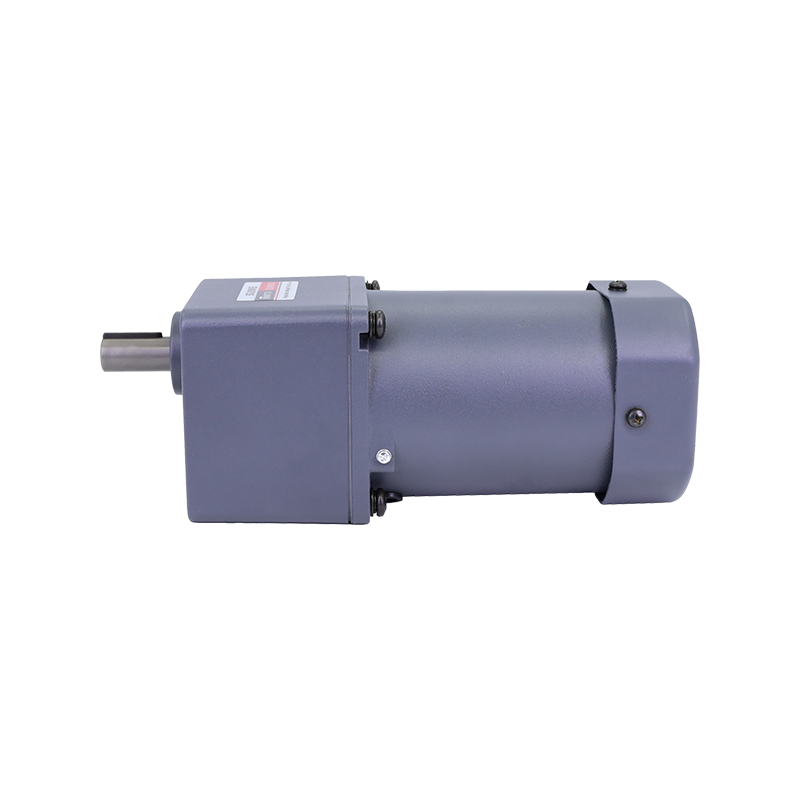

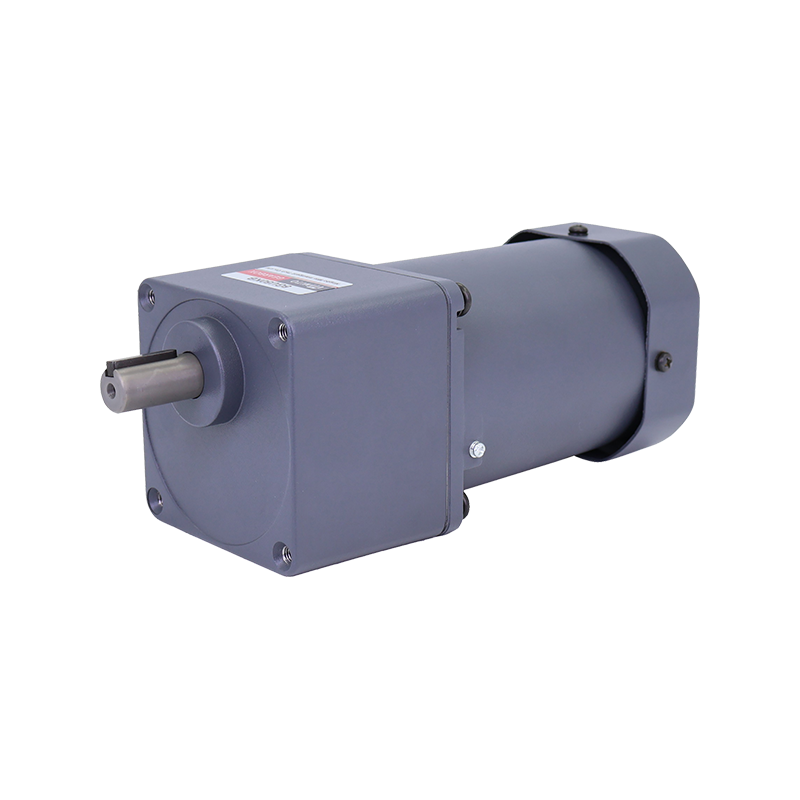

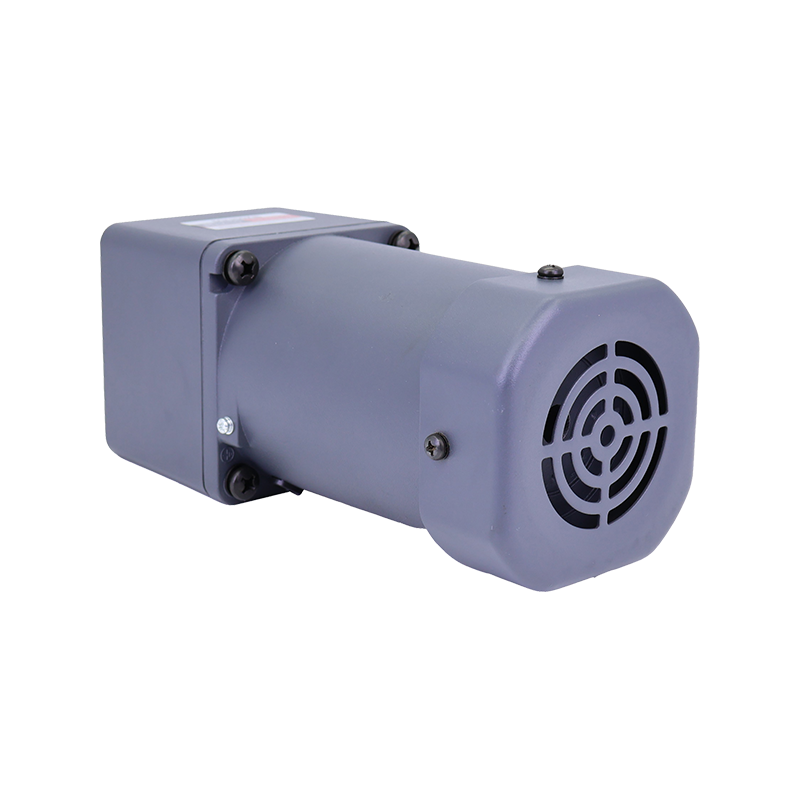

电机类型：5IK
功率：90W
电压： 110-380V
变速箱传动比： 3-200K
|
型号 ·类型 引出线型 |
输出功率 W |
电压 V |
频率 Hz |
调速范围 r/min |
容许转矩 |
启动转矩 mN.m |
电流 A |
运行电容 μF |
||
|
齿轮轴 |
圆轴 |
1200r/min mN.m |
90r/min mN.m |
|||||||
|
5IK90RGU-AF |
5IK90RA-AF |
90 |
1ph 100 |
50 |
90~1350 |
710 |
230 |
405 |
1.55 |
25.0 |
|
60 |
90~1650 |
260 |
1.85 |
|||||||
|
5IK90RGU-EF |
5IK90RA-EF |
90 |
1ph 110 |
60 |
90~1650 |
710 |
260 |
410 |
1.40 |
20.0 |
|
1ph 120 |
1.45 |
|||||||||
|
5IK90RGU-CF |
5IK90RA-CF |
90 |
1ph 220 |
50 |
90~1350 |
710 |
230 |
410 |
0.72 |
5.0 |
|
1ph 230 |
0.70 |
|||||||||
|
5IK90RGU-HF |
5IK90RA-HF |
90 |
1ph 220 |
60 |
90~1650 |
710 |
260 |
410 |
0.71 |
5.0 |
|
1ph 230 |
0.75 |
|||||||||
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
40 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
|
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
41 |
37 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
|
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
45 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
9 |
||
|
5IK90RGU-AF□ 5IK90RGU-EF□ 5IK90RGU-CF□ 5IK90RGU-HF□ |
5GU□KB 5GU□K |
50Hz |
1.70 |
2.00 |
2.80 |
3.40 |
4.30! |
5.10 |
5.31 |
6.40 |
7.70 |
9.20 |
9.55 |
11.6 |
13.6 |
16.6 |
18.1 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
|
17.3 |
20.4 |
28.6 |
34.7 |
43.9 |
52.0 |
54.2 |
65.3 |
78.6 |
93.3 |
97.4 |
118 |
139 |
169 |
184 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|||
|
60Hz |
1.40 |
1.70 |
2.50 |
2.80 |
3.50 |
4.20 |
4.43 |
5.20 |
6.20 |
7.50 |
7.81 |
9.40 |
11.3 |
3.5 |
14.5 |
18.8 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
||
|
14.3 |
17.3 |
25.5 |
28.6 |
35.7 |
42.9 |
45.2 |
53.1 |
63.3 |
76.5 |
79.6 |
95.9 |
115 |
138 |
148 |
19.2 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|||
