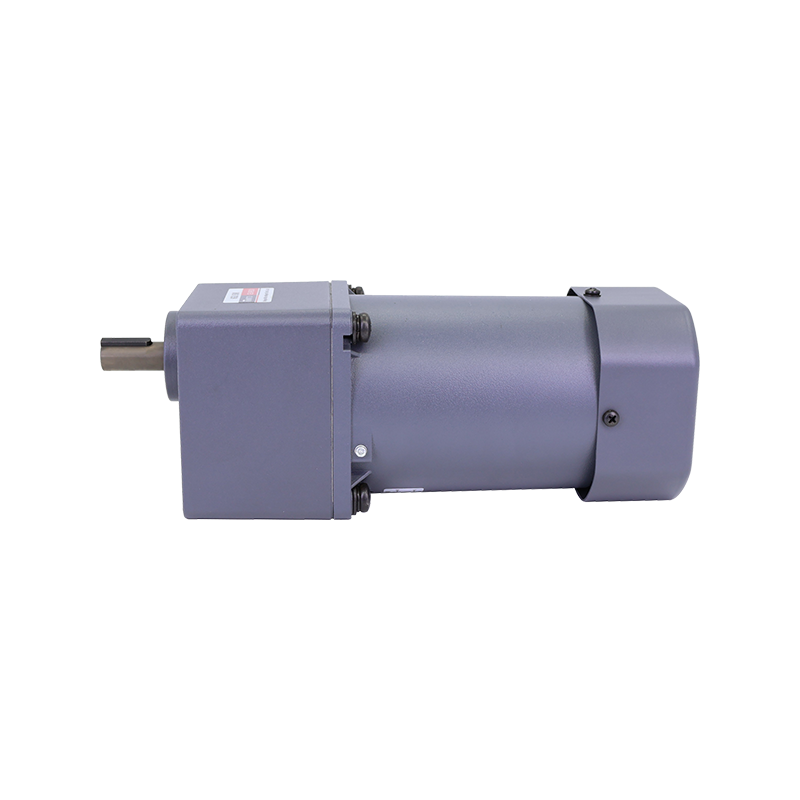

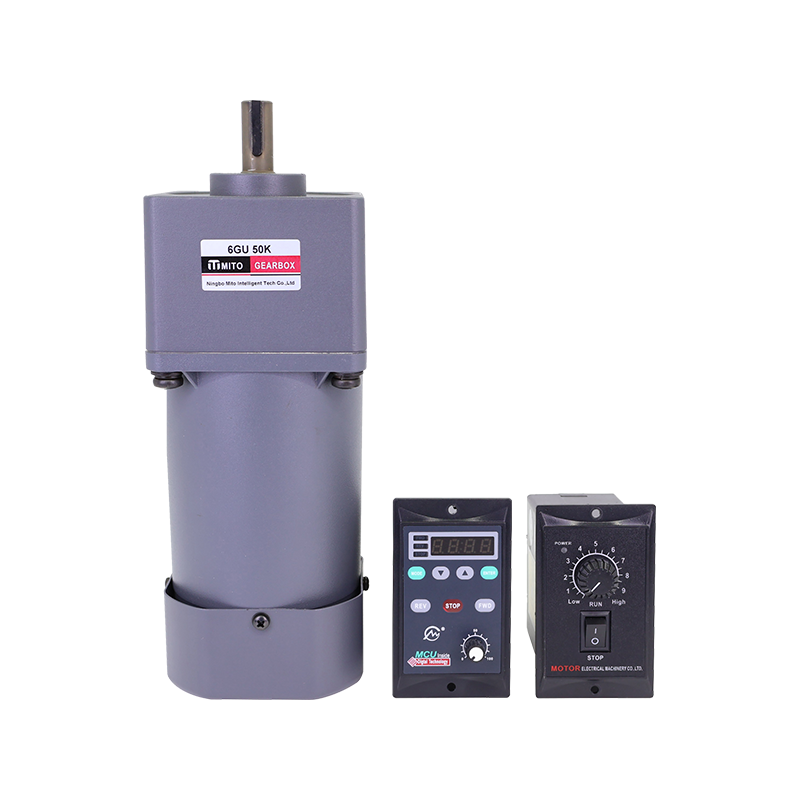

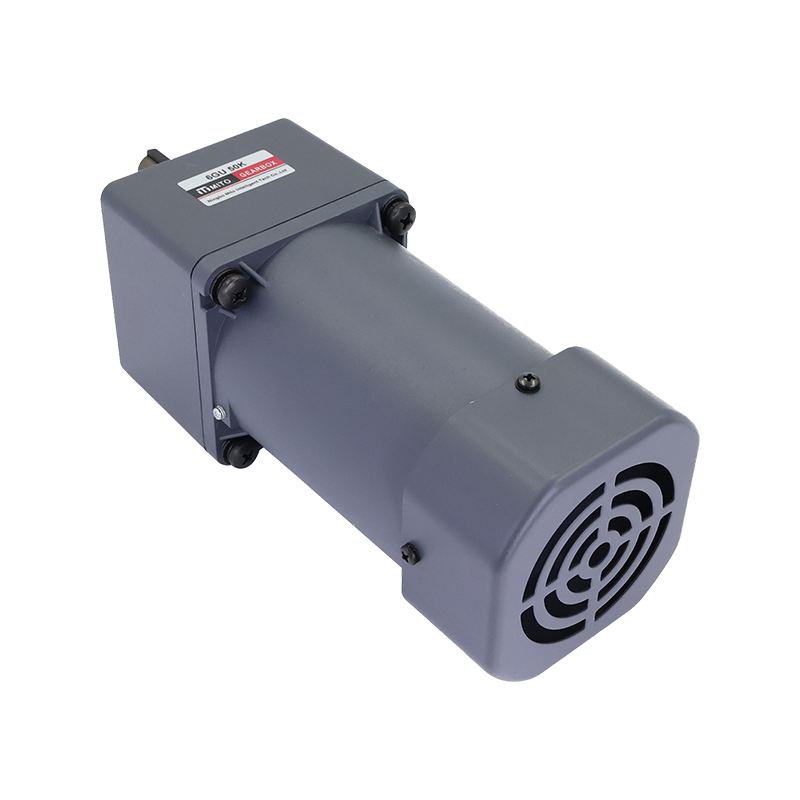

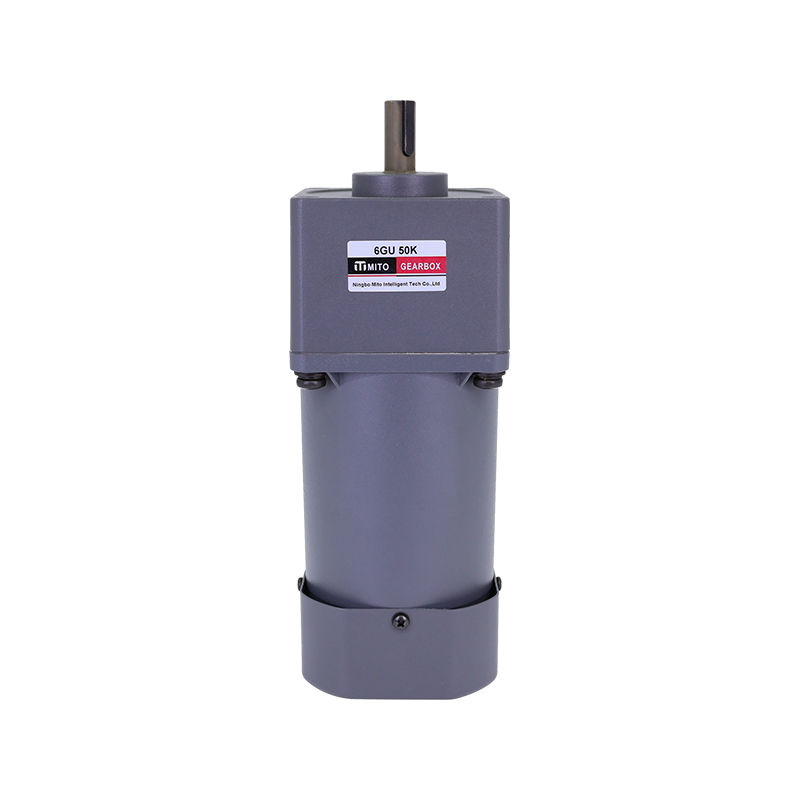

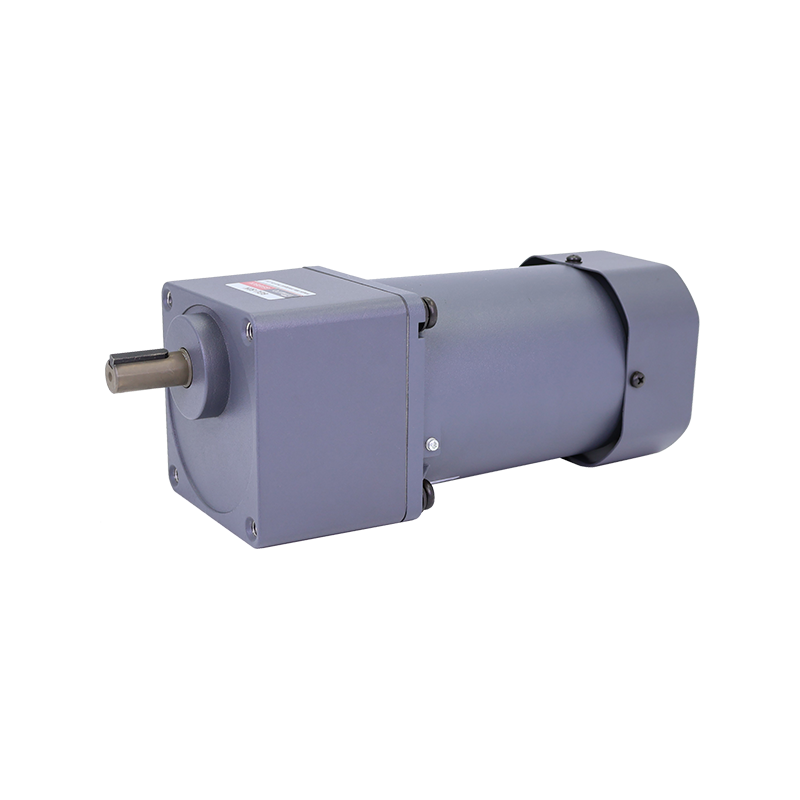

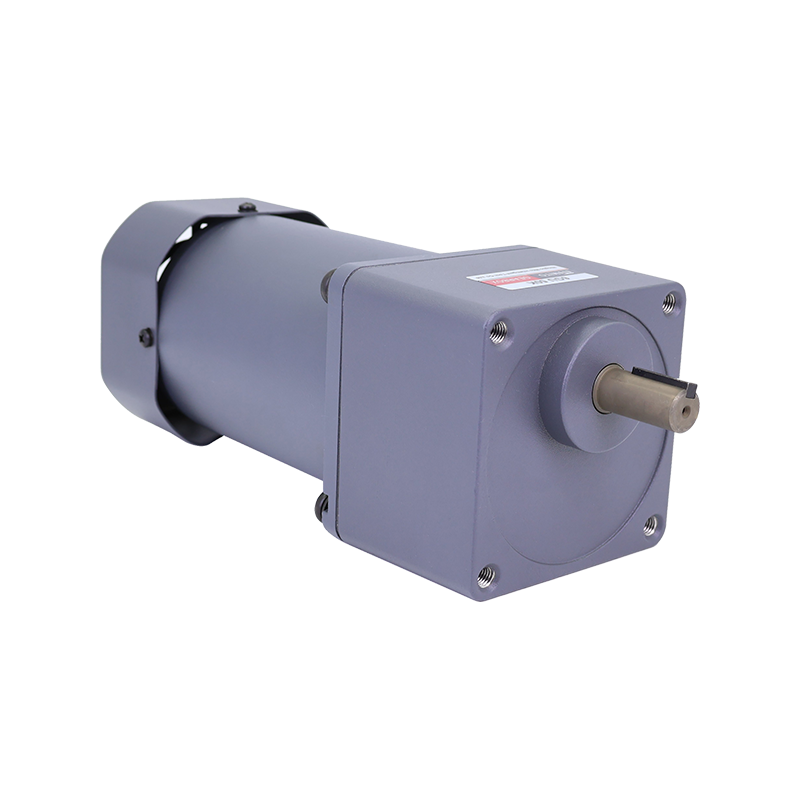

电机类型：6IK
功率：120W
电压： 110-380V
变速箱传动比： 3-200K
|
型号 ·类型 引出线型 |
输出功率 W |
电压 V |
频率 Hz |
调速范围 r/min |
容许转矩 |
启动转矩 mN.m |
电流 A |
运行电容 μF |
||
|
齿轮轴 |
圆轴 |
1200r/min mN.m |
90r/min mN.m |
|||||||
|
6IK120RGU-AF |
6IK120RA-AF |
120 |
1ph 100 |
50 |
90~1350 |
750 |
360 |
530 |
2.10 |
30.0 |
|
60 |
90~1650 |
2.50 |
||||||||
|
6IK120RGU-EF |
6IK120RA-EF |
120 |
1ph 110 |
60 |
90~1650 |
750 |
360 |
520 |
1.70 |
20.0 |
|
1ph 120 |
1.80 |
|||||||||
|
6IK120RGU-CF |
6IK120RA-CF |
120 |
1ph 220 |
50 |
90~1350 |
750 |
330 |
530 |
0.95 |
8.0 |
|
1ph 230 |
||||||||||
|
6IK120RGU-HF |
6IK120RA-HF |
120 |
1ph 220 |
60 |
90~1650 |
750 |
360 |
530 |
0.95 |
8.0 |
|
1ph 230 |
1.00 |
|||||||||
|
类型 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
40 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
|
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
41 |
37 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
|
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
45 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
9 |
||
|
6lK120RGU-AF□ |
6GU□K |
50Hz |
2.30 |
2.70 |
3.80 |
4.50 |
5.60 |
6.80 |
6.68 |
8.50 |
10.2 |
12.2 |
12.0 |
15.3 |
18.4 |
22.1 |
24.0 |
30.7 |
36.8 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
|
23.4 |
27.5 |
38.7 |
45.9 |
57.1 |
69.3 |
68.2 |
86.7 |
104 |
124 |
123 |
156 |
187 |
225 |
245 |
313 |
375 |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
|||
|
60Hz |
1.80 |
2.20 |
3.00 |
3.60 |
4.60 |
5.50 |
5.40 |
6.80 |
8.20 |
9.80 |
9.70 |
12.4 |
14.9 |
17.8 |
19.4 |
24.8 |
29.7 |
37.1 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
||
|
18.3 |
22.4 |
30.6 |
36.7 |
46.9 |
56.1 |
55.0 |
69.3 |
83.6 |
100 |
99.0 |
126 |
152 |
181 |
198 |
253 |
303 |
378 |
400 |
400 |
400 |
400 |
400 |
400 |
|||
