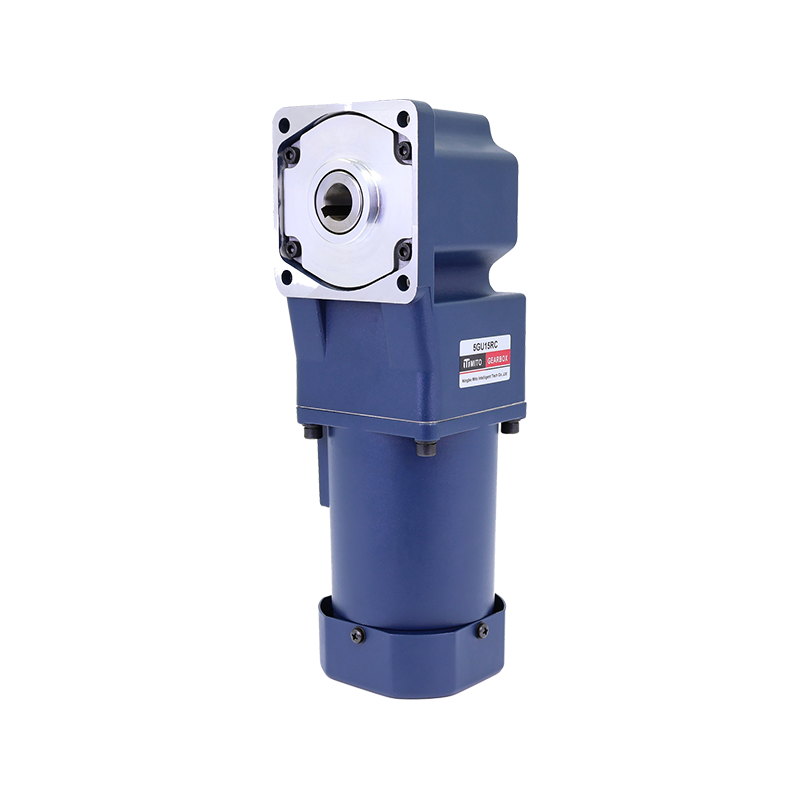

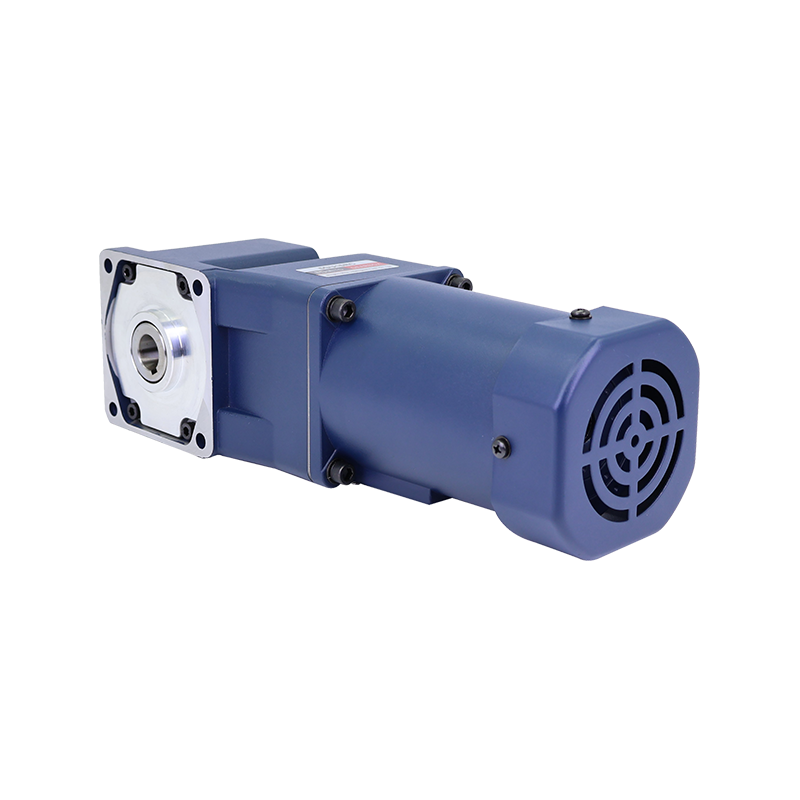

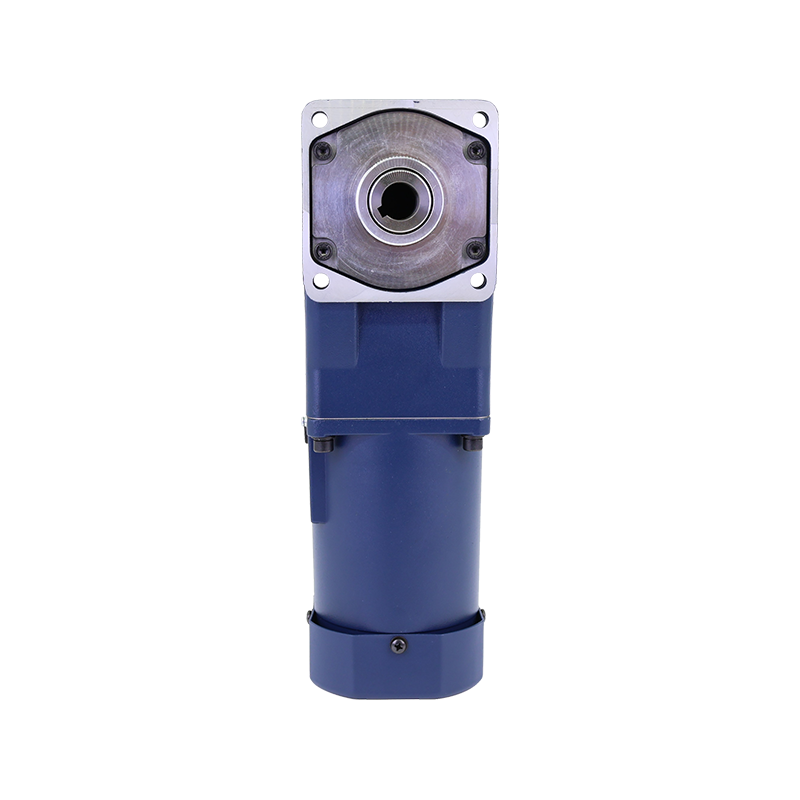

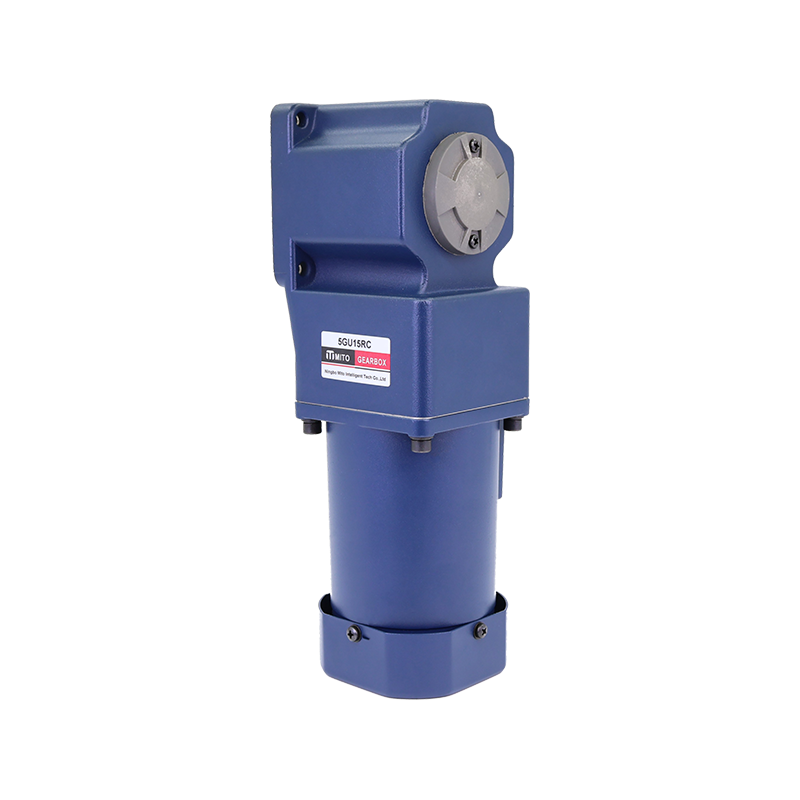

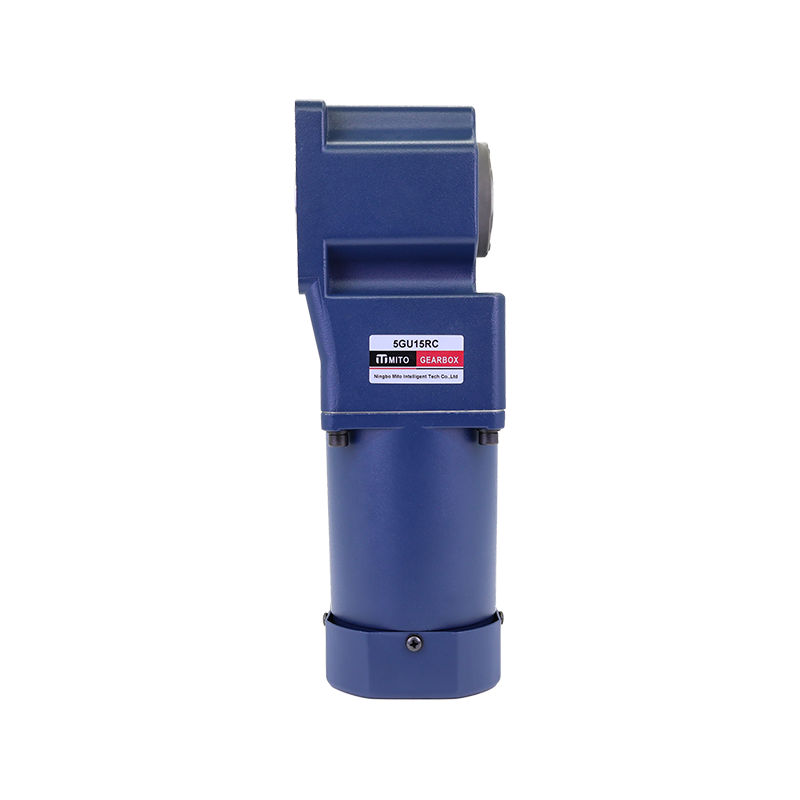

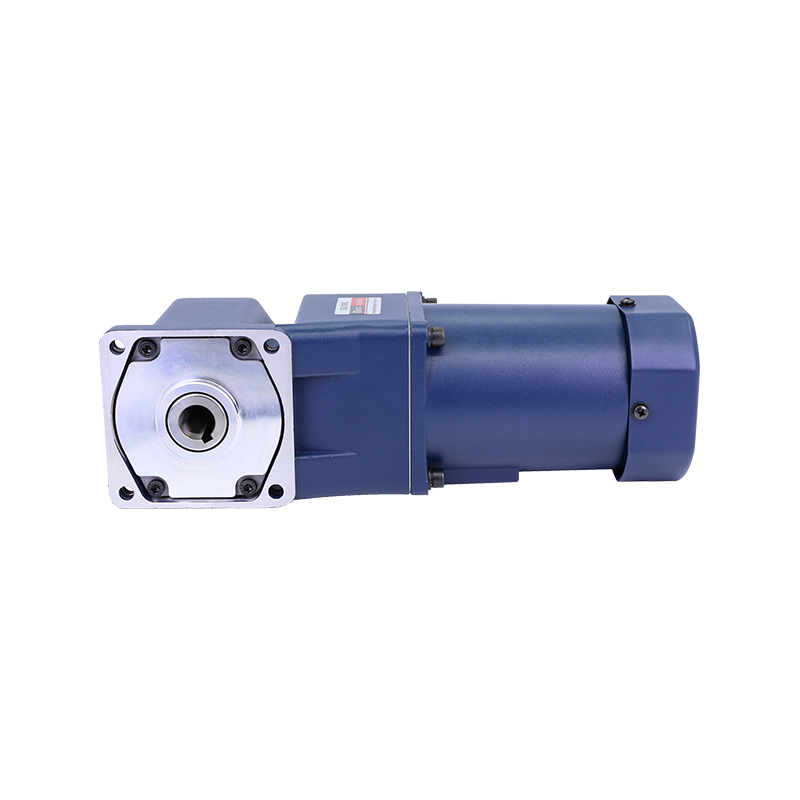

电机类型：5RK
功率：120W
电压： 110-380V
变速箱传动比： 3-180K
|
型号 ·类型 引出线型 |
额定 |
输出功率 W |
电压 V |
频率 Hz |
电流 A |
启动转矩 mN.m |
额定转矩 mN.m |
额定转速 r/min |
运行电容 μF |
|
齿轮轴型 |
|||||||||
|
5RK120GU-AFM |
30min |
120 |
1ph 100 |
50 |
2.25 |
700 |
930 |
1250 |
35 |
|
60 |
2.85 |
750 |
1550 |
||||||
|
5RK120GU-EFM |
30min |
120 |
1ph 110 |
60 |
1.90 |
650 |
750 |
1550 |
30 |
|
1ph 120 |
720 |
||||||||
|
5RK120GU-CFM |
30min |
120 |
1ph 220 |
50 |
1.15 |
720 |
930 |
1250 |
8.0 |
|
1ph 230 |
|||||||||
|
5RK120GU-HFM |
30min |
120 |
1ph 220 |
60 |
1.20 |
720 |
750 |
1550 |
8.0 |
|
1ph 230 |
|||||||||
|
5RK120GU-SFM |
30min |
120 |
3ph 220 |
50 |
0.70 |
1850 |
930 |
1250 |
- |
|
60 |
0.60 |
1600 |
750 |
1550 |
|||||
|
5RK120GU-S3FM |
30min |
120 |
3ph 380 |
50 |
0.40 |
1850 |
930 |
1250 |
- |
|
60 |
0.35 |
1600 |
750 |
1550 |
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
||
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
42 |
30 |
25 |
20 |
16 |
15 |
12 |
10 |
8 |
||
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
|||
|
5RK120GUAF□M 5RK120GUEF□M 5RK120GUCF□M RK120GUHF□M 5RK120GUSF□M 5FK120GUS3F□M |
5GU□RC 5GU□RT |
容许转矩 |
50Hz- |
1.50 |
1.80 |
2.51 |
3.01 |
4.73 |
5.01 |
5.57 |
7.89 |
9.47 |
10.0 |
11.14 |
15.8 |
18.9 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
|
14.7 |
17.7 |
24.6 |
29.5 |
48.3 |
49.1 |
54.6 |
80.5 |
96.6 |
98.3 |
109 |
161 |
193 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
||||
|
60Hz- |
1.25 |
1.50 |
2.09 |
2.51 |
3.82 |
4.18 |
4.64 |
6.36 |
7.64 |
8.35 |
9.28 |
12.7 |
15.3 |
16.5 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
|||
|
12.3 |
14.7 |
20.5 |
24.6 |
39.0 |
40.9 |
45.5 |
64.9 |
77.9 |
81.9 |
91.0 |
130 |
156 |
168 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
||||
