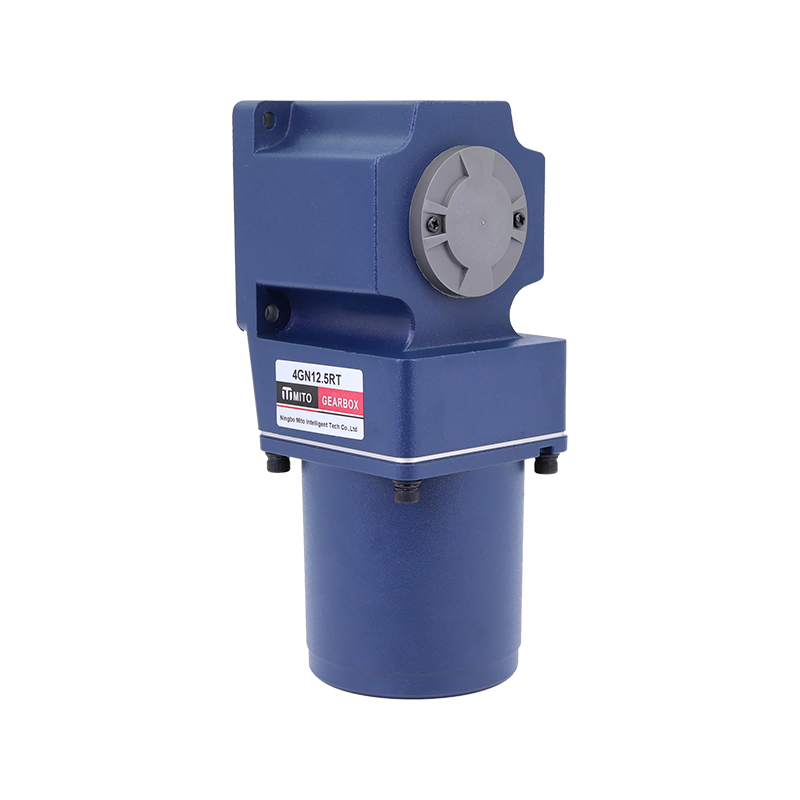

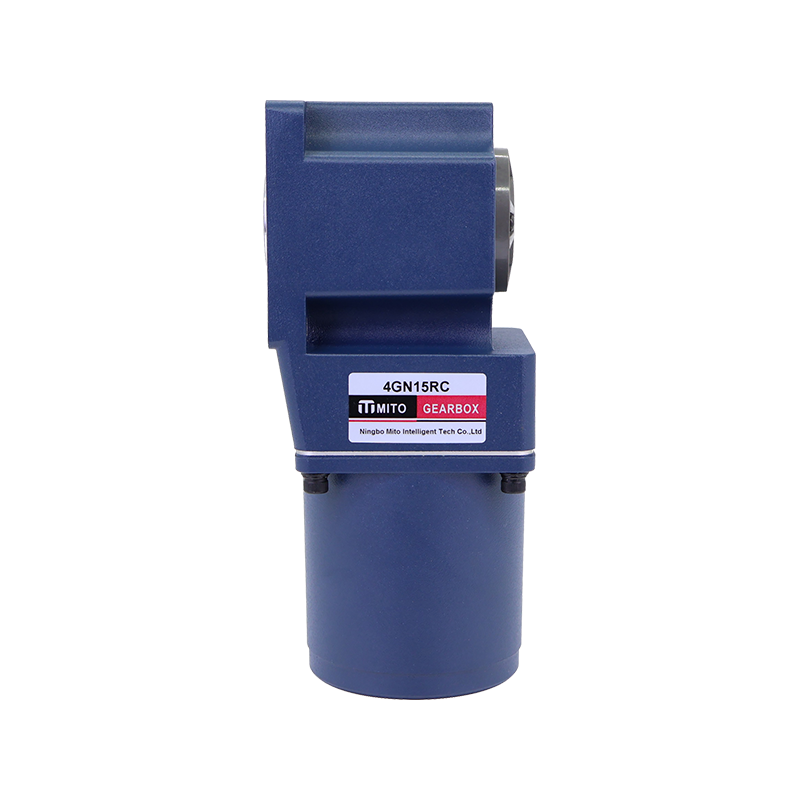

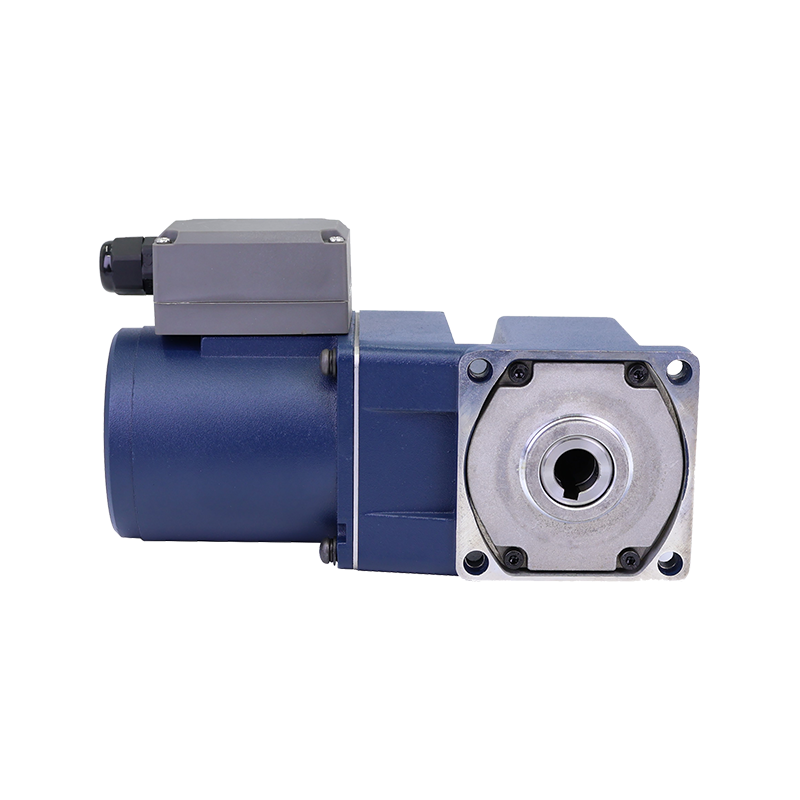

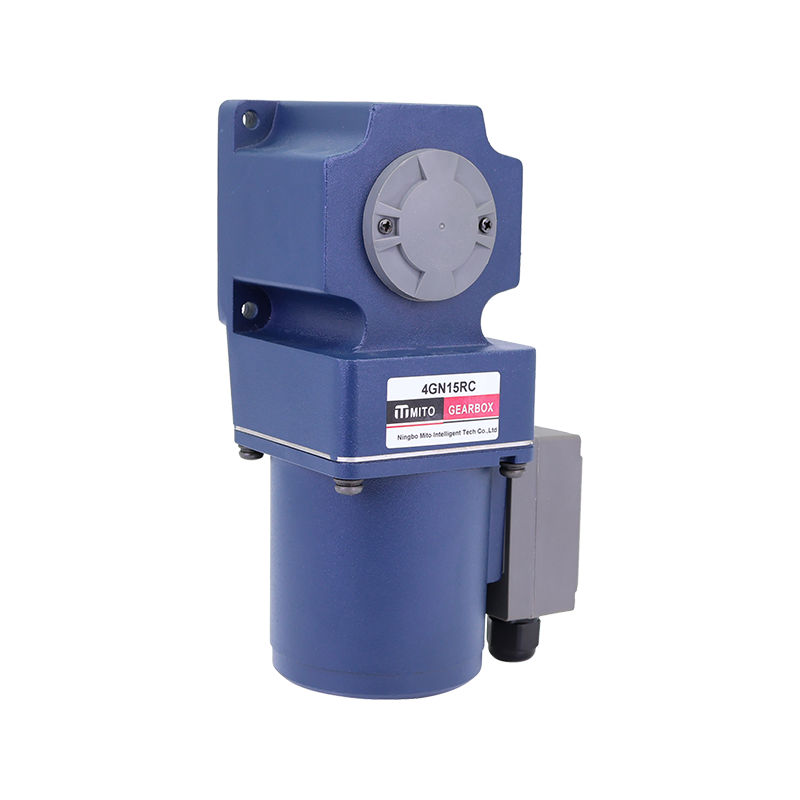

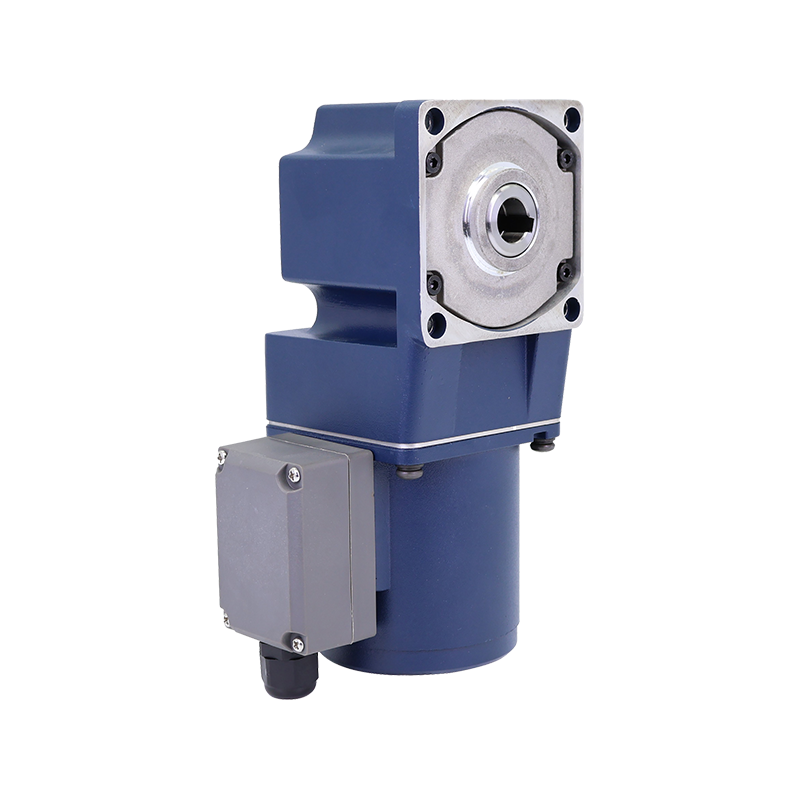

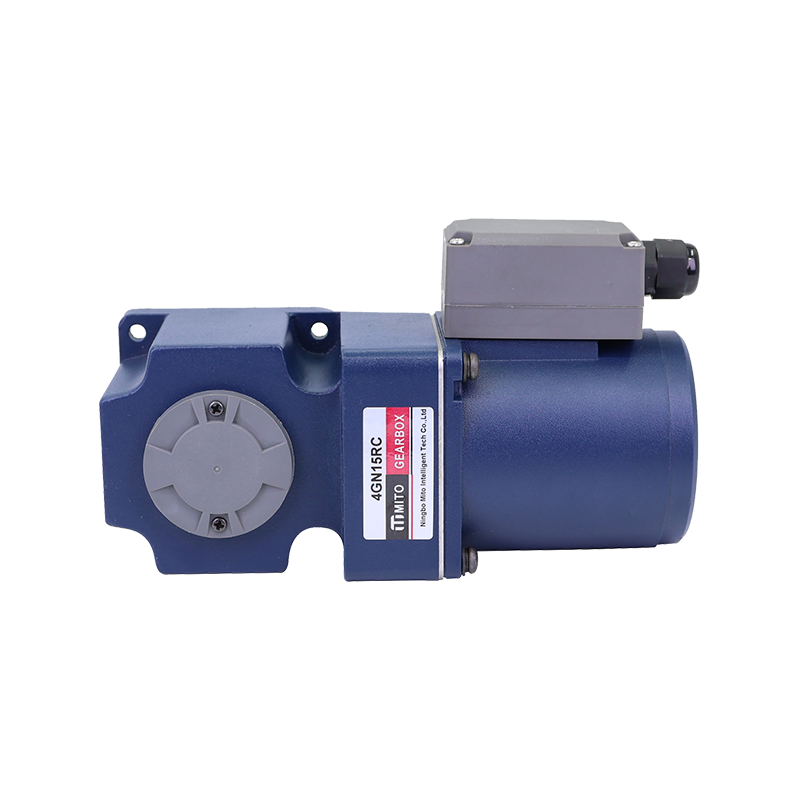

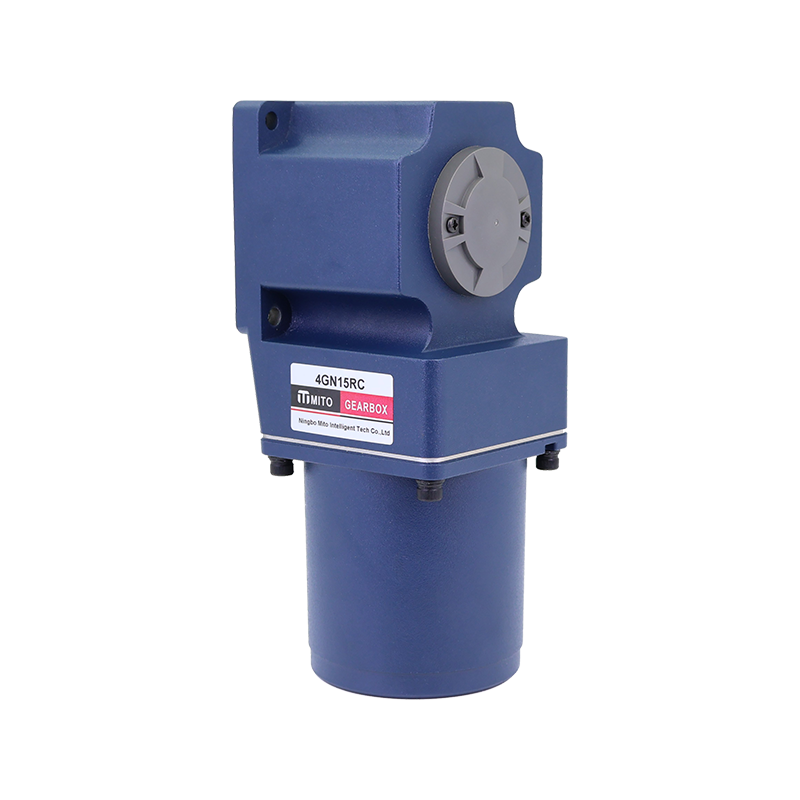

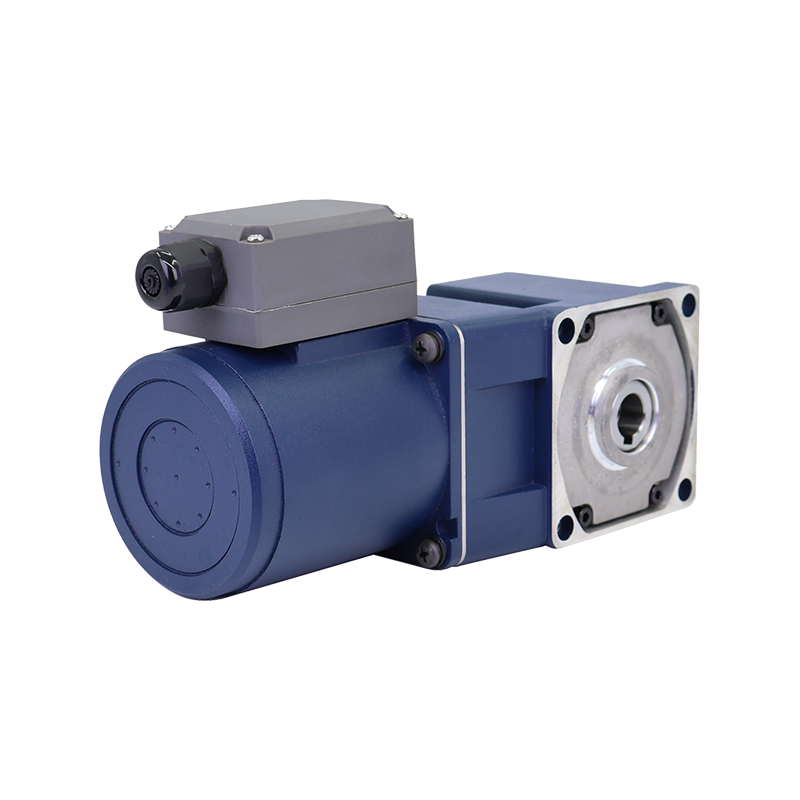

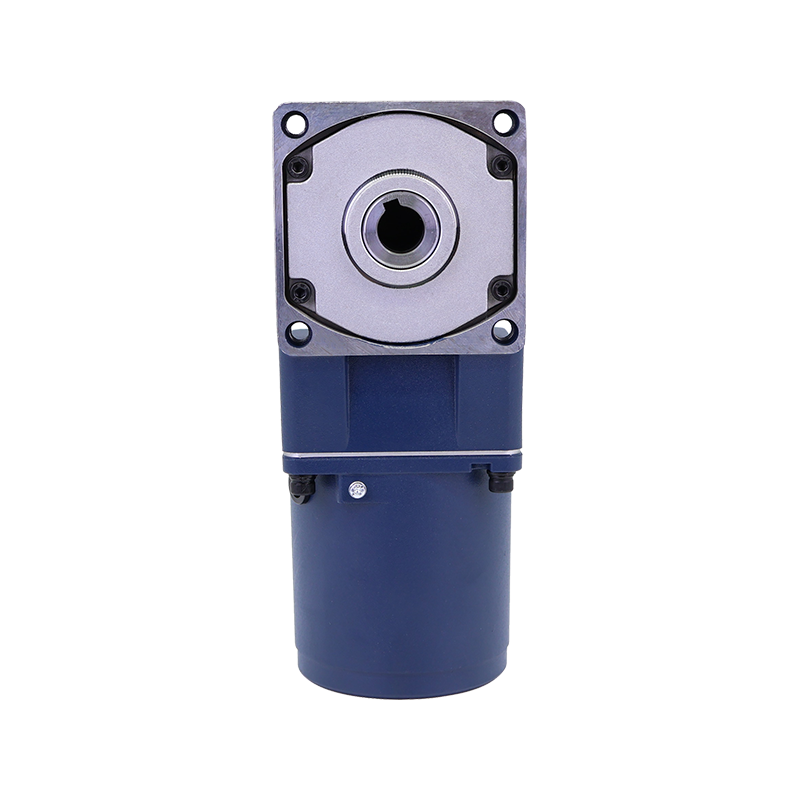

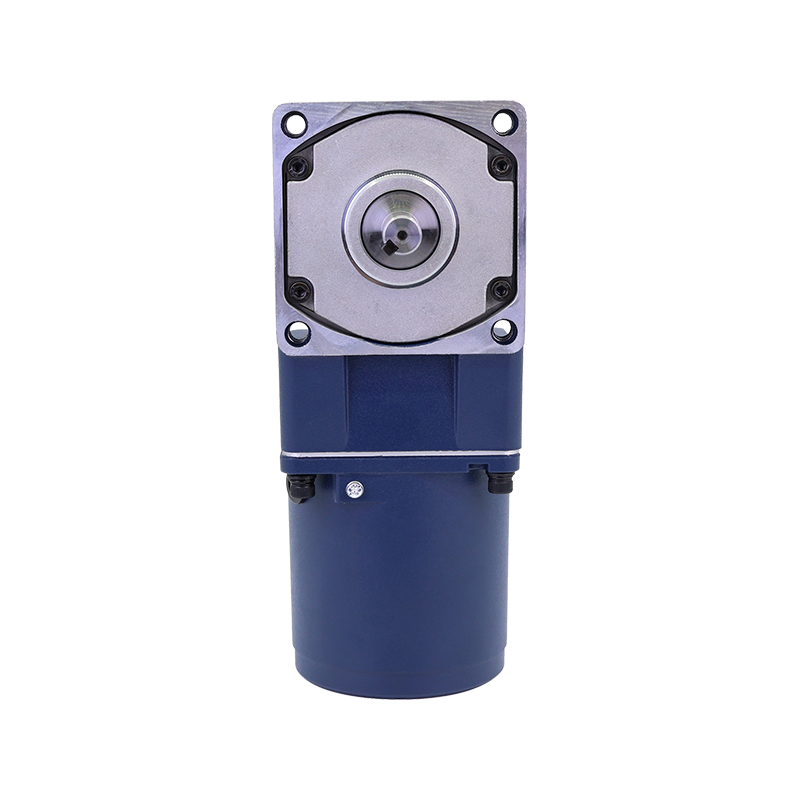

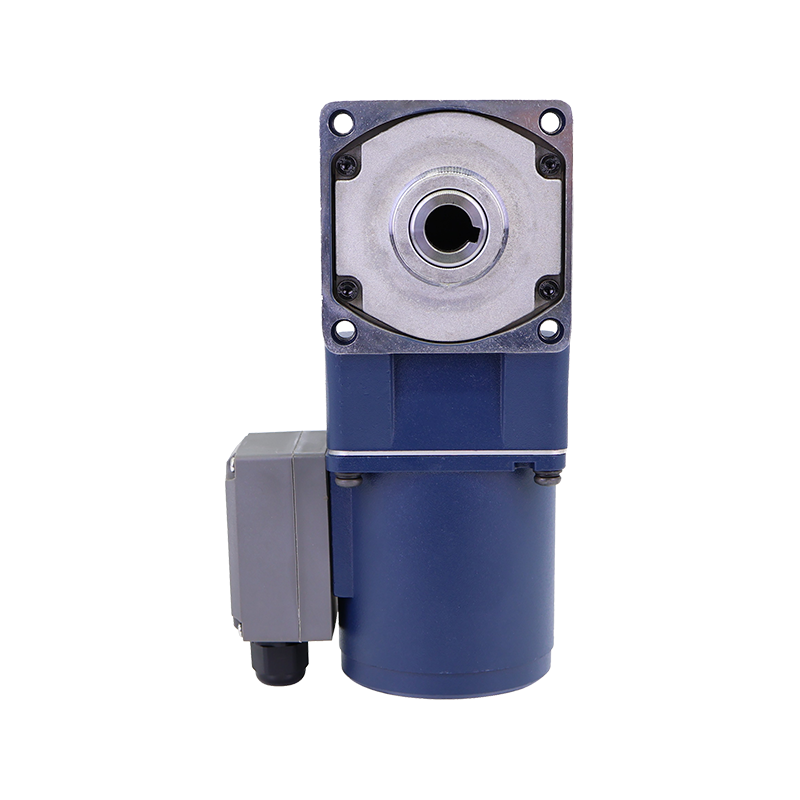

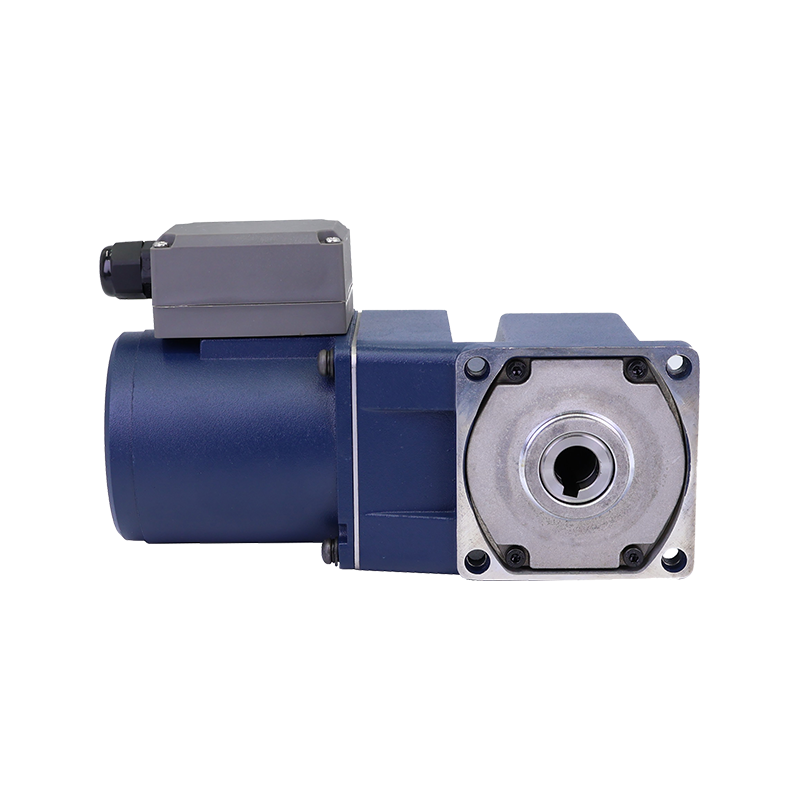

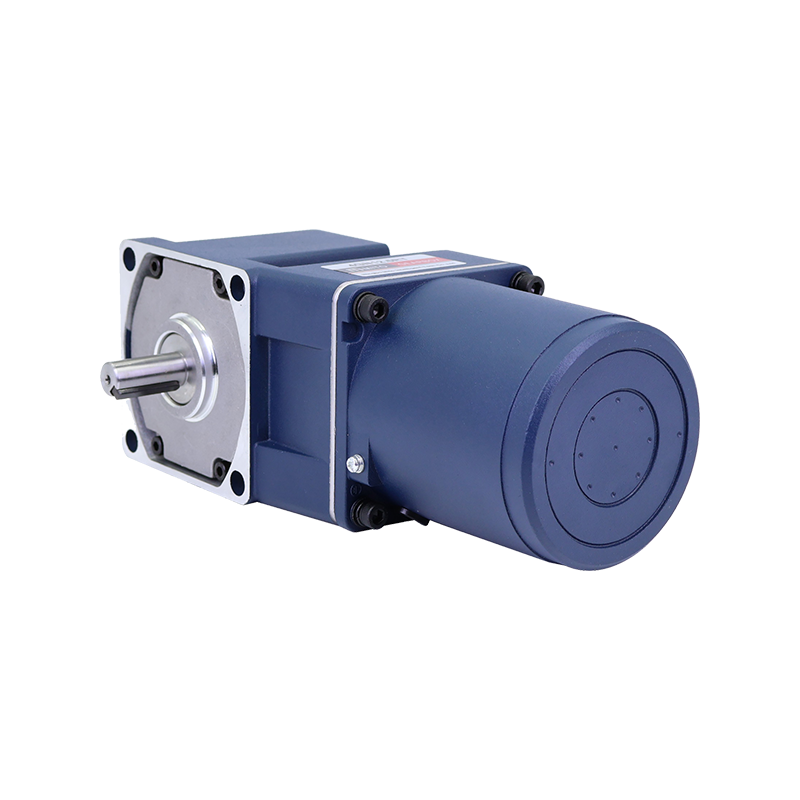

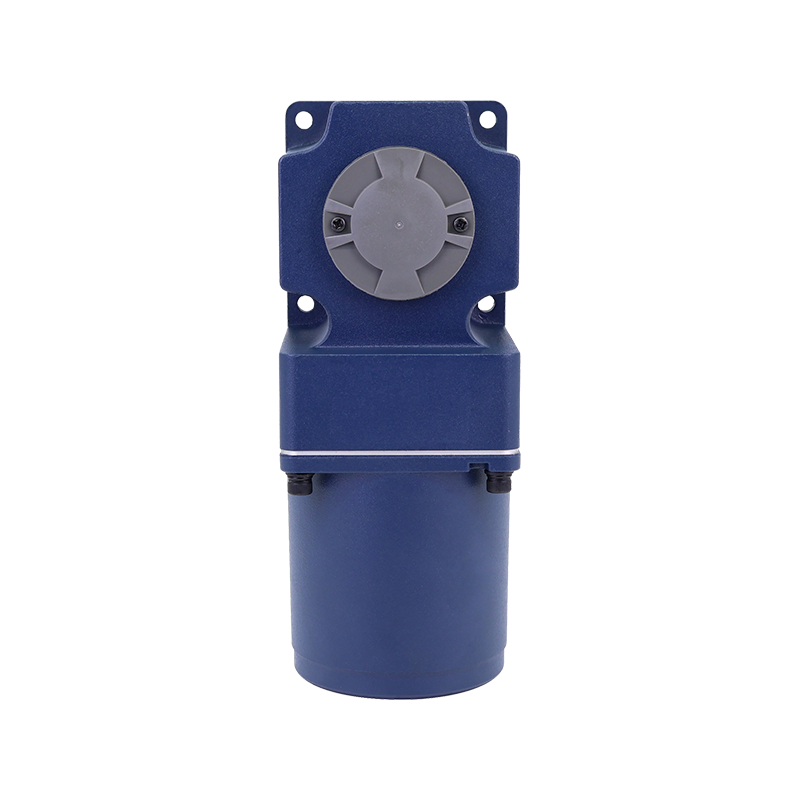

电机类型：4IK
功率：25W
电压： 110-380V
变速箱传动比： 3-180K
|
型号 ·类型 上段：齿轮轴 下段()内：光轴 |
输出功率 W |
电压 V |
频率 Hz |
电流 A |
启动转矩 mN.m |
额定转矩 mN.m |
额定转速 r/min |
运行电容 μF |
|
|
引出线型 尺寸① |
接线盒型 尺寸② |
||||||||
|
4IK25GN-A |
41K25GN-AT |
25 |
1ph 100 |
50 |
0.500 |
120 |
200 |
1250 |
8.0 |
|
60 |
0.550 |
165 |
1550 |
||||||
|
4IK25GN-E |
4IK25GN-ET |
25 |
1ph 110 |
60 |
0.450 |
120 |
165 |
1550 |
7.0 |
|
1ph 120 |
0.500 |
||||||||
|
4IK25GN-C |
41K25GN-CT |
25 |
1ph 220 |
50 |
0.250 |
120 |
200 |
1250 |
1.8 |
|
1ph 230 |
0.230 |
||||||||
|
4IK25GN-H |
41K25GN-HT |
25 |
1ph 220 |
60 |
0.230 |
120 |
165 |
1550 |
1.8 |
|
1ph 230 |
|||||||||
|
41K25GN-S |
41K25GN-ST |
25 |
3ph 220 |
50 |
0.185 |
350 |
200 |
1250 |
- |
|
60 |
0.170 |
250 |
165 |
1550 |
|||||
|
4IK25GN-S3 |
4IK25GN-S3T |
25 |
3ph 380 |
50 |
0.107 |
350 |
200 |
1250 |
- |
|
60 |
0.098 |
250 |
165 |
1550 |
|||||
|
类型 电动机/减速机 |
减速比 |
3 |
5 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
||
|
转速 r/min |
50Hz |
500 |
300 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
42 |
30 |
25 |
20 |
16 |
15 |
12 |
10 |
8 |
||
|
60Hz |
600 |
360 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
|||
| 4IK25GN-A□ 4IK25GN-E□ 4IK25GN-C□ 4IK25GN-H□ 4IK25GN-S□ 4IK25GN-S3□ |
4GNoRC 4GNORT |
容许转矩 |
50Hz- |
0.31 |
0.52 |
0.99 |
1.0 |
1.16 |
1.64 |
1.97 |
2.09 |
2.32 |
3.29 |
3.95 |
4.73 |
6.58 |
7.10 |
8.00 |
8.00 |
8.00 |
8.00 |
8.00 |
8.00 |
|
3.07 |
5.12 |
10.1 |
10.2 |
11.4 |
16.8 |
20.1 |
20.5 |
22.7 |
33.5 |
40.3 |
48.3 |
67.1 |
72.5 |
80.0 |
80.0 |
80.0 |
80.0 |
80.0 |
80.0 |
||||
|
60Hz |
0.26 |
0.44 |
0.80 |
0.87 |
0.97 |
1.33 |
1.59 |
1.74 |
1.93 |
2.65 |
3.18 |
3.82 |
5.30 |
5.73 |
7.16 |
8.00 |
8.00 |
8.00 |
8.00 |
8.00 |
|||
|
2.56 |
4.26 |
8.12 |
8.53 |
9.48 |
13.5 |
16.2 |
17.1 |
19.0 |
27.1 |
32.5 |
39.0 |
54.1 |
58.4 |
73.0 |
80.0 |
80.0 |
80.0 |
80.0 |
80.0 |
||||
