电机类型：M55BLD
功率：200-750W
电压： 24-48V (低电压)
220V (高电压)

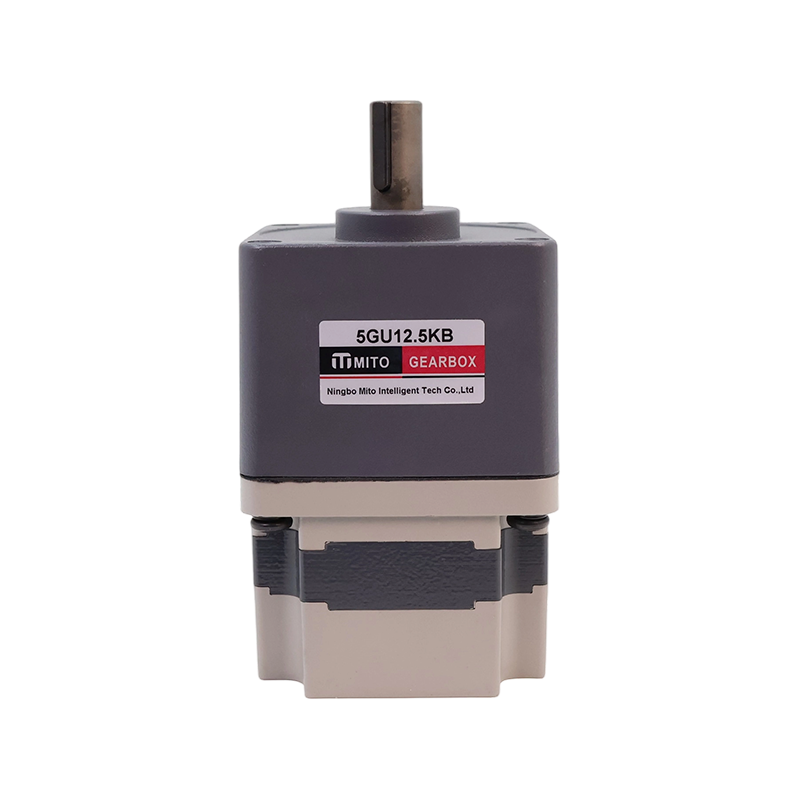

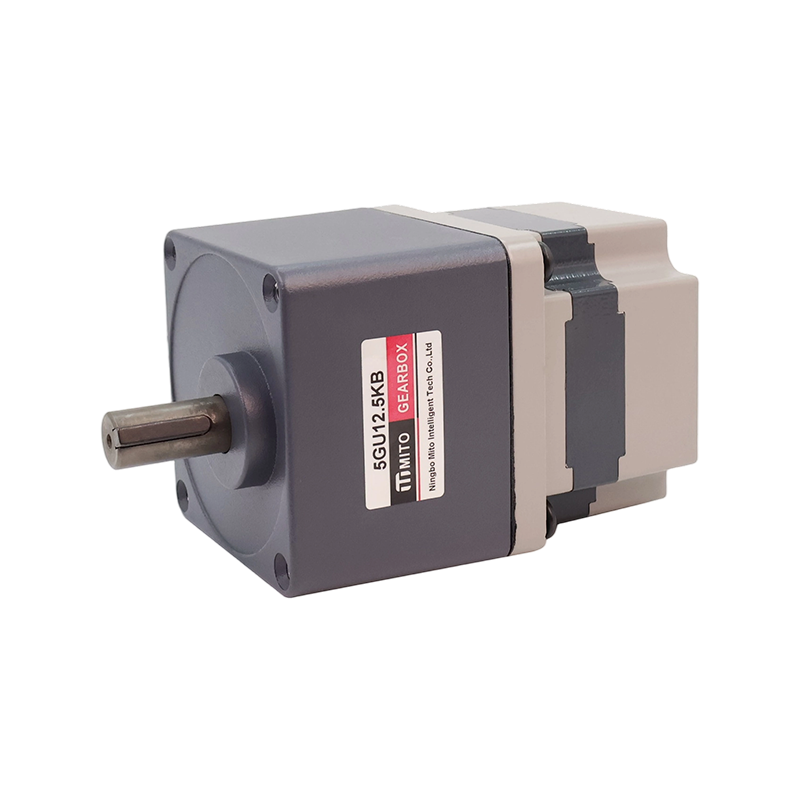

变速箱传动比： 3-200K (In-line)

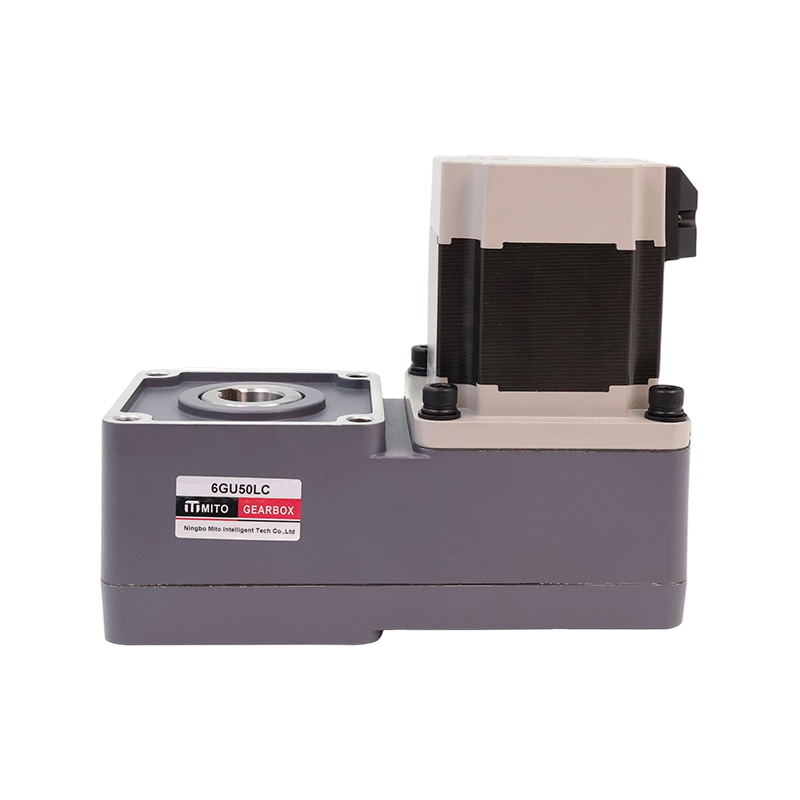

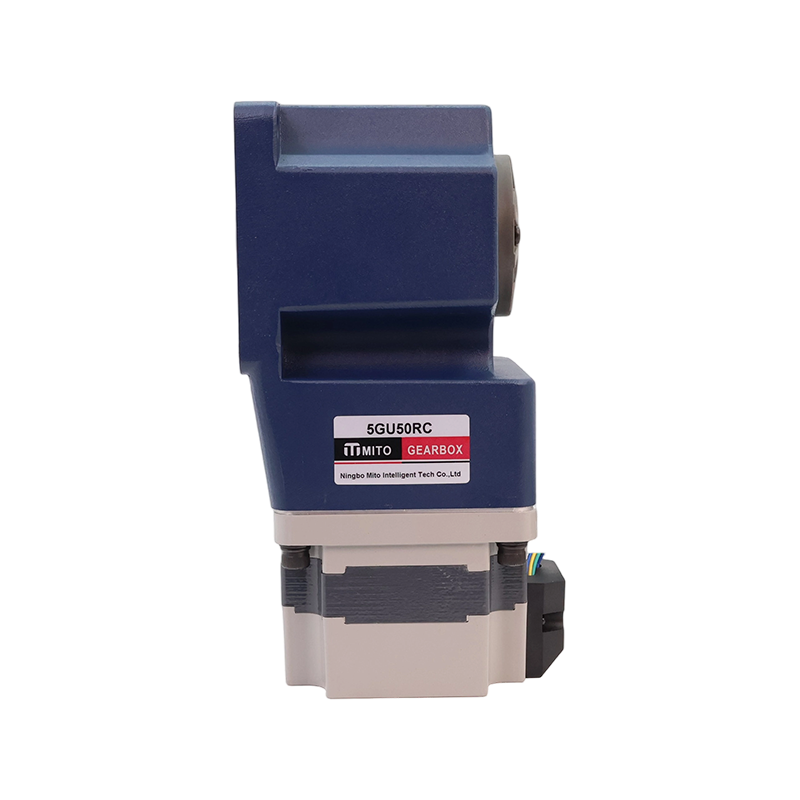

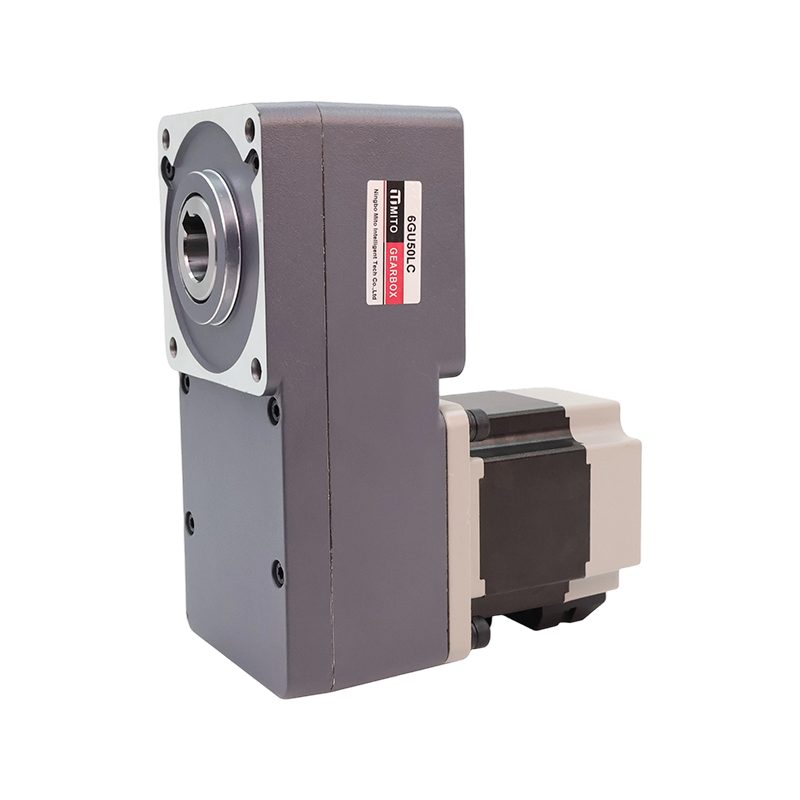

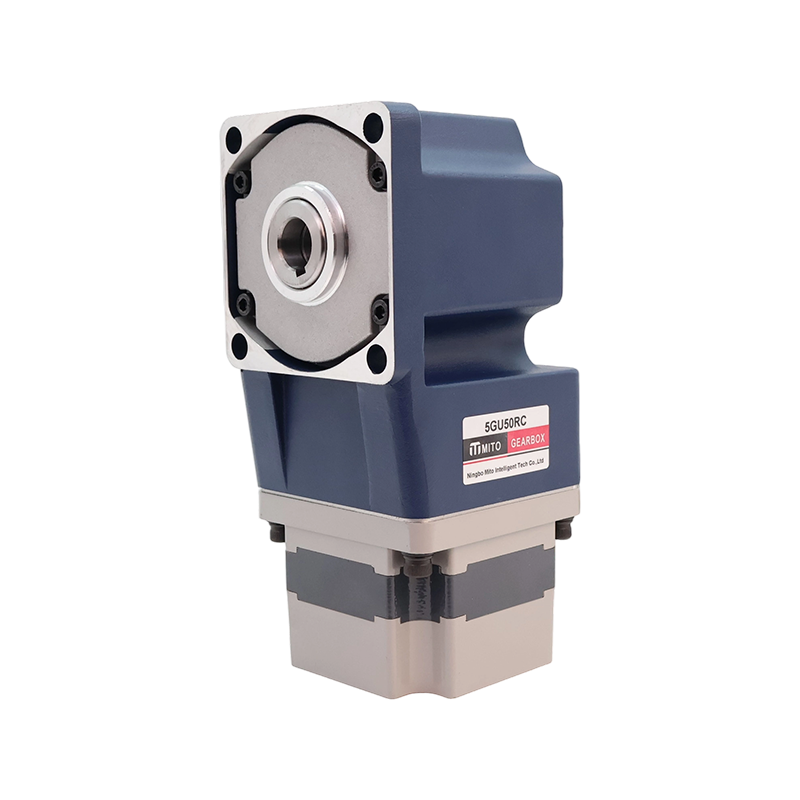

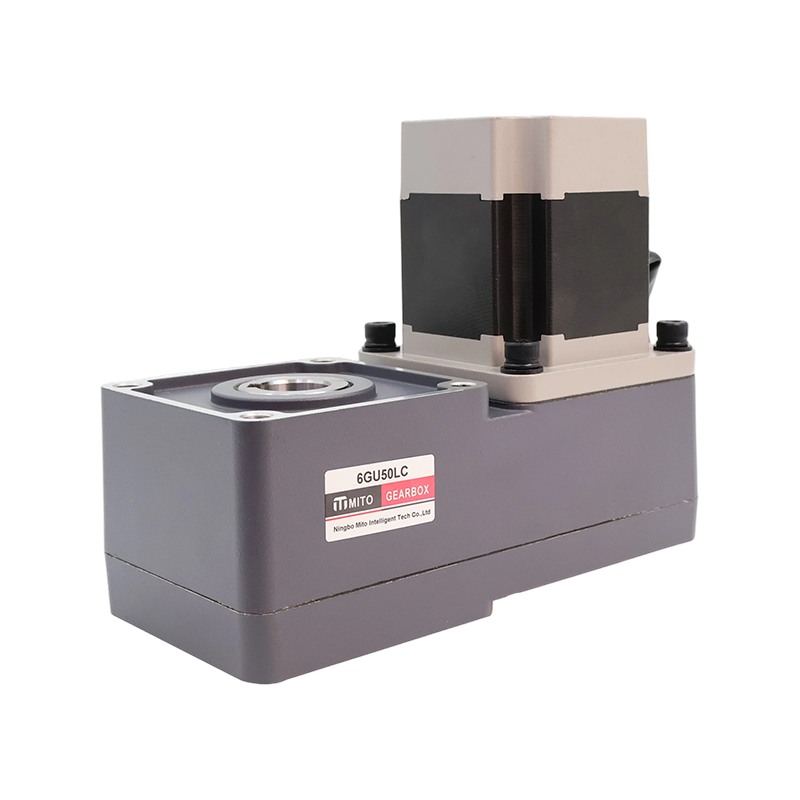

5-200K (L型)
低压无刷电机性能参数
|
型号 |
额定功率 |
电压 V |
额定转矩 |
启动转矩 |
额定转矩 |
额定转速 |
防护等级 |
|
M55BLD200-24GU-30S |
200 |
24 |
13 |
1.28 |
0.637 |
3000 |
20 |
|
M55BLD200-48GU-30S |
200 |
48 |
5.2 |
1.28 |
0.637 |
3000 |
20 |
|
M55BLD300-24GU-30S |
300 |
24 |
18 |
1.91 |
0.955 |
3000 |
20 |
|
M55BLD300-48GU-30S |
300 |
48 |
9 |
1.91 |
0.955 |
3000 |
20 |
|
M55BLD400-24GU-30S |
400 |
24 |
24 |
2.54 |
1.27 |
3000 |
20 |
|
M55BLD400-48GU-30S |
400 |
48 |
12 |
2.54 |
1.27 |
3000 |
20 |
|
M55BLD500-24GU-30S |
500 |
24 |
32 |
3.18 |
1.59 |
3000 |
20 |
|
M55BLD500-48GU-30S |
500 |
48 |
15 |
3.18 |
1.59 |
3000 |
20 |
|
M55BLD600-24GU-30S |
600 |
24 |
36 |
3.82 |
1.91 |
3000 |
20 |
|
M55BLD600-48GU-30S |
600 |
48 |
18 |
3.82 |
1.91 |
3000 |
20 |
|
M55BLD750-24GU-30S |
750 |
24 |
45 |
4.76 |
2.38 |
3000 |
20 |
|
M55BLD750-48GU-30S |
750 |
48 |
23 |
4.76 |
2.38 |
3000 |
20 |
高压无刷电机性能参数
|
型号 |
额定功率 |
电压 V |
额定转矩 |
启动转矩 |
额定转矩 |
额定转速 |
防护等级 |
|
M55BLD200-220GU-30S |
200 |
220 |
2 |
1.28 |
0.637 |
3000 |
20 |
|
M55BLD300-220GU-30S |
300 |
220 |
2 |
1.91 |
0.955 |
3000 |
20 |
|
M55BLD400-220GU-30S |
400 |
220 |
2.6 |
2.54 |
1.27 |
3000 |
20 |
|
M55BLD500-220GU-30S |
500 |
220 |
3.5 |
3.18 |
1.59 |
3000 |
20 |
|
M55BLD600-220GU-30S |
600 |
220 |
4 |
3.82 |
1.91 |
3000 |
20 |
|
M55BLD750-220GU-30S |
750 |
220 |
5 |
4.76 |
2.38 |
3000 |
20 |
