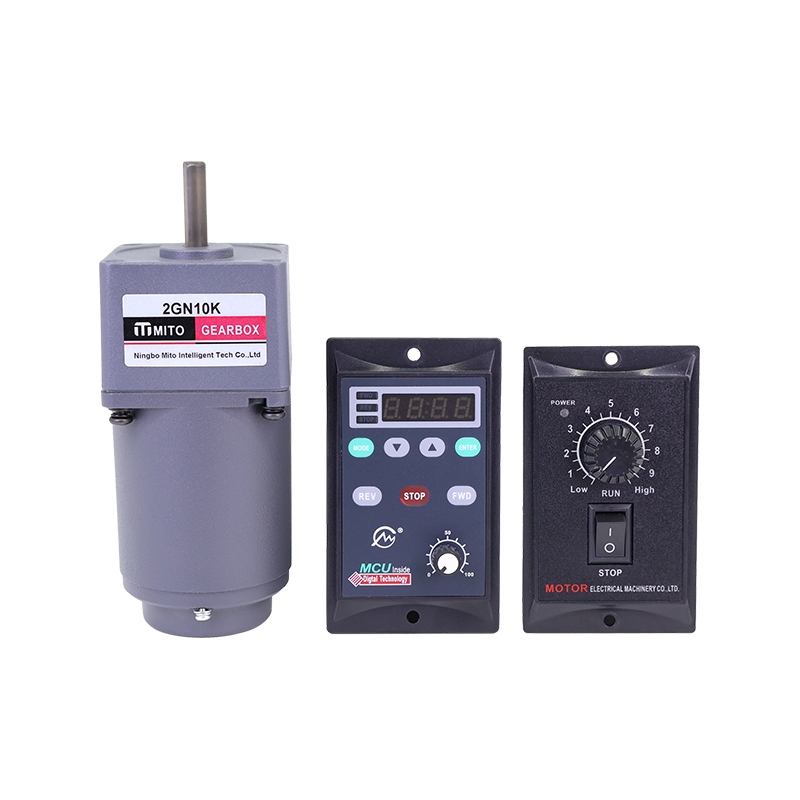

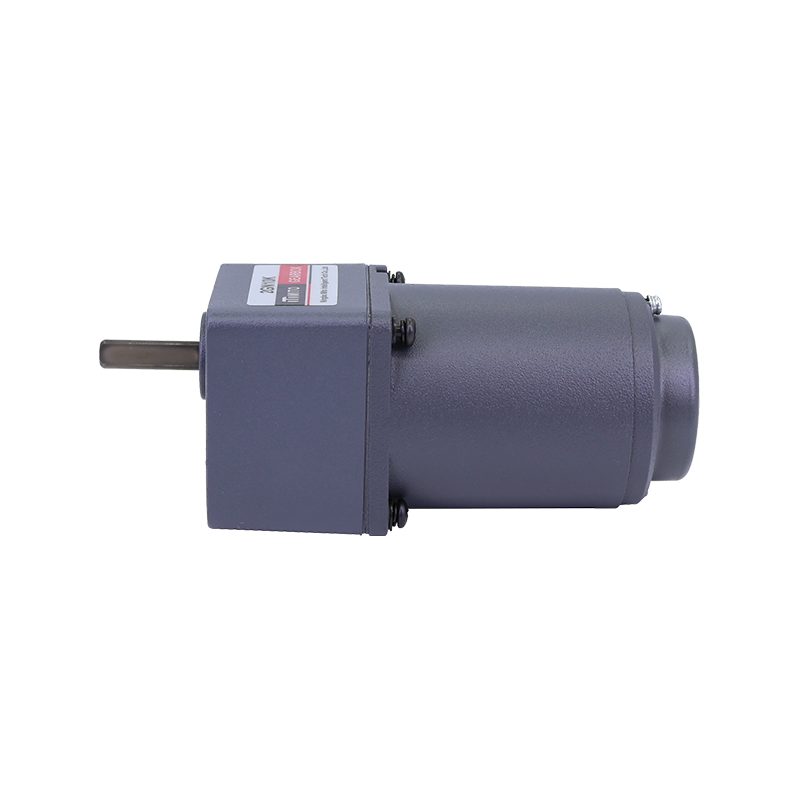

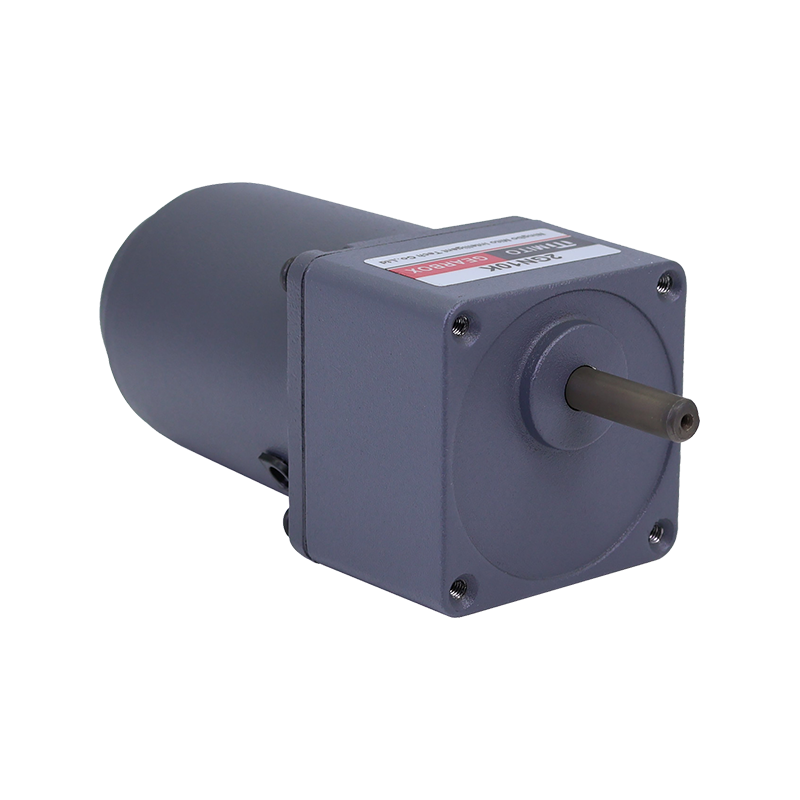

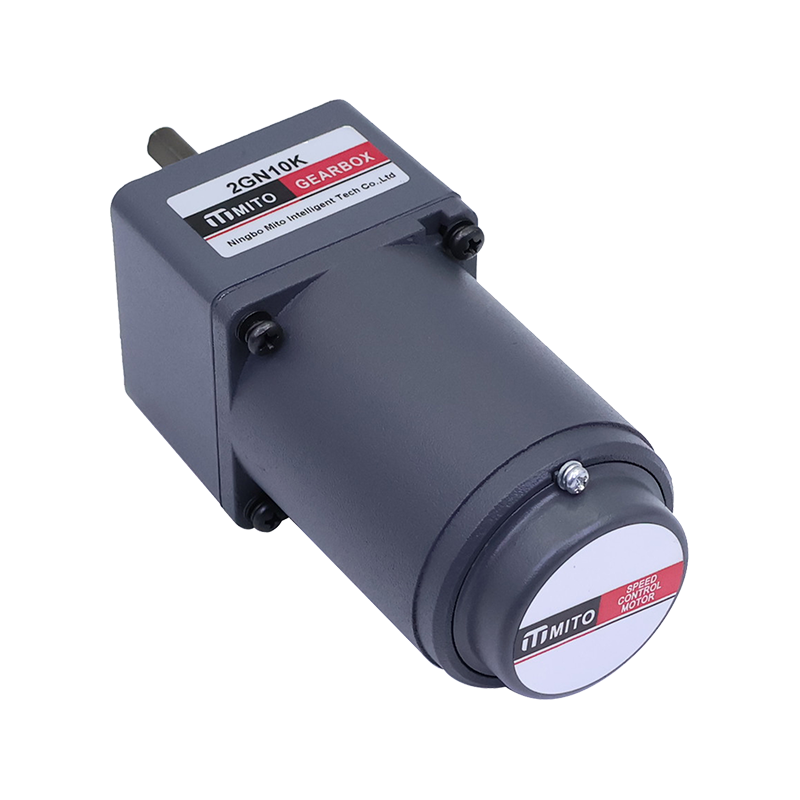

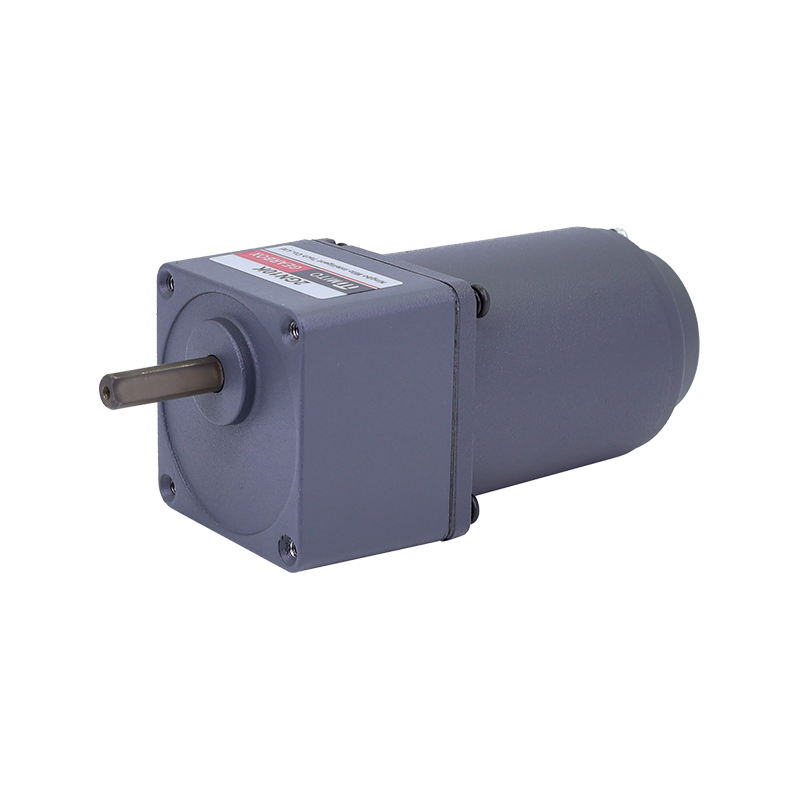

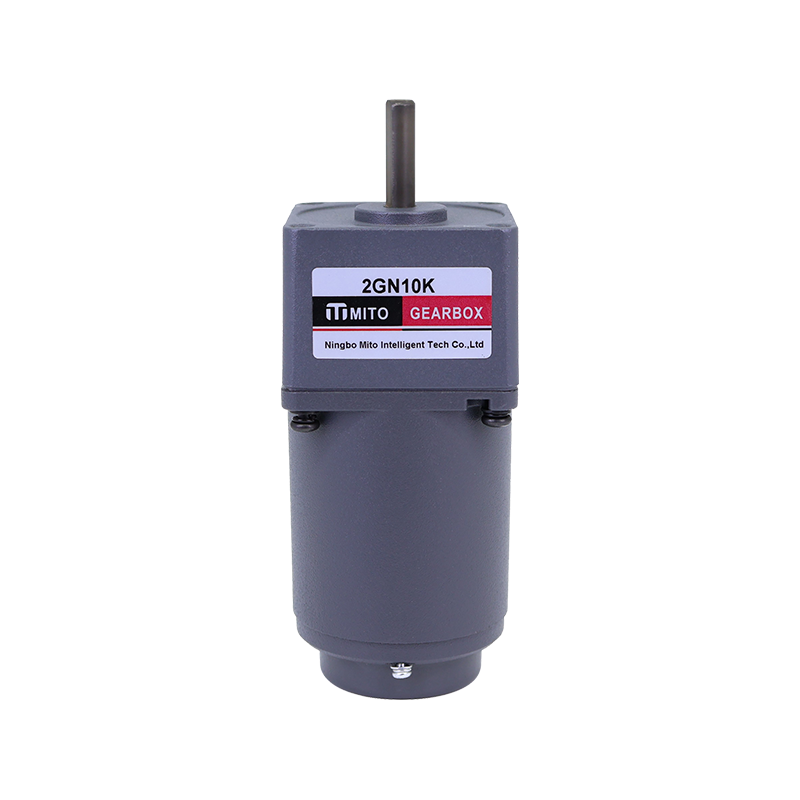

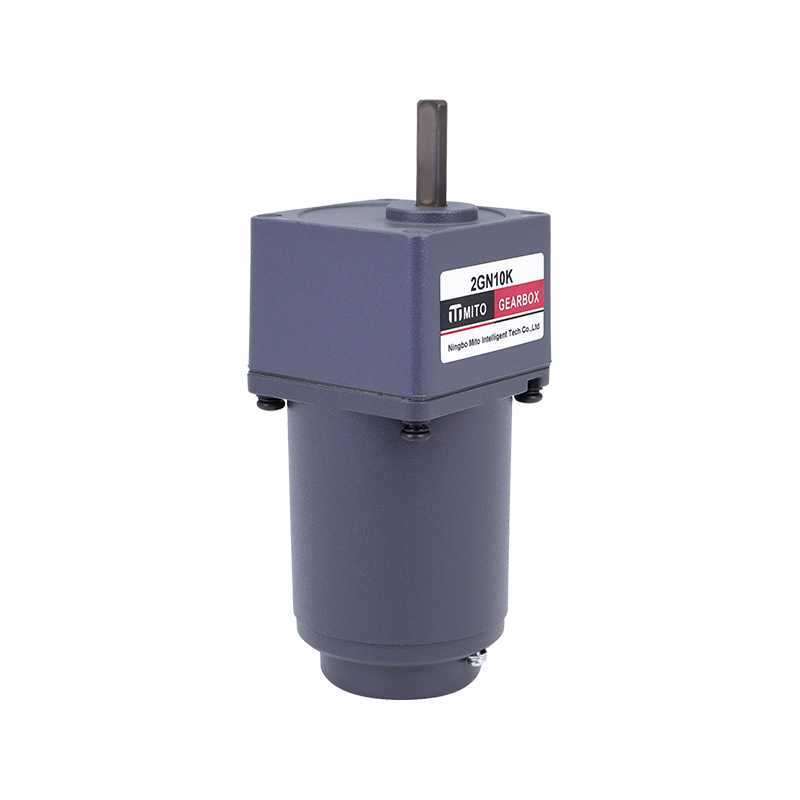

电机类型：2IK
功率：6W
电压： 110-380V
变速箱传动比： 3-200K
|
型号 ·类型 引出线型 |
输出功率 W |
电压 V |
频率 Hz |
调速范围 r/min |
容许转矩 |
启动转矩 mN.m |
电流 A |
运行电容 μF |
||
|
齿轮轴 |
圆轴 |
1200r/min mN.m |
90r/min mN.m |
|||||||
|
2IK6RGN-A |
2IK6RA-A |
6 |
1ph 100 |
50 |
90~1350 |
50 |
30 |
35 |
0.240 |
3.5 |
|
60 |
90~1650 |
50 |
29 |
35 |
0.250 |
|||||
|
2IK6RGN-E |
2IK6RA-E |
6 |
1ph 110 |
60 |
90~1650 |
50 |
29 |
30 |
0.160 |
2.0 |
|
1ph 120 |
0.180 |
|||||||||
|
2IK6RGN-C |
2IK6RA-C |
6 |
1ph 220 |
50 |
90~1350 |
55 |
29 |
35 |
0.130 |
0.8 |
|
1ph 230 |
0.110 |
|||||||||
|
2IK6RGN-H |
2IK6RA-H |
6 |
1ph 220 |
60 |
90~1650 |
55 |
29 |
35 |
0.140 |
0.8 |
|
1ph 230 |
0.120 |
|||||||||
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
40 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
|
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
41 |
37 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
|
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
45 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
9 |
||
|
2IK6RGN-A 2IK6RGN-E 2IK6RGN-C 2IK6RGN-H |
2GN□K |
50Hz |
0.12 |
0.14 |
0.19 |
0.23 |
0.29 |
0.35 |
0.39 |
0.49 |
0.58 |
0.70 |
0.75 |
0.88 |
1.10 |
1.30 |
1.39 |
1.60 |
1.90 |
2.40 |
2.90 |
3.00 |
3.00 |
3.00 |
3.00 |
3.00 |
|
1.22 |
1.43 |
1.94 |
2.35 |
2.96 |
3.57 |
3.98 |
5.00 |
5.92 |
7.14 |
7.65 |
8.98 |
11.2 |
13.3 |
14.2 |
16.3 |
19.4 |
24.5 |
29.6 |
30.0 |
30.0 |
30.0 |
30.0 |
30.0 |
|||
|
60Hz |
0.10 |
0.12 |
0.16 |
0.19 |
0.24 |
0.29 |
0.32 |
0.41 |
0.49 |
0.58 |
0.62 |
0.73 |
0.88 |
1.10 |
1.15 |
1.30 |
1.60 |
2.00 |
2.40 |
2.60 |
3.00 |
3.00 |
3.00 |
3.00 |
||
|
1.02 |
1.22 |
1.63 |
1.94 |
2.45 |
2.96 |
3.26 |
4.18 |
5.00 |
5.92 |
6.32 |
7.45 |
8.98 |
11.2 |
11.7 |
13.3 |
16.3 |
20.4 |
24.5 |
2.65 |
30.0 |
30.0 |
30.0 |
30.0 |
|||
