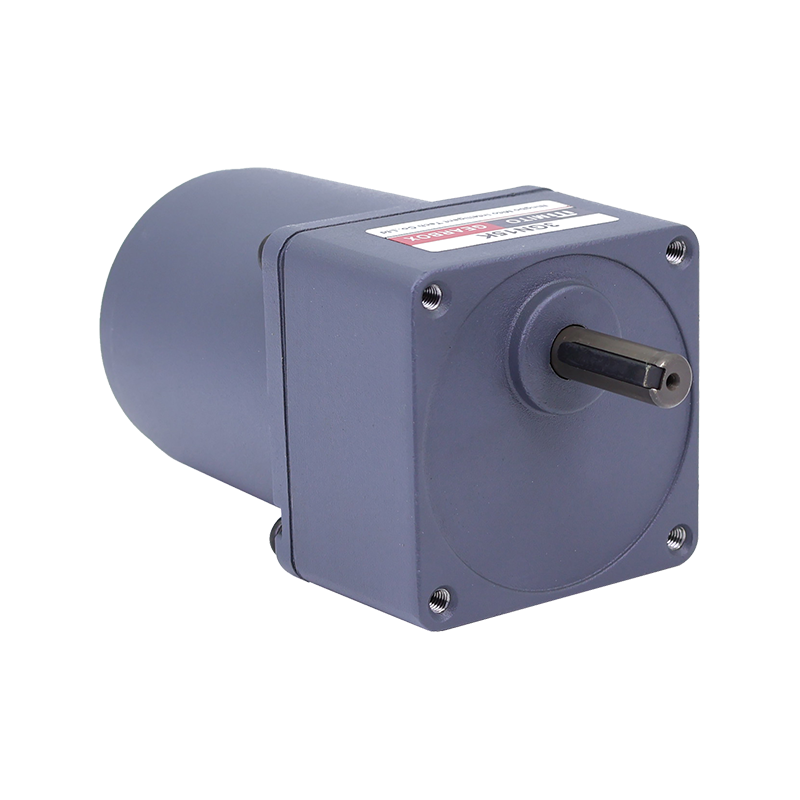

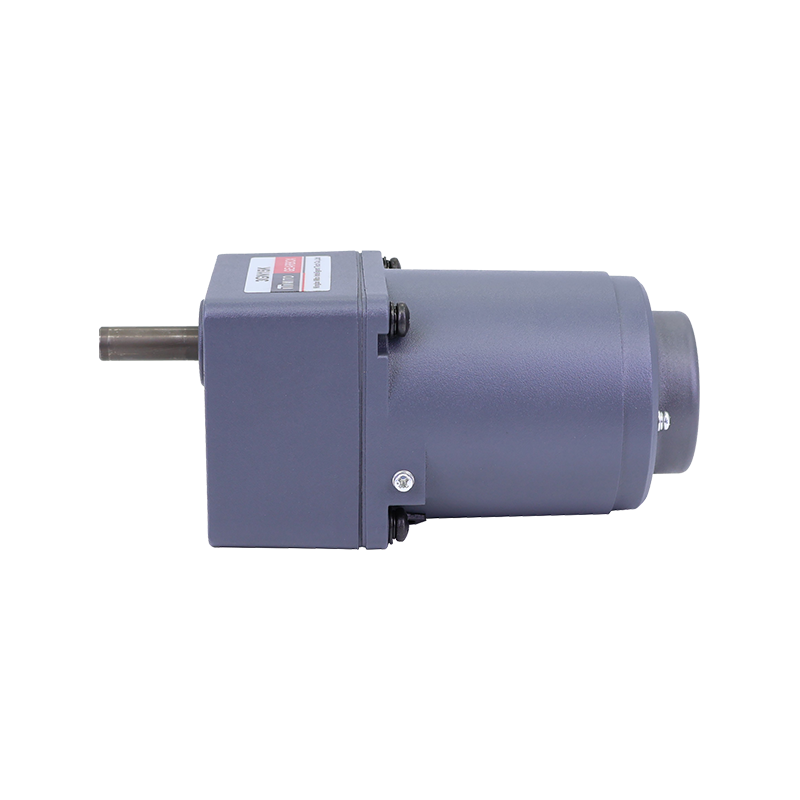

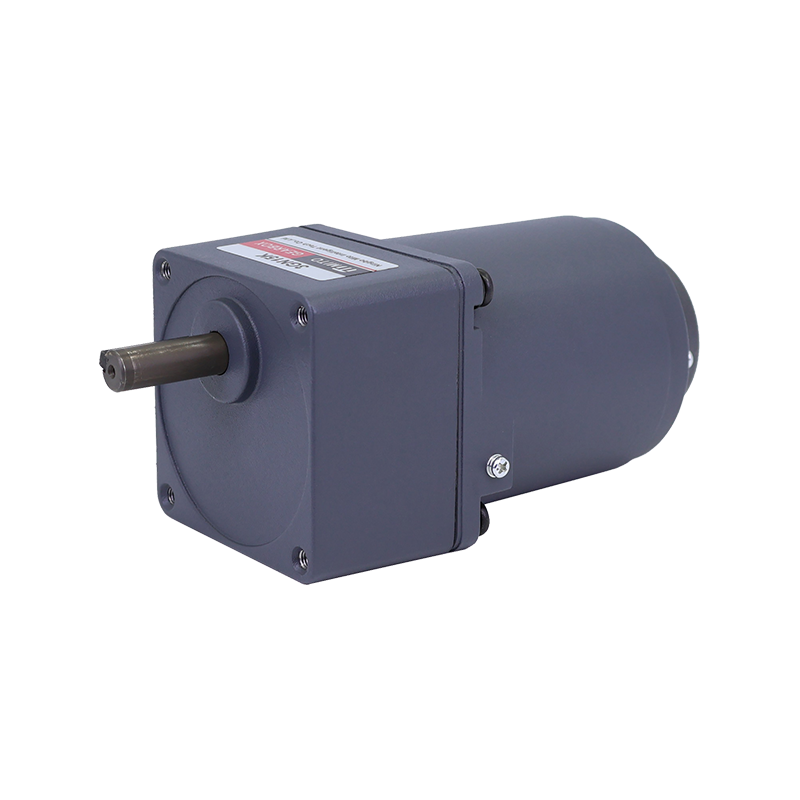

电机类型：3IK
功率：15W
电压： 110-380V
变速箱传动比： 3-200K
|
型号 ·类型 引出线型 |
输出功率 W |
电压 V |
频率 Hz |
调速范围 r/min |
容许转矩 |
启动转矩 mN.m |
电流 A |
运行电容 μF |
||
|
齿轮轴 |
圆轴 |
1200r/min mN.m |
90r/min mN.m |
|||||||
|
3IK15RGN-A |
3IK15RA-A |
15 |
1ph 100 |
50 |
90~1350 |
120 |
35 |
55 |
0.35 |
6.0 |
|
60 |
90~1650 |
0.33 |
||||||||
|
3IK15RGN-E |
3IK15RA-E |
15 |
1ph 110 |
60 |
90~1650 |
125 |
35 |
55 |
0.30 |
5.0 |
|
1ph 120 |
0.32 |
|||||||||
|
3IK15RGN-C |
3IK15RA-C |
15 |
1ph 220 |
50 |
90~1350 |
120 |
35 |
54 |
0.18 |
1.2 |
|
1ph 230 |
0.20 |
|||||||||
|
3IK15RGN-H |
3IK15RA-H |
15 |
1ph 220 |
60 |
90~1650 |
85 |
35 |
52 |
0.16 |
1.2 |
|
1ph 230 |
105 |
55 |
0.15 |
|||||||
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
40 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
|
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
41 |
37 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
|
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
45 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
9 |
||
|
3IK15RGN-A 31K15RGN-E 3IK15RGN-C 3IK15RGN-H |

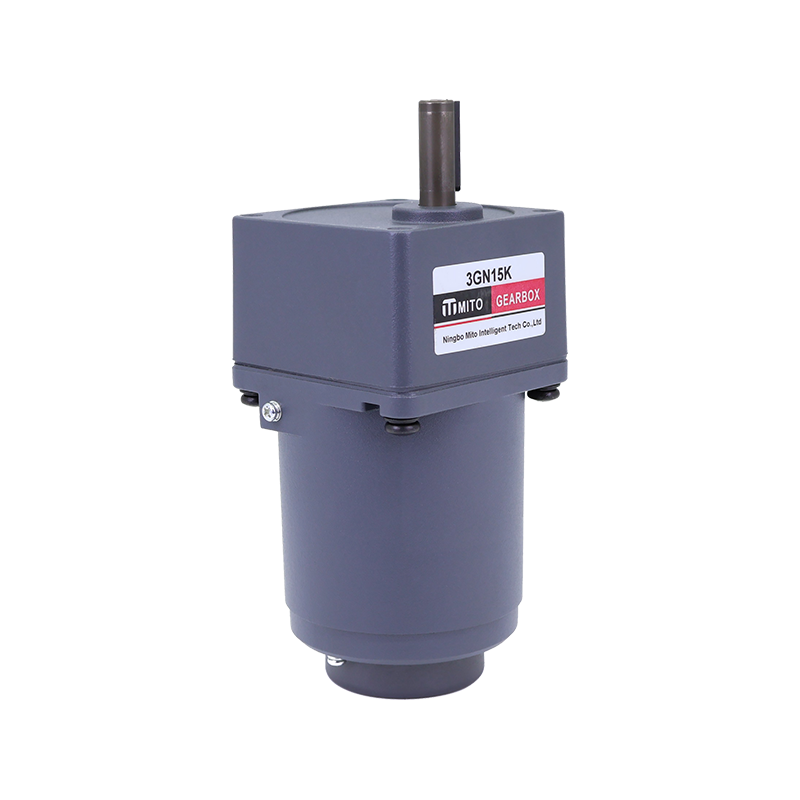

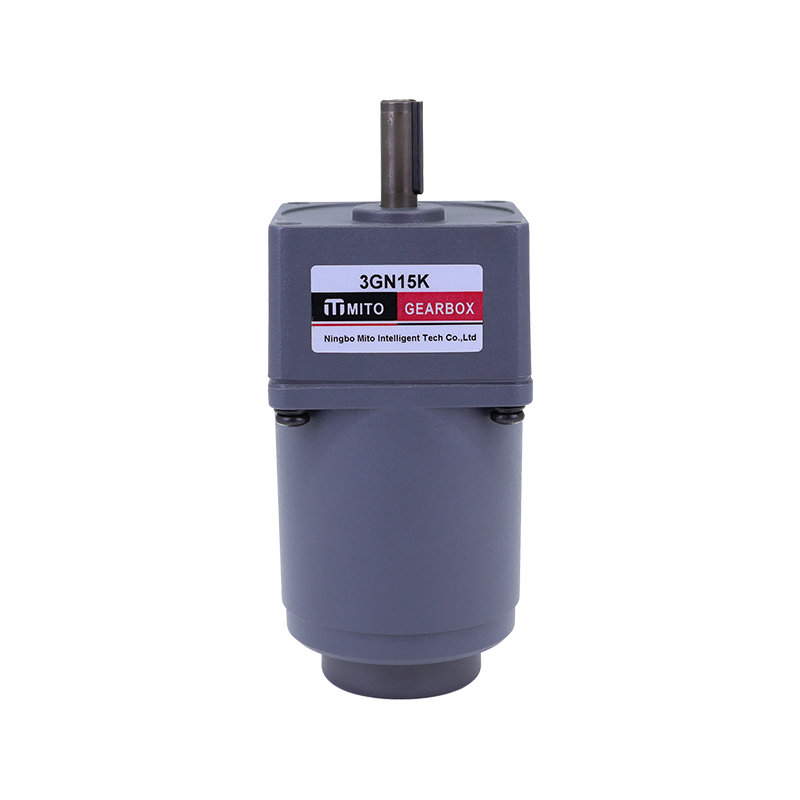

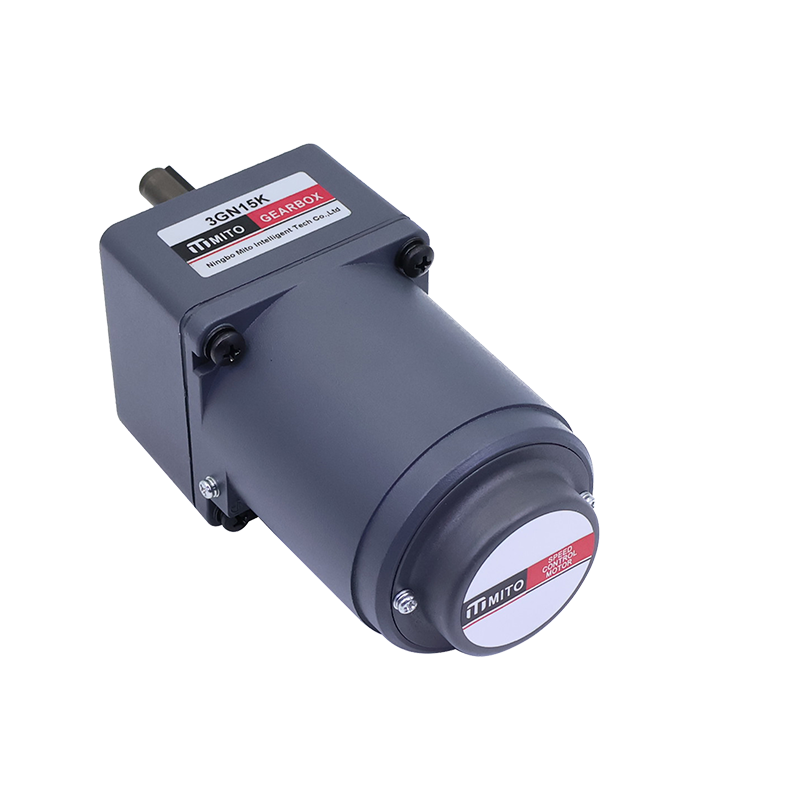

3GN□K |
50Hz |
0.30 |
0.36 |
0.51 |
0.61 |
0.76 |
0.91 |
0.97 |
1.30 |
1.50 |
1.80 |
1.94 |
2.30 |
2.70 |
3.30 |
3.48 |
4.10 |
5.00 |
5.00 |
5.00 |
5.00 |
5.00 |
5.00 |
5.00 |
5.00 |
|
3.06 |
3.67 |
5.20 |
6.22 |
7.75 |
9.28 |
9.90 |
13.2 |
15.3 |
18.3 |
19.8 |
23.4 |
27.5 |
33.7 |
35.5 |
41.8 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
|||
|
60Hz |
0.26 |
0.31 |
0.43 |
0.51 |
0.64 |
0.77 |
0.80 |
1.10 |
1.30 |
1.50 |
1.64 |
1.90 |
2.30 |
2.80 |
2.88 |
3.50 |
4.20 |
5.00 |
5.00 |
5.00 |
5.00 |
5.00 |
5.00 |
5.00 |
||
|
2.65 |
3.16 |
4.38 |
5.20 |
6.53 |
7.85 |
8.16 |
11.2 |
13.2 |
15.3 |
16.7 |
19.3 |
23.4 |
28.5 |
29.4 |
35.7 |
42.8 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
|||
