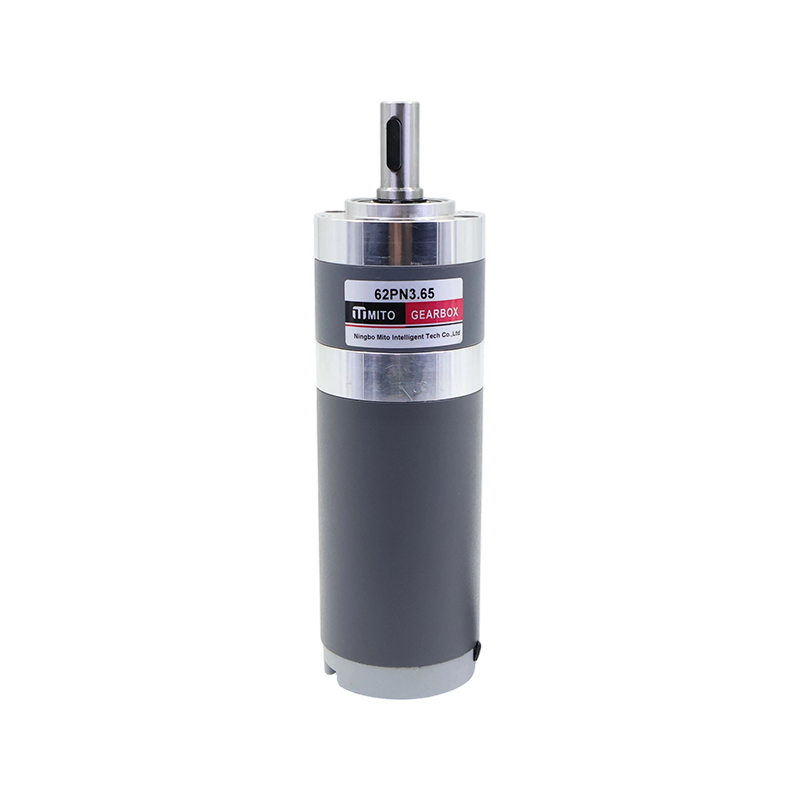

电机类型：M62DPN
功率：40W&60W&90W
电压： 24V
变速箱传动比： 3.65-392.98K
|
电机类型 |
减速箱型号 |
减速比 |

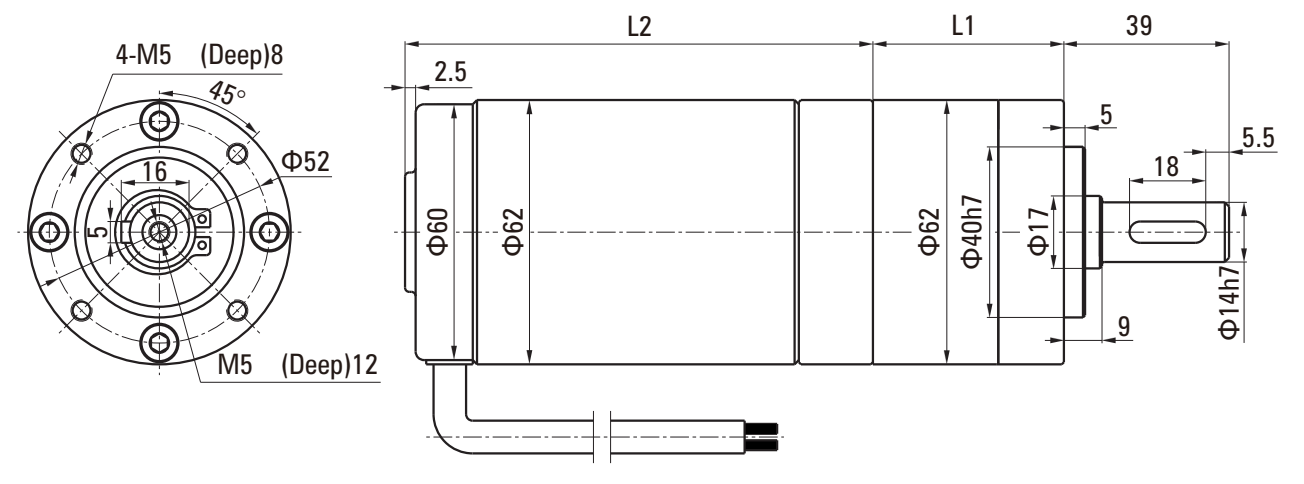

L尺寸(mm) |
|
M62DPN |
62PN□ |
3.65~8.63 |
45.1 |
|
13.53~58.22 |
62.7 |
||
|
67.08~392.98 |
80.3 |
|
电机类型 |
电压 V |
额定功率 |
空载电流 |
空载转速 |
额定电流 |
额定转速 |
额定转矩 |
电机寿命 H |
L₂ 尺寸 |
|
M62DPN2440-30S |
24 |
40 |
1.2 |
3500 |
2.5 |
3000 |
0.127 |
2000 |
110.5 |
|
M62DPN2460-30S |
24 |
60 |
1.2 |
3500 |
3.5 |
3000 |
0.191 |
2000 |
121.5 |
|
M62DPN2490-30S |
24 |
90 |
1.5 |
3700 |
5.5 |
3000 |
0.287 |
2000 |
133.5 |
|
减速比 |
3.65 |
5.36 |
6.55 |
8.63 |
13.53 |
18.92 |
24.65 |
28.05 |
33.92 |
44.69 |
58.22 |
67.08 |
81.11 |
|
输出轴转速 r/min |
822 |
560 |
458 |
348 |
222 |
159 |
122 |
107 |
89 |
67 |
52 |
45 |
37 |
|
允许力矩 N.m |
0.63 |
0.92 |
1.13 |
1.48 |
2.09 |
2.93 |
3.81 |
4.34 |
5.25 |
6.91 |
9.01 |
9.35 |
11.31 |
|
减速级数 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
|
减速比 |
91.36 |
102.88 |
118.98 |
127.74 |
145.36 |
165.64 |
191.56 |
231.61 |
301.68 |
392.98 |
|
输出轴转速 r/min |
33 |
29 |
25 |
24 |
21 |
18 |
16 |
13 |
9.9 |
7.6 |
|
允许力矩 N.m |
12.74 |
14.34 |
16.58 |
17.81 |
20.27 |
23.10 |
26.71 |
32.29 |
42.06 |
50.00 |
|
减速级数 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
