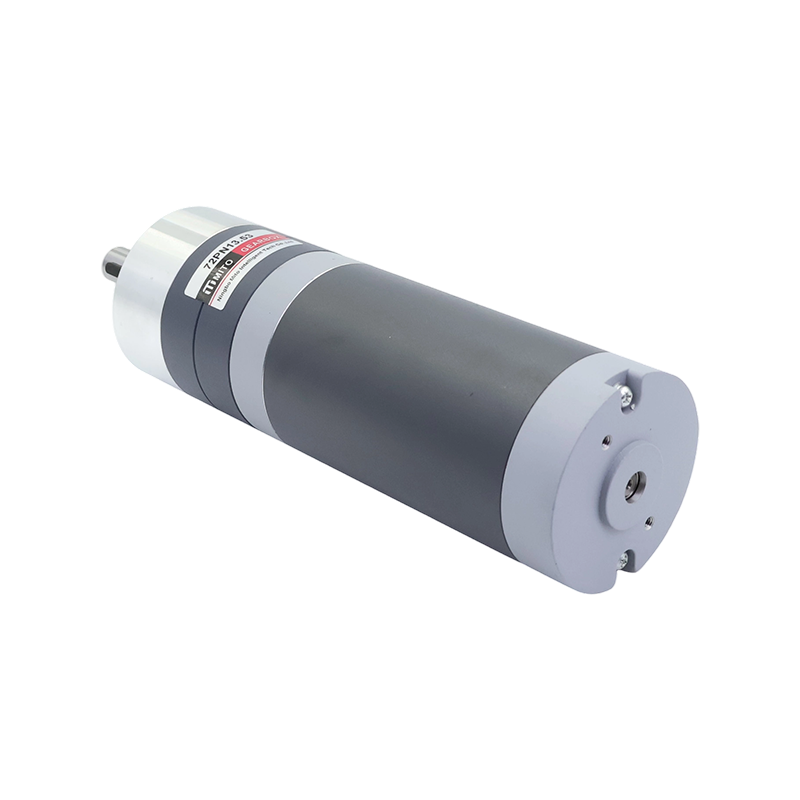

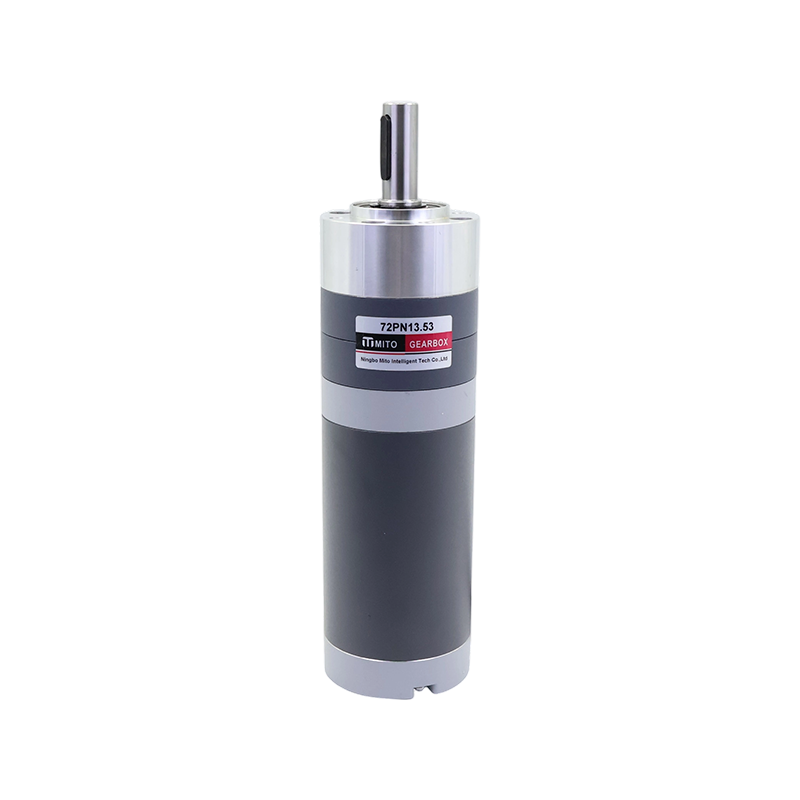

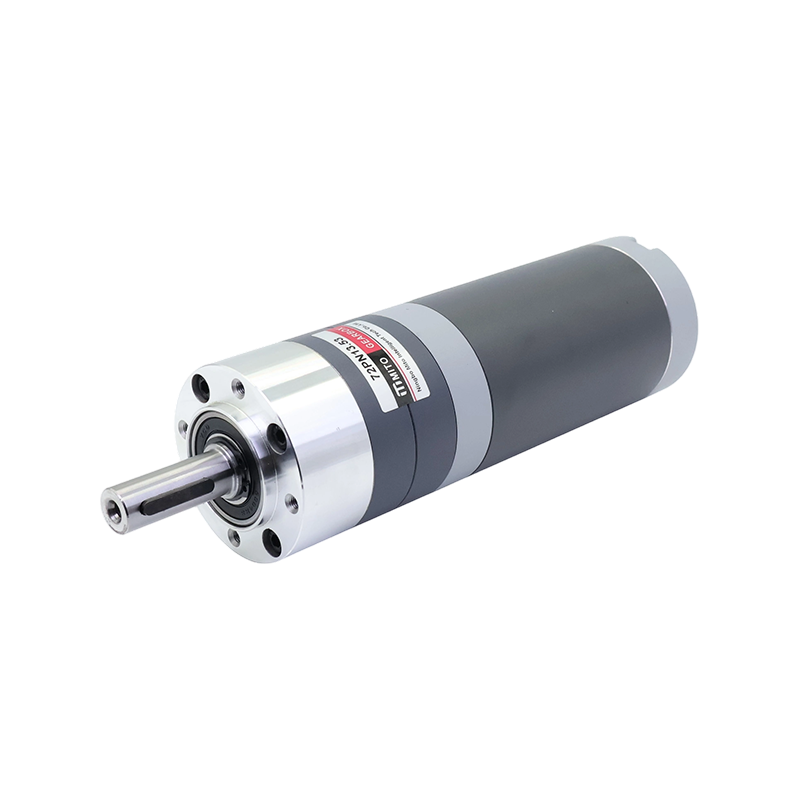

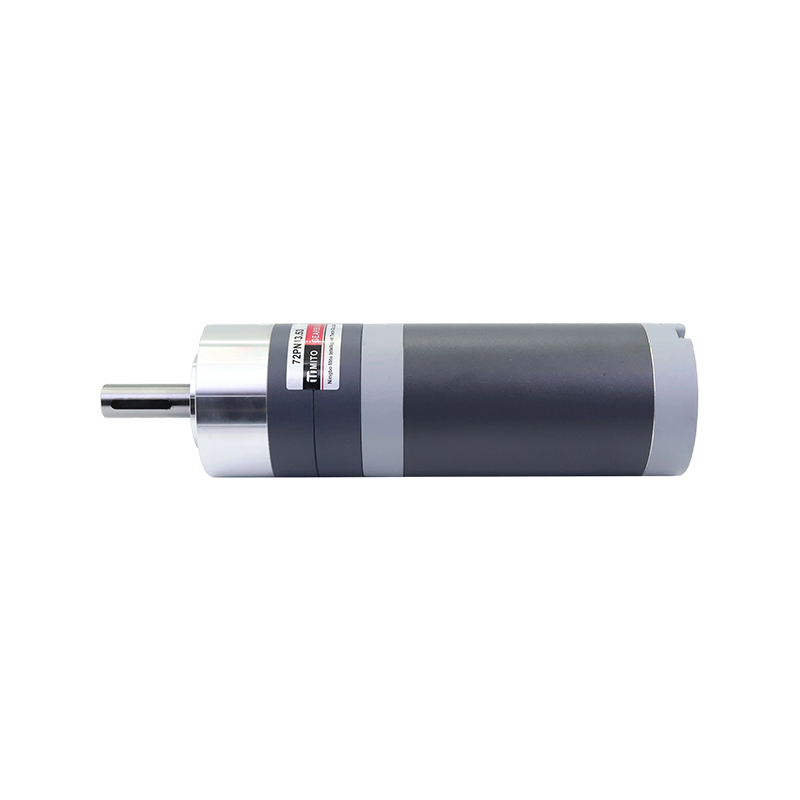

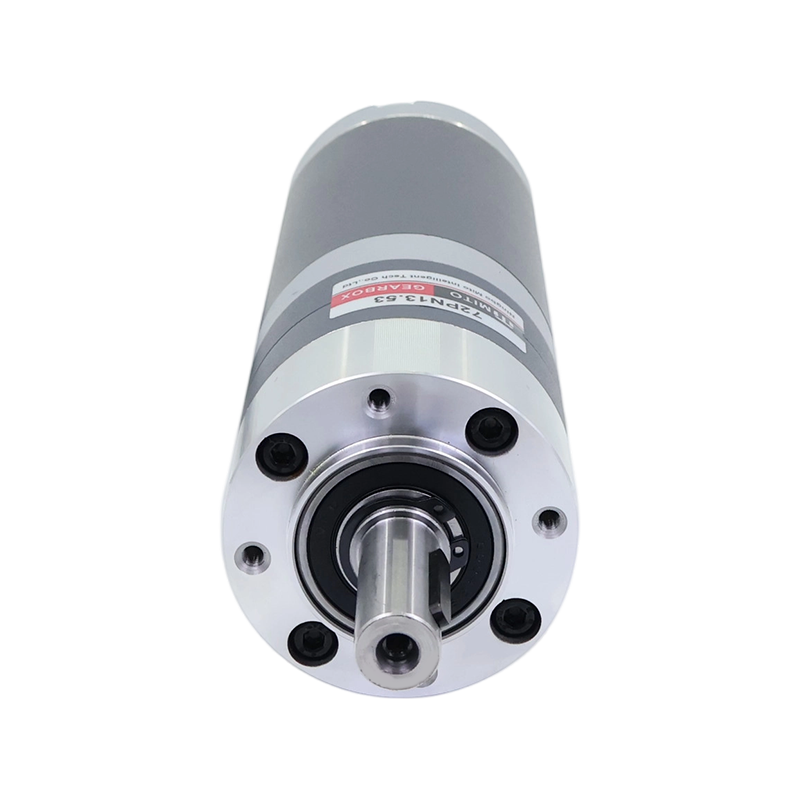

电机类型：M72DPN
功率：60W&90W&120W
电压： 12-24V
变速箱传动比： 3.65-392.98K
|

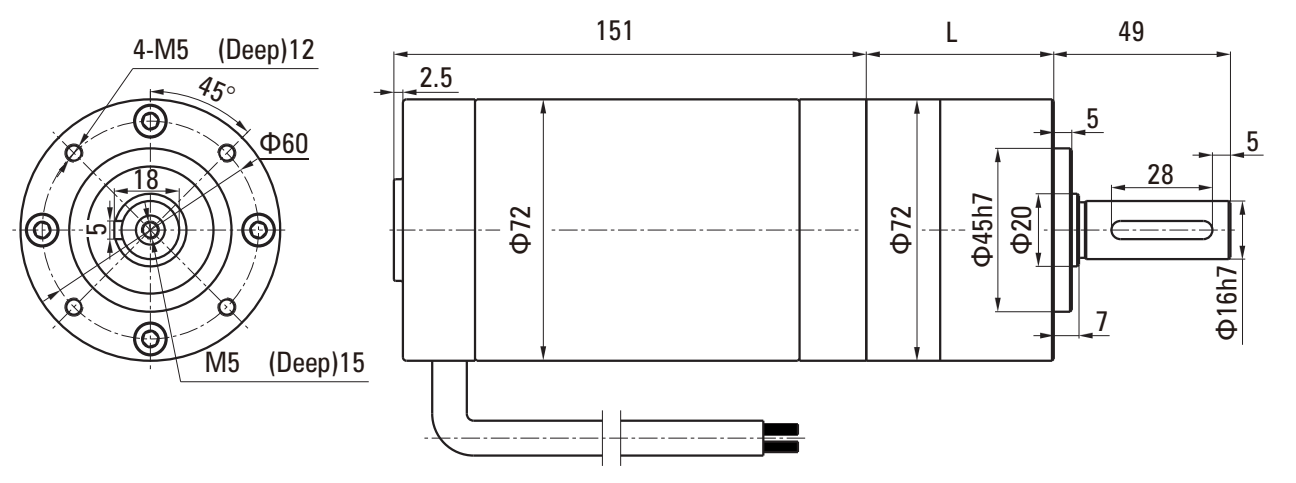

电机类型 |
减速箱型号 |
减速比 |
L尺寸(mm) |
|
M72DPN |
72PN□ |
3.65~8.63 |
52.00 |
|
13.53~58.22 |
72.15 |
||
|
67.08~392.98 |
92.30 |
|
电机类型 |
电压 V |
额定功率 |
空载电流 |
空载转速 |
额定电流 |
额定转速 |
额定转矩 |
电机寿命 H |
|
M72DPN1260-30S |
12 |
60 |
2.0 |
3500 |
7.2 |
3000 |
0.191 |
2000 |
|
M72DPN2490-30S |
24 |
90 |
2.0 |
3400 |
5.5 |
3000 |
0.287 |
2000 |
|
M72DPN24120-30S |
24 |
120 |
2.0 |
3500 |
7.2 |
3000 |
0.382 |
2000 |
|
减速比 |
3.65 |
5.36 |
6.55 |
8.63 |
13.53 |
18.92 |
24.65 |
28.05 |
33.92 |
44.69 |
58.22 |
67.08 |
81.11 |
|
输出轴转速 r/min |
822 |
560 |
458 |
348 |
222 |
159 |
122 |
107 |
89 |
67 |
52 |
45 |
37 |
|
允许力矩 N.m |
0.94 |
1.38 |
1.69 |
2.23 |
3.15 |
4.40 |
5.73 |
6.52 |
7.89 |
10.39 |
13.53 |
14.05 |
16.99 |
|
减速级数 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
|
减速比 |
91.36 |
102.88 |
118.98 |
127.74 |
145.36 |
165.64 |
191.56 |
231.61 |
301.68 |
392.98 |
|
输出轴转速 r/min |
33 |
29 |
25 |
24 |
21 |
18 |
16 |
13 |
9.9 |
7.6 |
|
允许力矩 N.m |
19.14 |
21.55 |
24.93 |
26.76 |
30.45 |
34.70 |
40.13 |
48.52 |
63.20 |
82.33 |
|
减速级数 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
