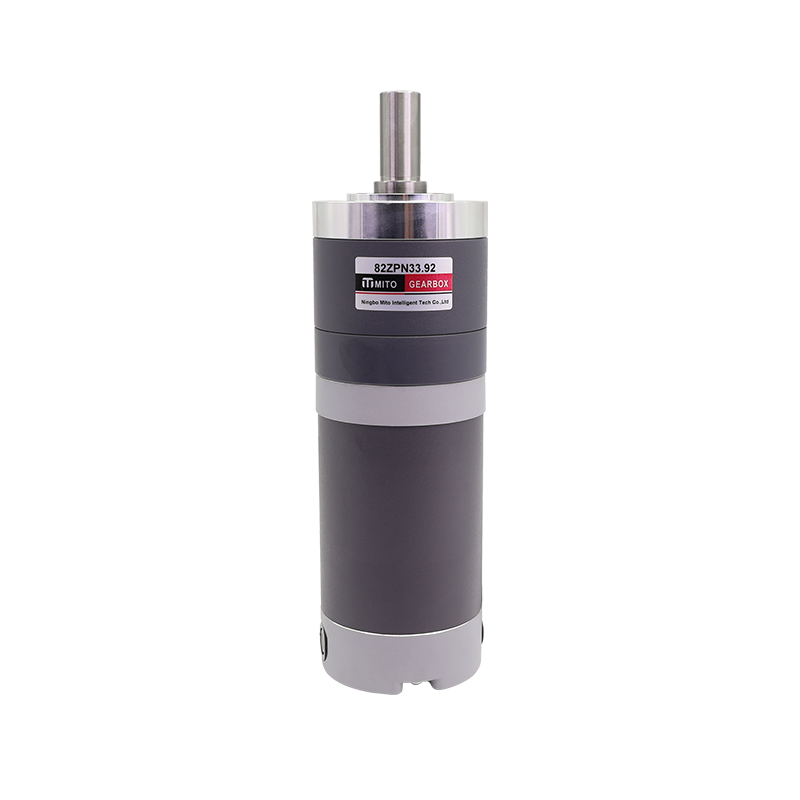

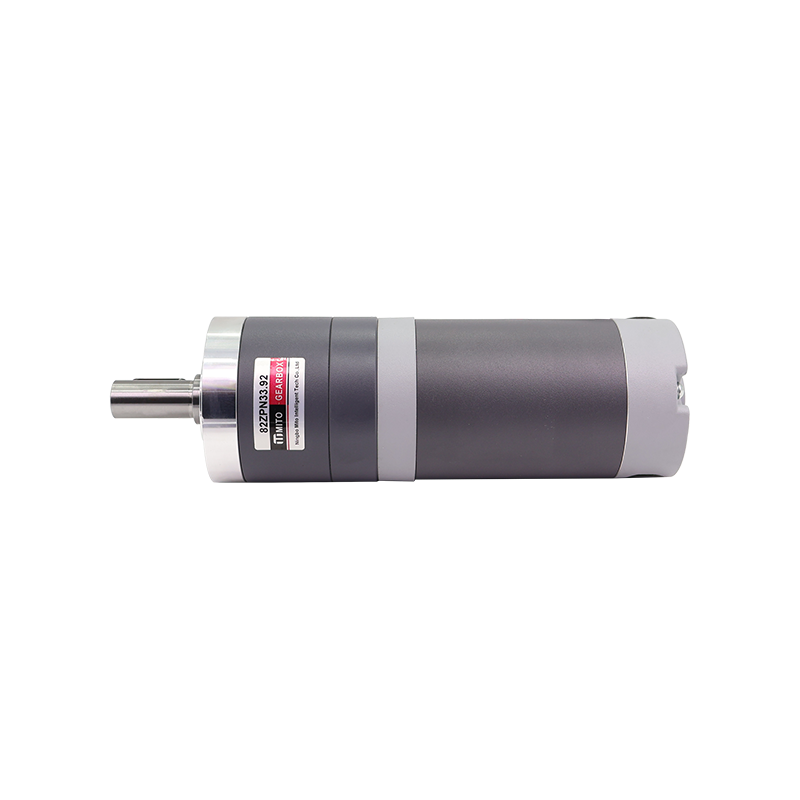

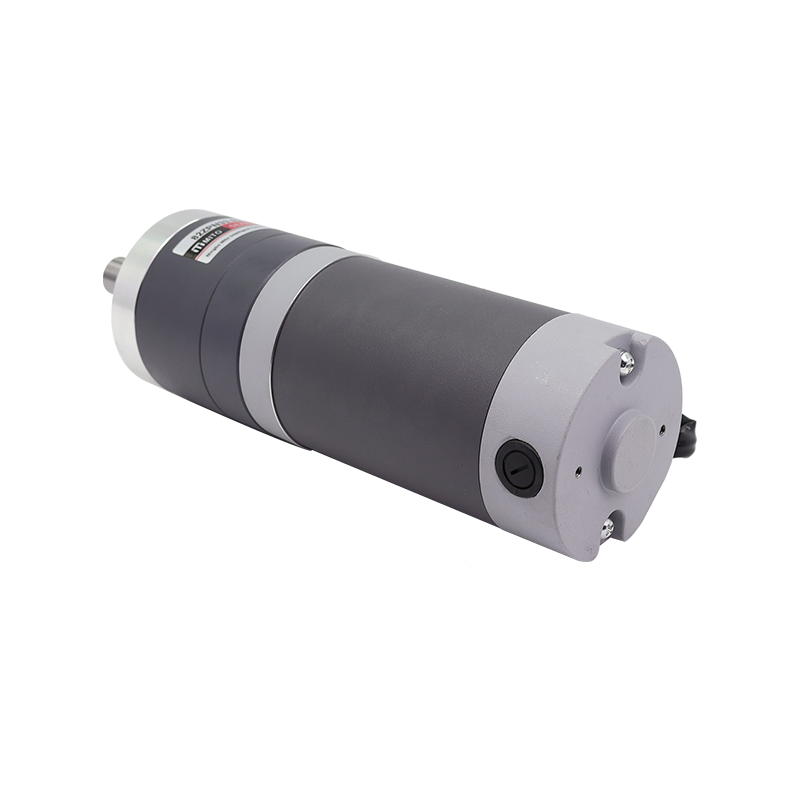

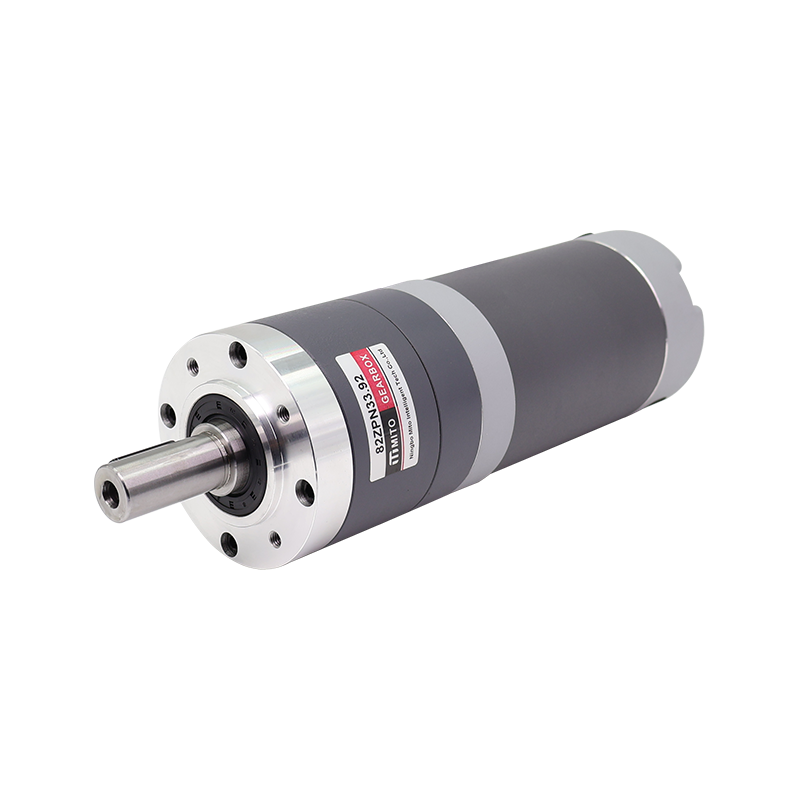

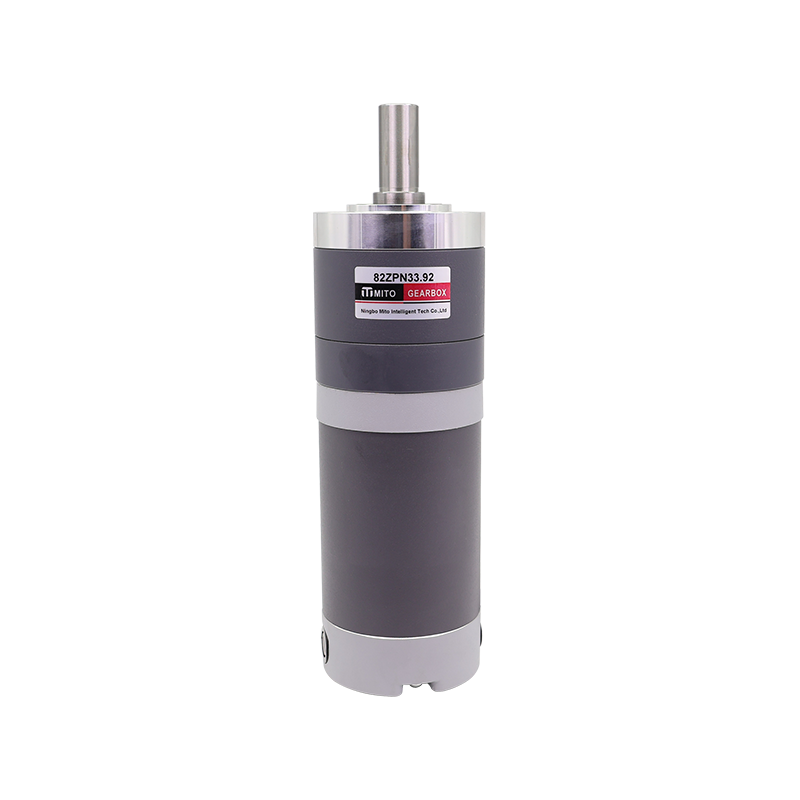

电机类型：M82DPN
功率：90W&120W&180W
电压： 12-48V
变速箱传动比： 3.65-392.98K
|
电机类型 |
减速箱型号 |
减速比 |

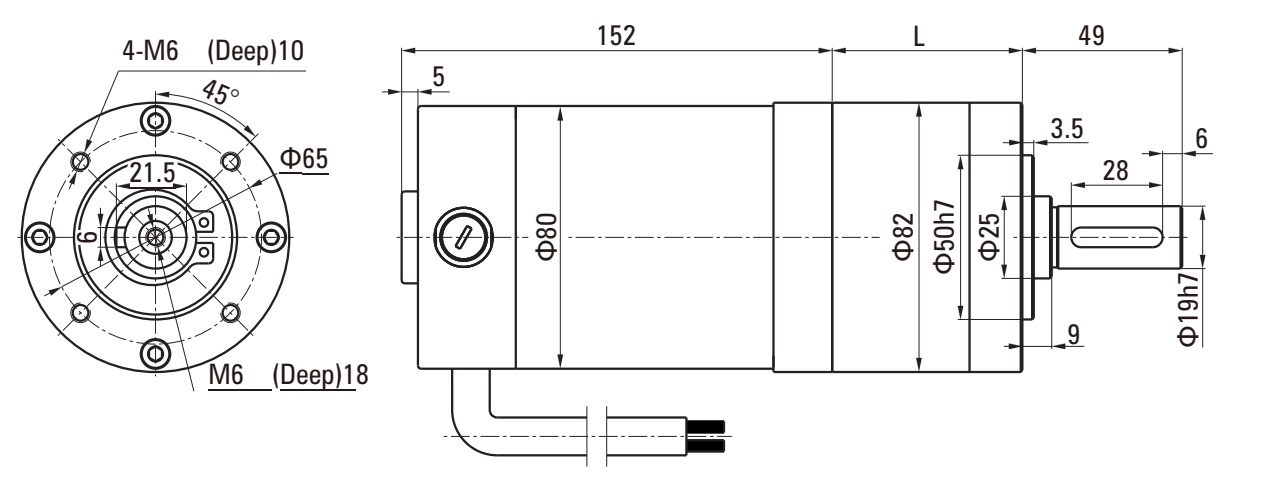

L尺寸(mm) |
|
M82DPN |
82PN□ |
3.65~8.63 |
63.70 |
|
13.53~58.22 |
80.50 |
||
|
67.08~392.98 |
103.2 |
|
电机类型 |
电压 V |
额定功率 |
空载电流 |
空载转速 |
额定电流 |
额定转速 |
额定转矩 |
电机寿命 H |
|
M82DPN1290-30S |
12 |
90 |
2.5 |
3500 |
10.5 |
3000 |
0.287 |
2000 |
|
M82DPN24120-30S |
24 |
120 |
2.0 |
3400 |
7.20 |
3000 |
0.382 |
2000 |
|
M82DPN48180-30S |
48 |
180 |
1.5 |
3400 |
5.50 |
3000 |
0.573 |
2000 |
|
减速比 |
3.65 |
5.36 |
6.55 |
8.63 |
13.53 |
18.92 |
24.65 |
28.05 |
33.92 |
44.69 |
58.22 |
67.08 |
81.11 |
|
输出轴转速 r/min |
822 |
560 |
458 |
348 |
222 |
159 |
122 |
107 |
89 |
67 |
52 |
45 |
37 |
|
允许力矩 N.m |
1.30 |
1.80 |
2.30 |
3.00 |
4.20 |
5.90 |
7.60 |
8.70 |
10.5 |
13.8 |
18.0 |
18.7 |
22.6 |
|
减速级数 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
|
减速比 |
91.36 |
102.88 |
118.98 |
127.74 |
145.36 |
165.64 |
191.56 |
231.61 |
301.68 |
392.98 |
|
输出轴转速 r/min |
33 |
29 |
25 |
24 |
21 |
18 |
16 |
13 |
9.9 |
7.6 |
|
允许力矩 N.m |
25.5 |
28.7 |
33.2 |
35.6 |
40.5 |
46.2 |
53.4 |
64.6 |
84.0 |
84.0 |
|
减速级数 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
