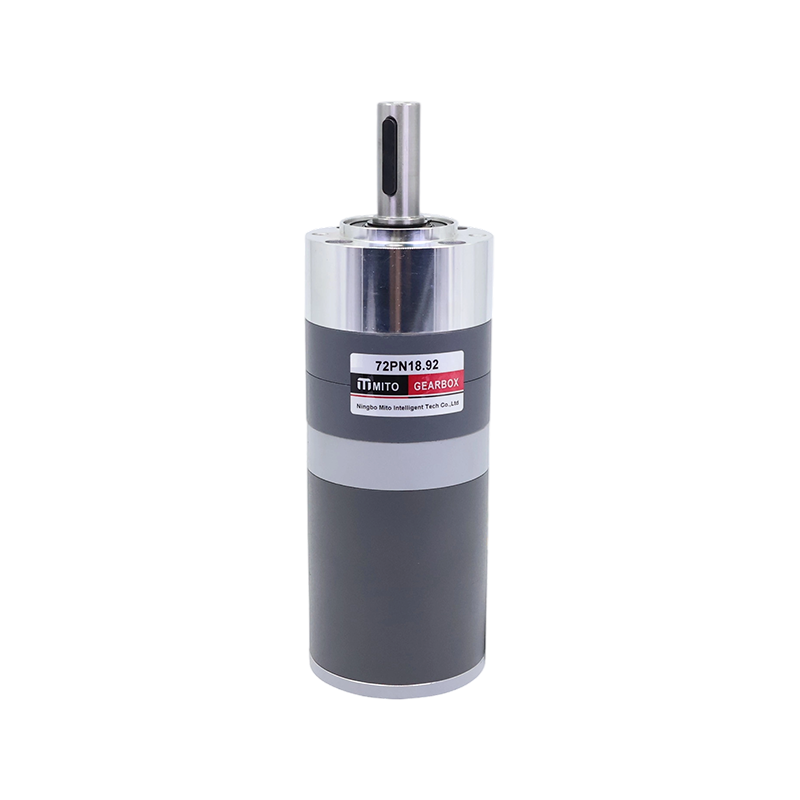

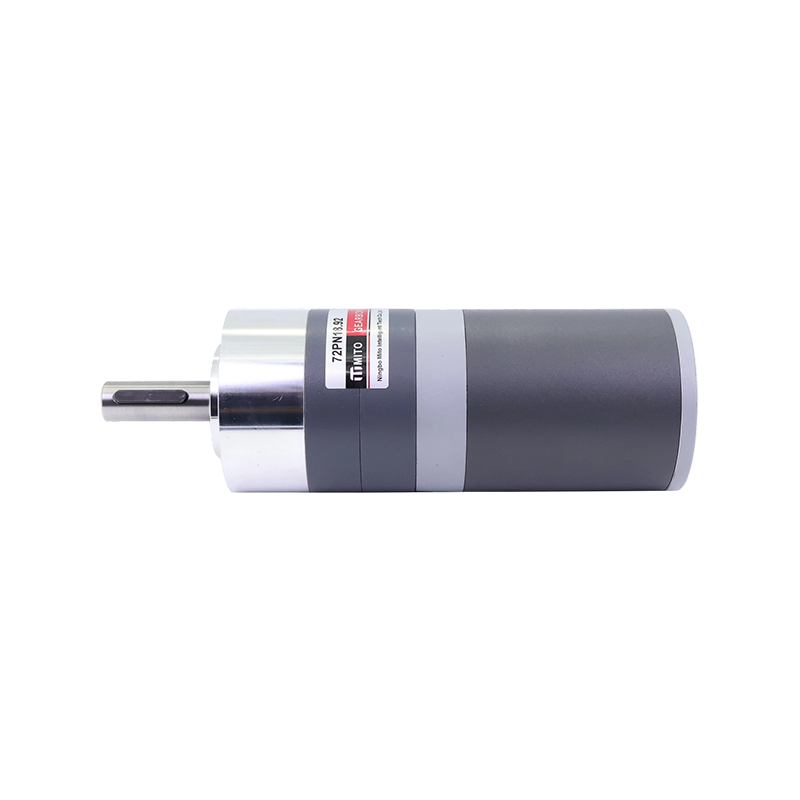

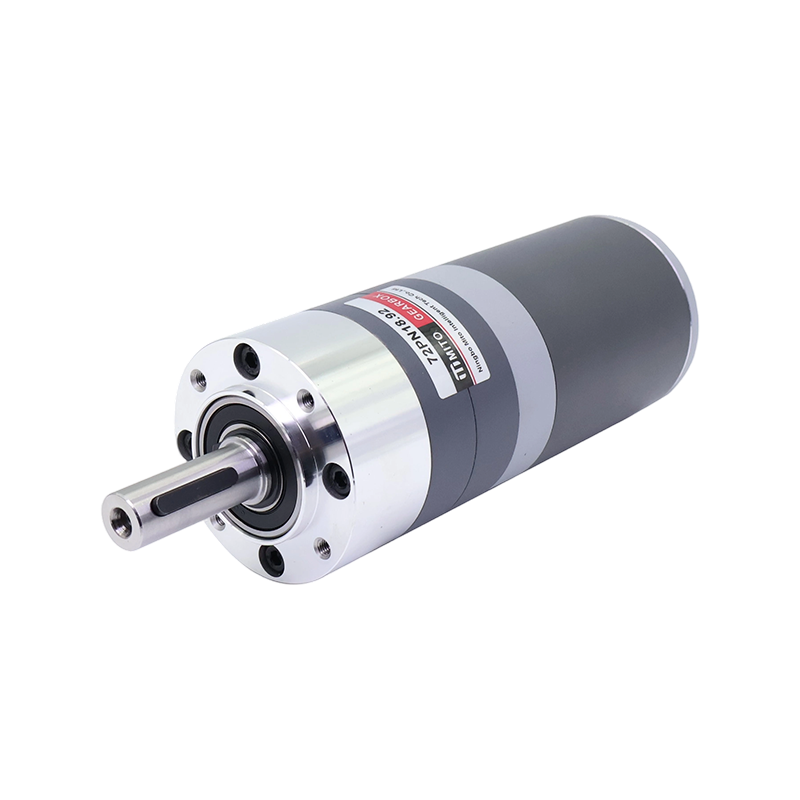

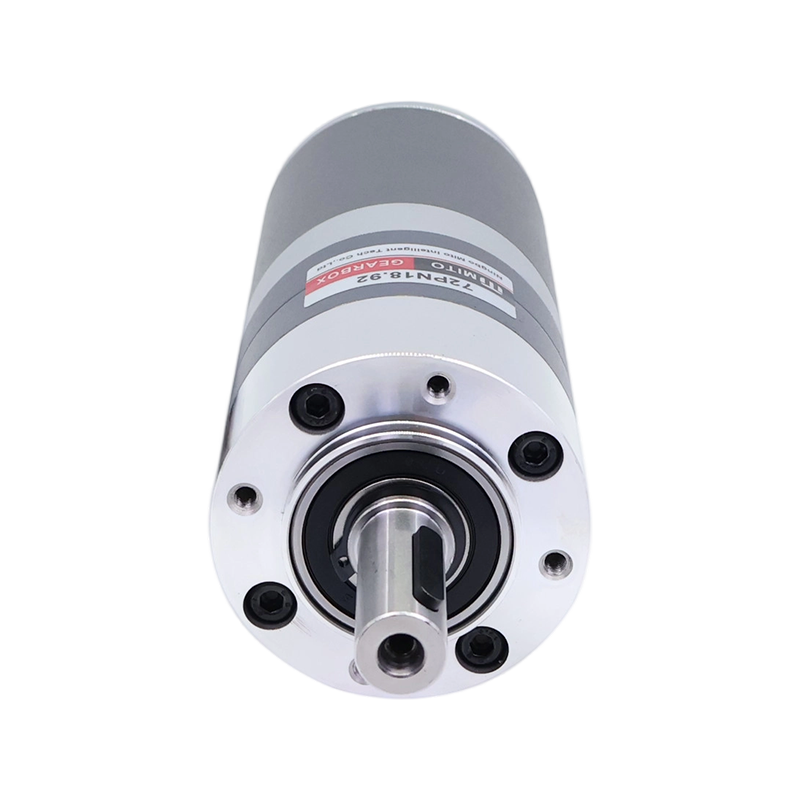

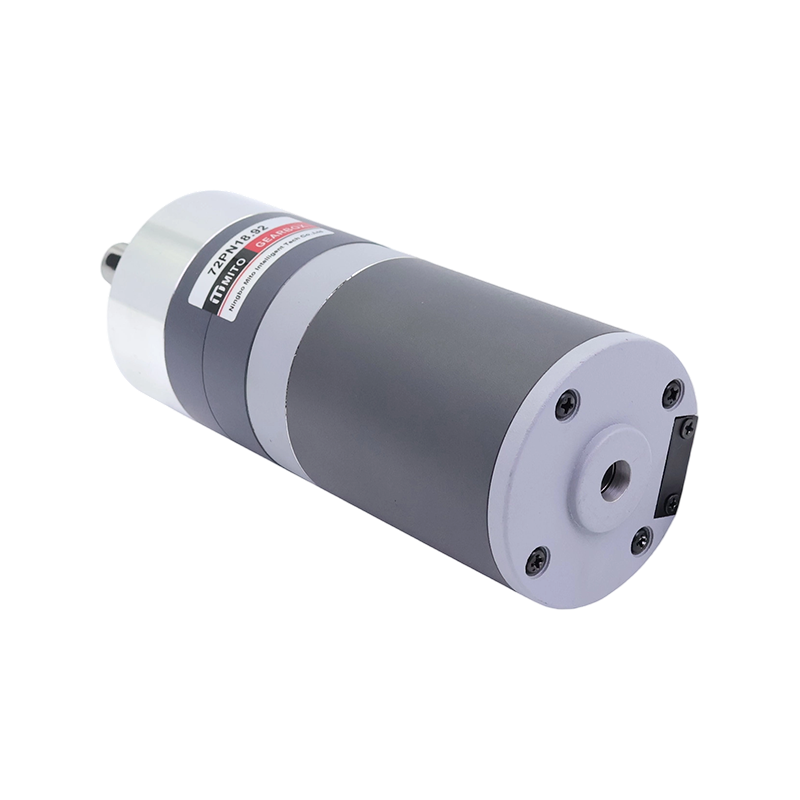

电机类型：M72BLDPN
功率：120W&150W
电压： 24V
变速箱传动比： 3.65-392.98K
|

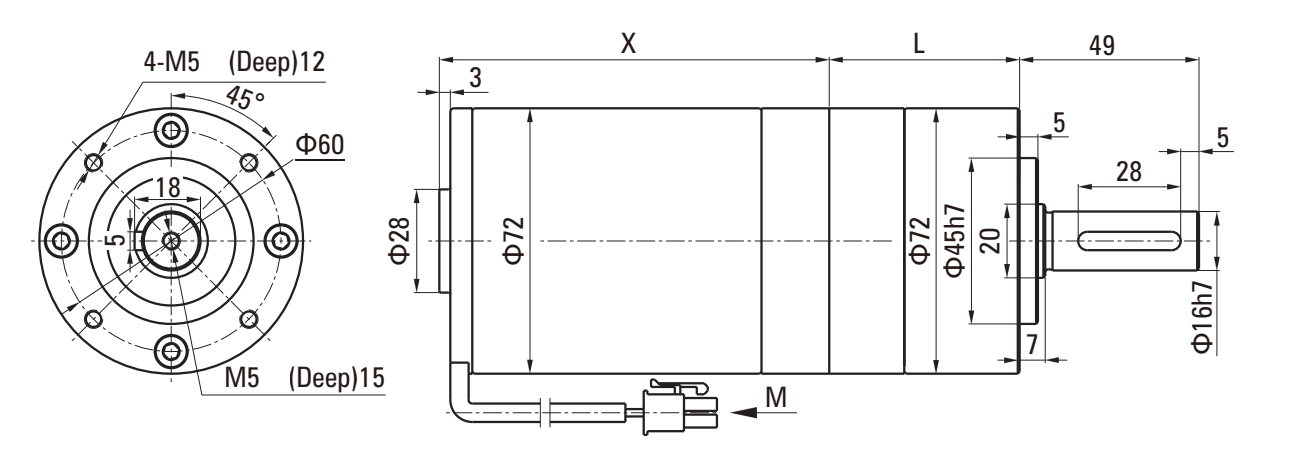

电机类型 |
X尺寸(mm) |
减速箱型号 |
减速比 |
L尺寸(mm) |
|
M72BLDPN24120-30S |
106.5 |
72PN□ |
3.65~8.63 |
52.0 |
|
13.53~58.22 |
72.15 |
|||
|
M72BLDPN24150-30S |
129.5 |
|||
|
67.08~392.98 |
92.3 |
|
电机类型 |
电压 |
额定功率 |
额定电流 |
额定转速 |
额定转矩 |
防护等级 |
|
M72BLDPN24120-30S |
24 |
120 |
6.6 |
3000 |
0.382 |
20 |
|
M72BLDPN24150-30S |
24 |
150 |
8.5 |
3000 |
0.478 |
20 |
|
减速比 |
3.65 |
5.36 |
6.55 |
8.63 |
13.53 |
18.92 |
24.65 |
28.05 |
33.92 |
44.69 |
58.22 |
67.08 |
81.11 |
|
输出轴转速 r/min |
822 |
560 |
458 |
348 |
222 |
159 |
122 |
107 |
88 |
67 |
52 |
45 |
37 |
|
允许力矩 N.m |
1.25 |
1.84 |
2.25 |
2.97 |
4.19 |
5.85 |
7.63 |
8.68 |
10.50 |
13.83 |
18.01 |
18.71 |
22.62 |
|
减速级数 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
|
减速比 |
91.36 |
102.88 |
118.98 |
127.74 |
145.36 |
165.64 |
191.56 |
231.61 |
301.68 |
392.98 |
|
输出轴转速 r/min |
33 |
29 |
25 |
23 |
21 |
18 |
16 |
13 |
10 |
8 |
|
允许力矩 N.m |
25.48 |
28.69 |
33.18 |
35.62 |
40.50 |
46.19 |
53.42 |
64.59 |
84.00 |
84.00 |
|
减速级数 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
