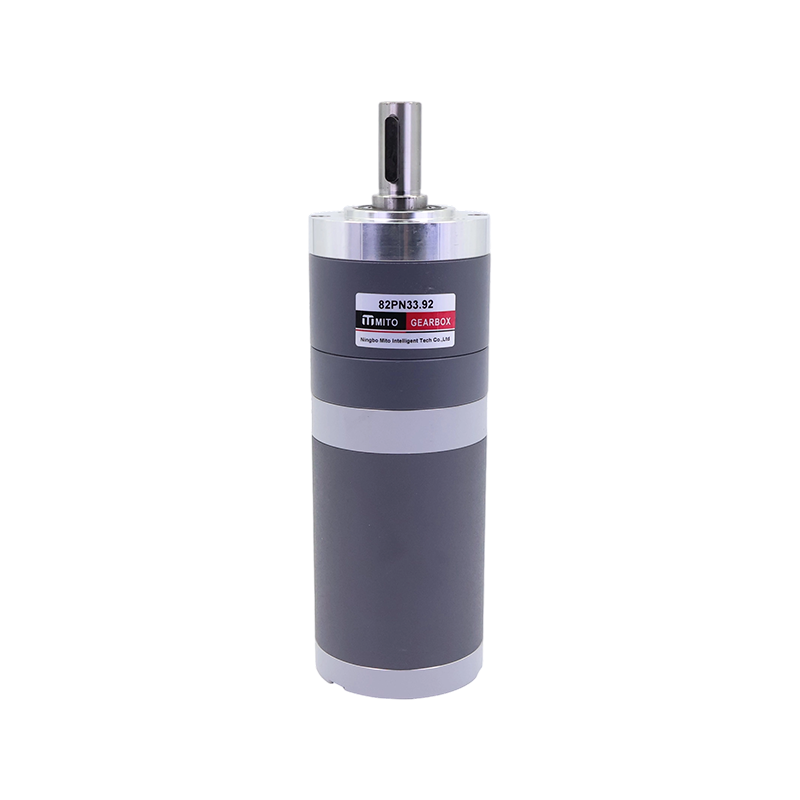

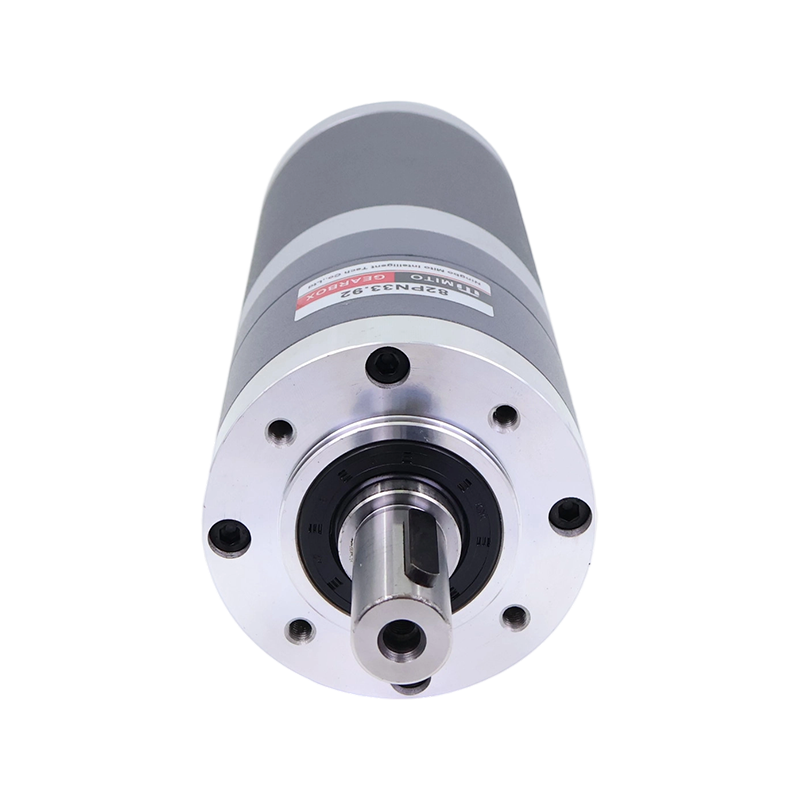

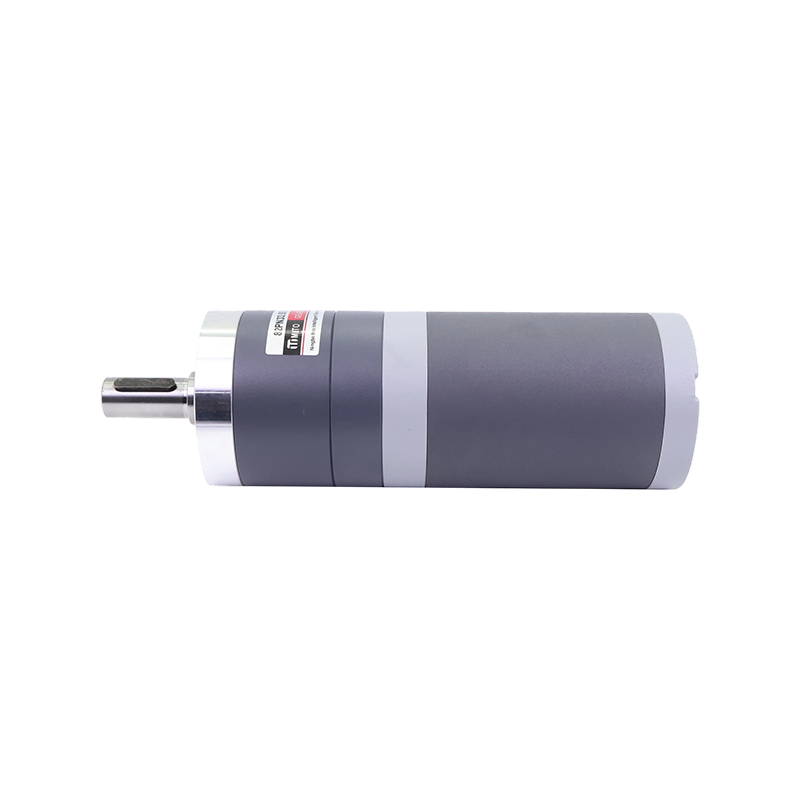

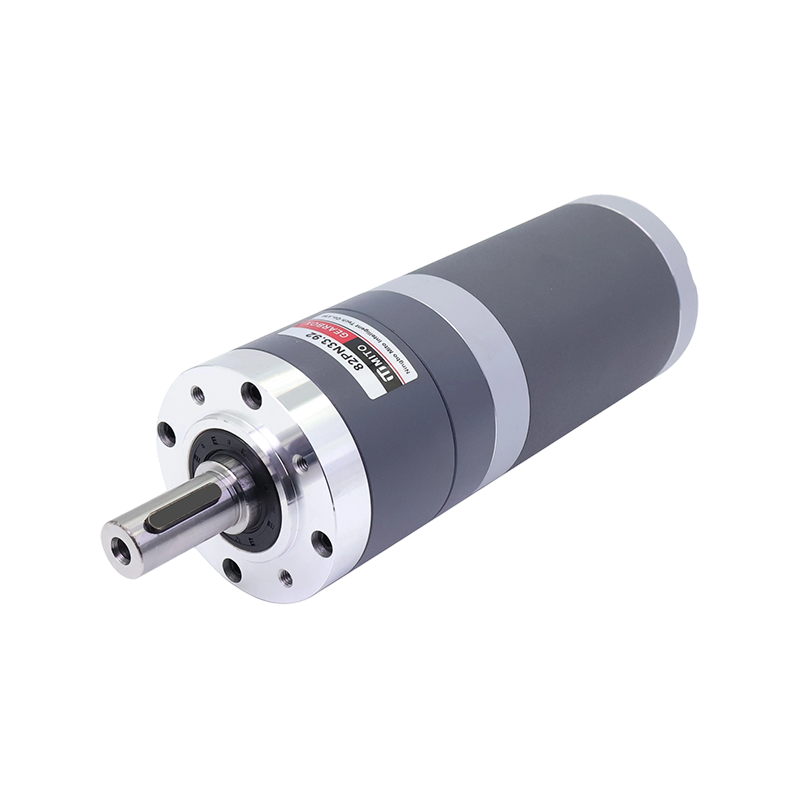

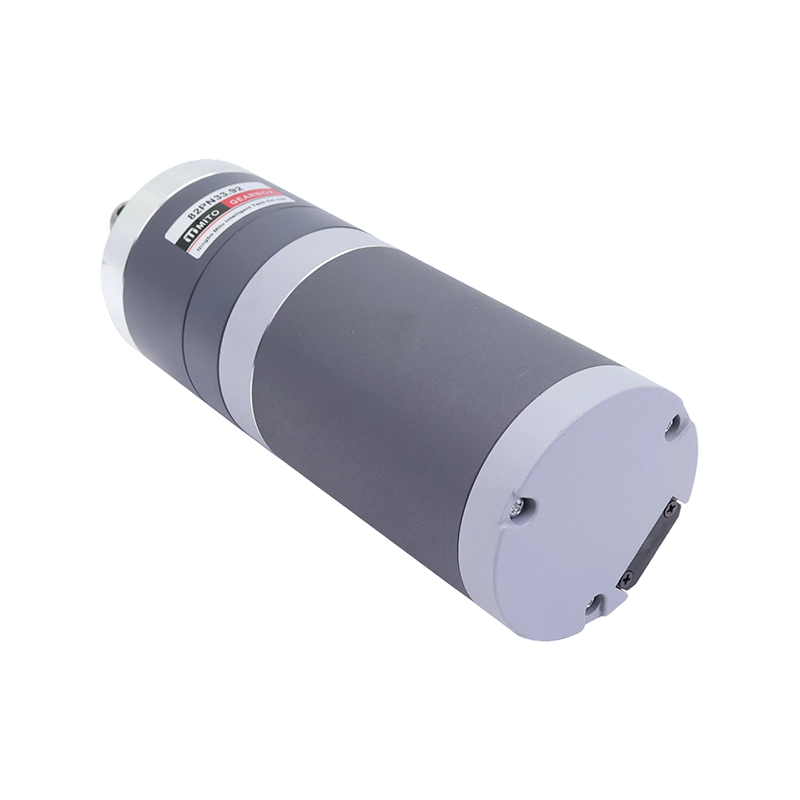

电机类型：M82BLDPN
功率：200W&300W
电压： 24V
变速箱传动比： 3.65-392.98K
|

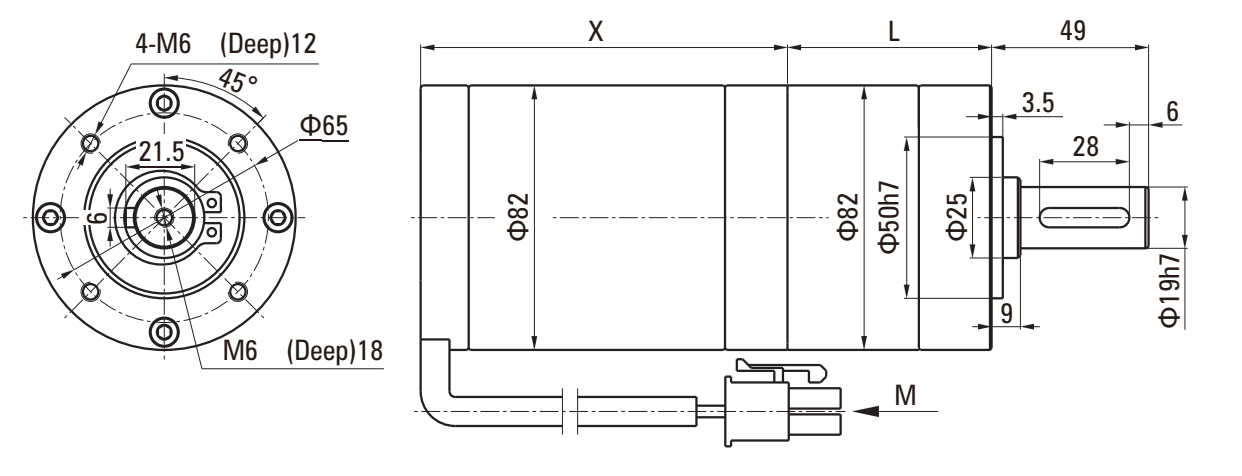

电机类型 |
X尺寸(mm) |
减速箱型号 |
减速比 |
L尺寸(mm) |
|
M82BLDPN24200-30S |
114.5 |
82PN□ |
3.65~8.63 |
63.70 |
|
13.53~58.22 |
80.50 |
|||
|
M82BLDPN24300-30S |
136.5 |
|||
|
67.08~392.98 |
103.2 |
|
电机类型 |
电压 |
额定功率 |
额定电流 |
额定转速 |
额定转矩 |
防护等级 |
|
M82BLDPN24200-30S |
24 |
200 |
12 |
3000 |
0.637 |
20 |
|
M82BLDPN24300-30S |
24 |
300 |
18 |
3000 |
0.955 |
20 |
|
减速比 |
3.65 |
5.36 |
6.55 |
8.63 |
13.53 |
18.92 |
24.65 |
28.05 |
33.92 |
44.69 |
58.22 |
67.08 |
81.11 |
|
输出轴转速 r/min |
822 |
560 |
458 |
348 |
222 |
159 |
122 |
107 |
88 |
67 |
52 |
45 |
37 |
|
允许力矩 N.m |
2.09 |
3.07 |
3.75 |
4.94 |
6.98 |
9.76 |
12.71 |
14.47 |
17.49 |
23.05 |
30.02 |
31.18 |
37.70 |
|
减速级数 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
3 |
3 |
|
减速比 |
91.36 |
102.88 |
118.98 |
127.74 |
145.36 |
165.64 |
191.56 |
231.61 |
301.68 |
392.98 |
|
输出轴转速 r/min |
33 |
29 |
25 |
23 |
21 |
18 |
16 |
13 |
10 |
8 |
|
允许力矩 N.m |
42.46 |
47.82 |
55.30 |
59.37 |
67.56 |
76.98 |
89.03 |
107.64 |
120.0 |
120.0 |
|
减速级数 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
