电机类型：5IK
功率：60W
电压： 110-380V
变速箱传动比： 3-180K
|
型号 ·类型 上段：齿轮轴 下段()内：光轴 |
输出功率 W |
电压 V |
频率 Hz |
电流 A |
启动转矩 mN.m |
额定转矩 mN.m |
额定转速 r/min |
运行电容 μF |
|
|

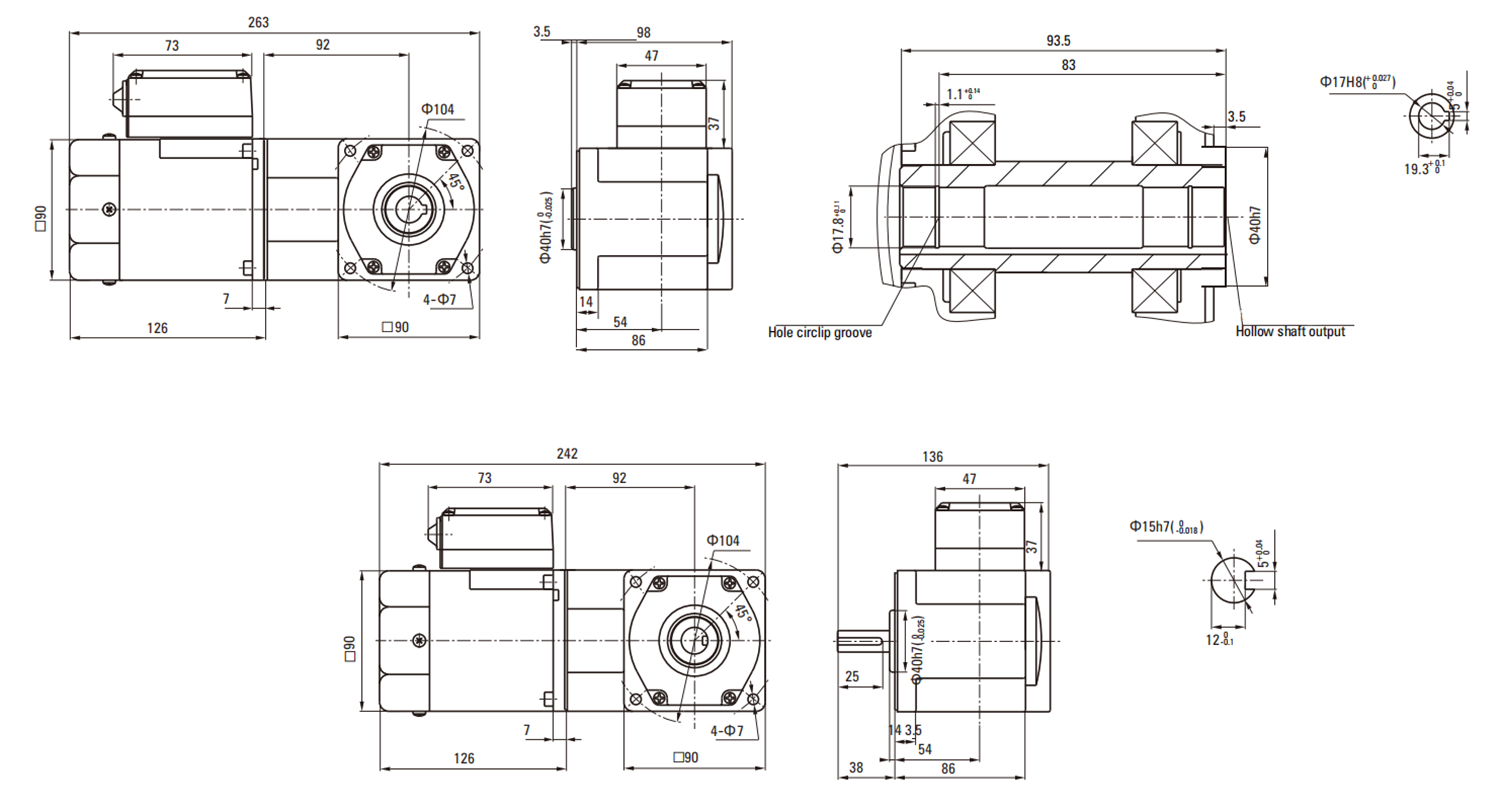

引出线型 尺寸① |
接线盒型 尺寸② |
||||||||
|
5IK60GU-AF |
5IK60GU-AFT |
60 |
1ph 100 |
50 |
1.00 |
320 |
470 |
1250 |
20 |
|
60 |
1.10 |
380 |
1550 |
||||||
|
5IK60GU-EF |
5IK60GU-EFT |
60 |
1ph 110 |
60 |
0.80 |
300 |
380 |
1550 |
12 |
|
1ph 120 |
0.85 |
||||||||
|
5IK60GU-CF |
5IK60GU-CFT |
60 |
1ph 220 |
50 |
0.50 |
340 |
470 |
1250 |
4.0 |
|
1ph 230 |
0.55 |
||||||||
|
5IK60GU-HF |
5IK60GU-HFT |
60 |
1ph 220 |
60 |
0.50 |
340 |
380 |
1550 |
4.0 |
|
1ph 230 |
0.55 |
||||||||
|
5IK60GU-SF |
5IK60GU-SFT |
60 |
3ph 220 |
50 |
0.45 |
1000 |
470 |
1250 |
- |
|
60 |
0.40 |
800 |
380 |
1550 |
|||||
|
5IK60GU-S3F |
5IK60GU-S3FT |
60 |
3ph 380 |
50 |
0.26 |
1000 |
470 |
1250 |
- |
|
60 |
0.23 |
800 |
380 |
1550 |
|||||
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
||
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
42 |
30 |
25 |
20 |
16 |
15 |
12 |
10 |
8 |
||
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
|||
| 5IK60GU-AF□ 5IK60GU-F□ 5IK60GU-CF□ 5IK60GU-HF□ 5IK60GU-SF□ 5IK60GU-S3F□ |
5GU□RC 5GU□RT |
容许转矩 |
50Hz |
0.75 |
0.90 |
1.25 |
1.50 |
2.37 |
2.76 |
3.06 |
3.95 |
4.73 |
5.51 |
6.13 |
7.89 |
9.47 |
10.2 |
14.2 |
17.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
|
7.37 |
8.84 |
12.3 |
14.7 |
24.2 |
27.0 |
30.0 |
40.3 |
48.3 |
54.0 |
60.0 |
80.5 |
96.6 |
104 |
145 |
174 |
200 |
200 |
200 |
200 |
200 |
200 |
||||
|
60Hz |
0.63 |
0.75 |
1.04 |
1.25 |
1.91 |
2.30 |
2.55 |
3.18 |
3.82 |
4.59 |
5.11 |
6.36 |
7.64 |
8.25 |
11.5 |
13.7 |
17.2 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
|||
|
6.14 |
7.37 |
10.2 |
12.3 |
19.5 |
22.5 |
25.0 |
32.5 |
39.0 |
45.0 |
50.0 |
64.9 |
77.9 |
84.1 |
117 |
140 |
175 |
200 |
200 |
200 |
200 |
200 |
||||
