电机类型：5IK
功率：90W
电压： 110-380V
变速箱传动比： 3-180K
|
型号 ·类型 上段：齿轮轴 下段()内：光轴 |
输出功率 W |
电压 V |
频率 Hz |
电流 A |
启动转矩 mN.m |
额定转矩 mN.m |
额定转速 r/min |
运行电容 μF |
|
|

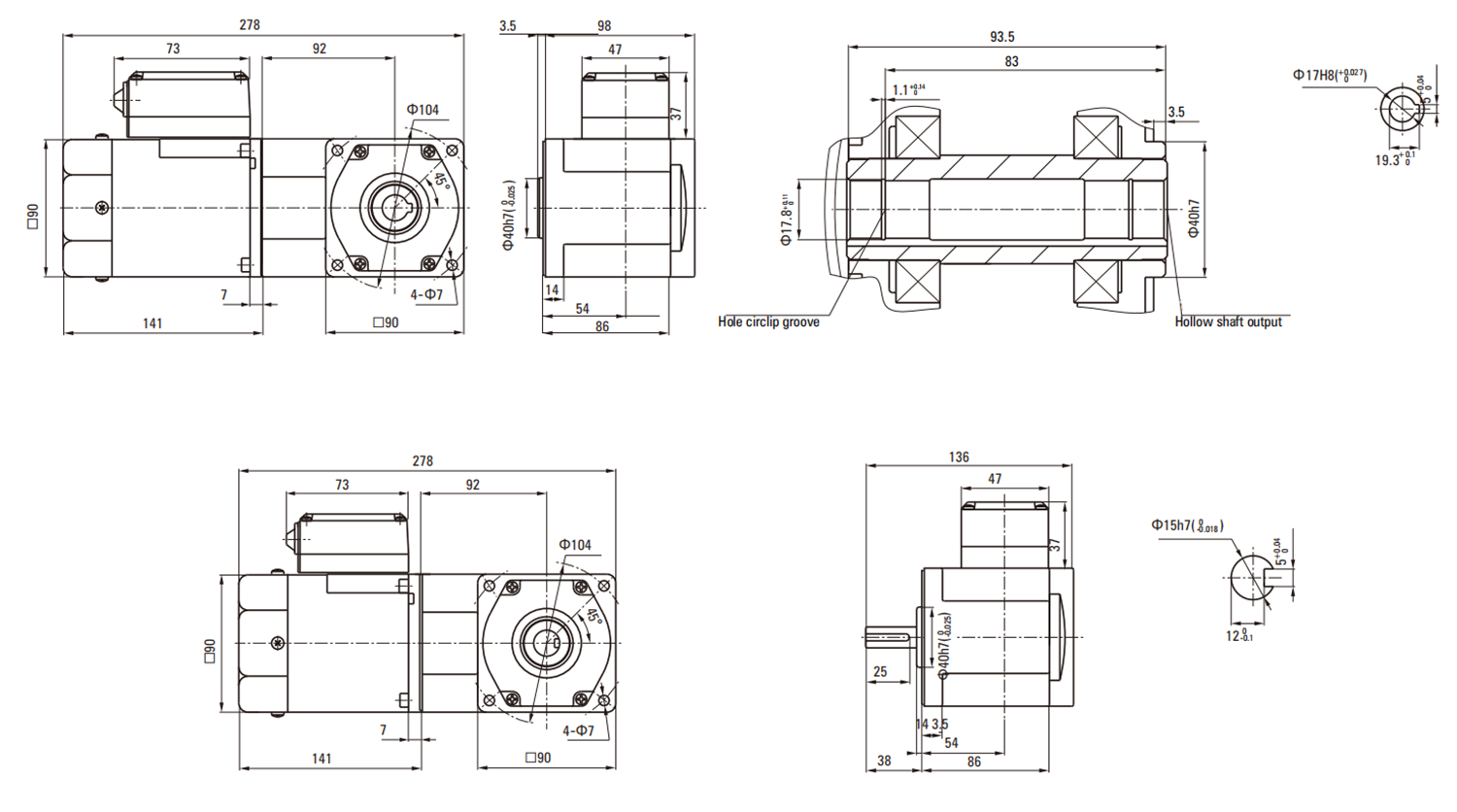

引出线型 尺寸① |
接线盒型 尺寸② |
||||||||
|
5IK90GU-AF |
5IK90GU-AFT |
90 |
1ph 100 |
50 |
1.55 |
450 |
700 |
1250 |
25 |
|
60 |
1.85 |
570 |
1550 |
||||||
|
5IK90GU-EF |
5IK90GU-EFT |
90 |
1ph 110 |
60 |
1.40 |
500 |
570 |
1550 |
20 |
|
1ph 120 |
1.45 |
||||||||
|
5IK90GU-CF |
5IK90GU-CFT |
90 |
1ph 220 |
50 |
0.72 |
450 |
700 |
1250 |
5.0 |
|
1ph 230 |
0.70 |
||||||||
|
5IK90GU-HF |
5IK90GU-HFT |
90 |
1ph 220 |
60 |
0.71 |
450 |
570 |
1550 |
5.0 |
|
1ph 230 |
0.75 |
||||||||
|
5IK90GU-SF |
5IK90GU-SFT |
90 |
3ph 220 |
50 |
0.60 |
1350 |
700 |
1250 |
- |
|
60 |
0.55 |
1100 |
570 |
1550 |
|||||
|
5IK90GU-S3F |
5IK90GU-S3FT |
90 |
3ph 380 |
50 |
0.35 |
1350 |
700 |
1250 |
- |
|
60 |
0.32 |
1100 |
570 |
1550 |
|||||
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
||
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
42 |
30 |
25 |
20 |
16 |
15 |
12 |
10 |
8 |
||
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
|||
|
5IK90GU-AF□ 5IK90GUEF□ 5IK90GU-CF□ 5IK90GUHF□ 5IK90GUSF□ 5IK90GUS3F□ |
5GU□RC 5GU□RT |
容许转矩 |
50Hz |
1.13 |
1.35 |
1.88 |
2.26 |
3.55 |
3.76 |
4.18 |
5.92 |
7.10 |
7.52 |
8.35 |
11.8 |
14.2 |
15.3 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
|
11.1 |
13.3 |
18.4 |
22.1 |
36.2 |
36.8 |
40.9 |
60.4 |
72.5 |
73.7 |
81.9 |
121 |
145 |
157 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
||||
|
60Hz |
0.94 |
1.13 |
1.57 |
1.88 |
2.86 |
3.13 |
3.48 |
4.77 |
5.73 |
6.27 |
6.96 |
9.54 |
11.5 |
12.4 |
17.2 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
20.0 |
|||
|
9.21 |
11.1 |
15.4 |
18.4 |
29.2 |
30.7 |
34.1 |
48.7 |
58.4 |
61.4 |
68.2 |
97.4 |
117 |
126 |
175 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
||||
