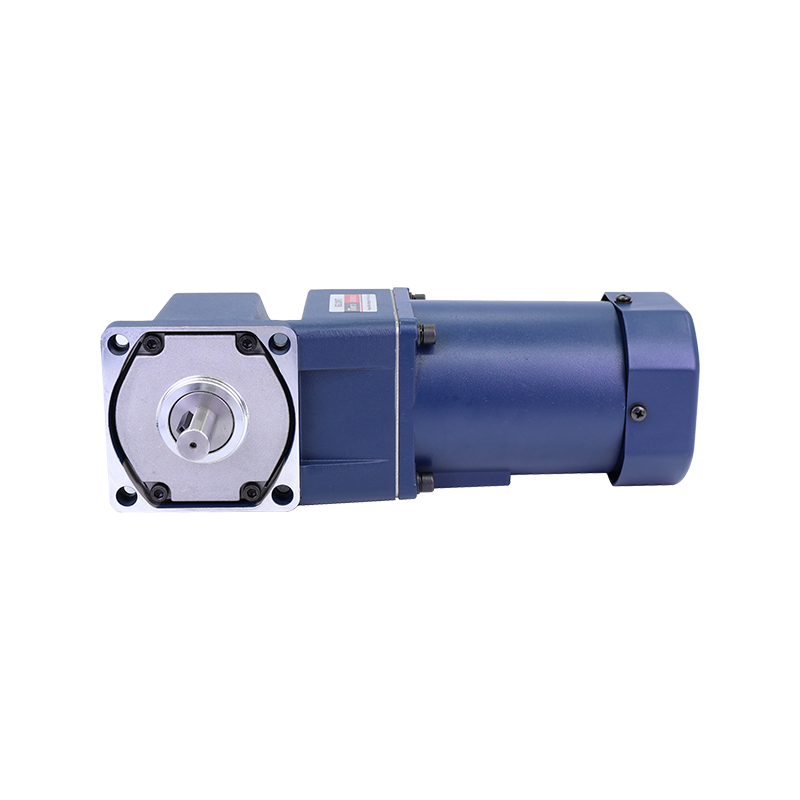

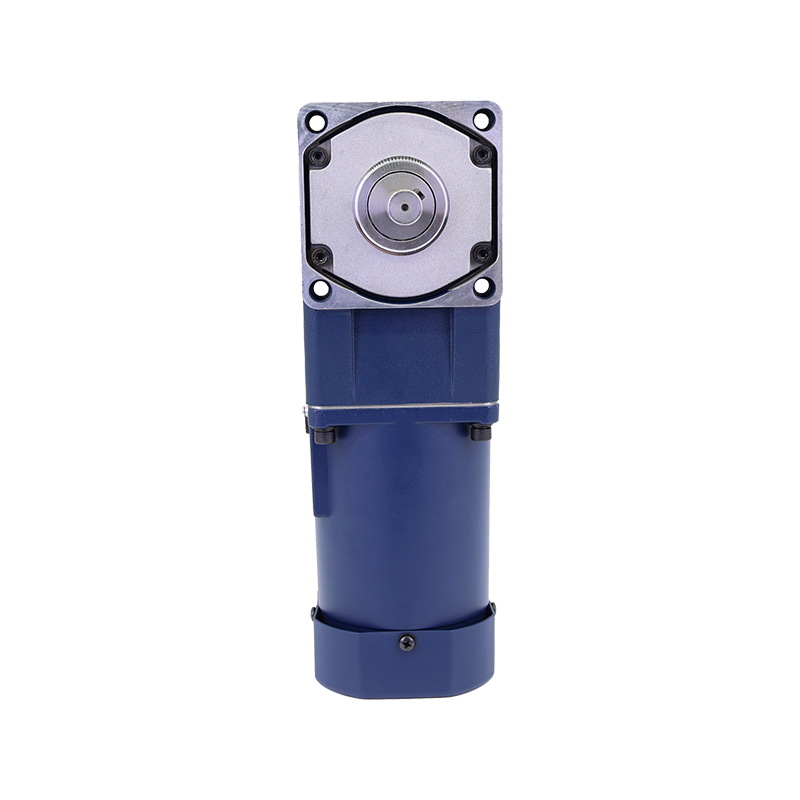

电机类型：5IK
功率：40W
电压： 110-380V
变速箱传动比： 3-180K
|
型号 ·类型 引出线型 |
输出功率 W |
电压 V |
频率 Hz |
调速范围 r/min |
容许转矩 |
启动转矩 mN.m |
电流 A |
运行电容 μF |
|
|
齿轮轴型 |
1200r/min mN.m |
90r/min mN.m |
|||||||
|
5IK40RGU-A |
40 |
1ph 100 |
50 |
90~1400 |
260 |
70 |
180 |
0.65 |
12 |
|
60 |
90~1700 |
0.70 |
|||||||
|
5IK40RGU-E |
40 |
1ph 110 |
60 |
90~1700 |
260 |
65 |
180 |
0.55 |
8.0 |
|
1ph 120 |
0.60 |
||||||||
|
5IK40RGU-C |
40 |
1ph 220 |
50 |
90~1400 |
300 |
75 |
160 |
0.35 |
2.5 |
|
1ph 230 |
0.40 |
||||||||
|
5IK40RGU-H |
40 |
1ph 220 |
60 |
90~1700 |
230 |
70 |
145 |
0.35 |
2.5 |
|
1ph 230 |
0.40 |
||||||||
|
类型 电动机/减速机 |
减速比 |
3 |
3.6 |
5 |
6 |
7.5 |
9 |
10 |
12.5 |
15 |
18 |
20 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
||
|
转速 r/min |
50Hz |
500 |
417 |
300 |
250 |
200 |
166 |
150 |
120 |
100 |
83 |
75 |
60 |
50 |
42 |
30 |
25 |
20 |
16 |
15 |
12 |
10 |
8 |
||
|
60Hz |
600 |
500 |
360 |
300 |
240 |
200 |
180 |
144 |
120 |
100 |
90 |
72 |
60 |
50 |
36 |
30 |
24 |
20 |
18 |
15 |
12 |
10 |
|||
|
5IK40RGU-A□ 5IK40RGUE□ 5IK40RGU-C□ 5IK40RGUH□ |

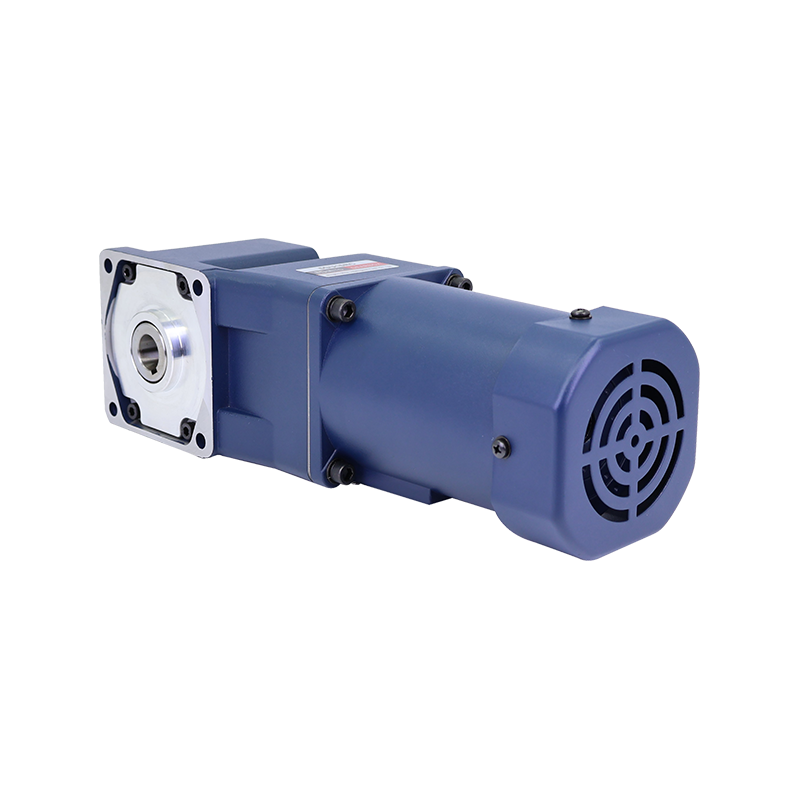

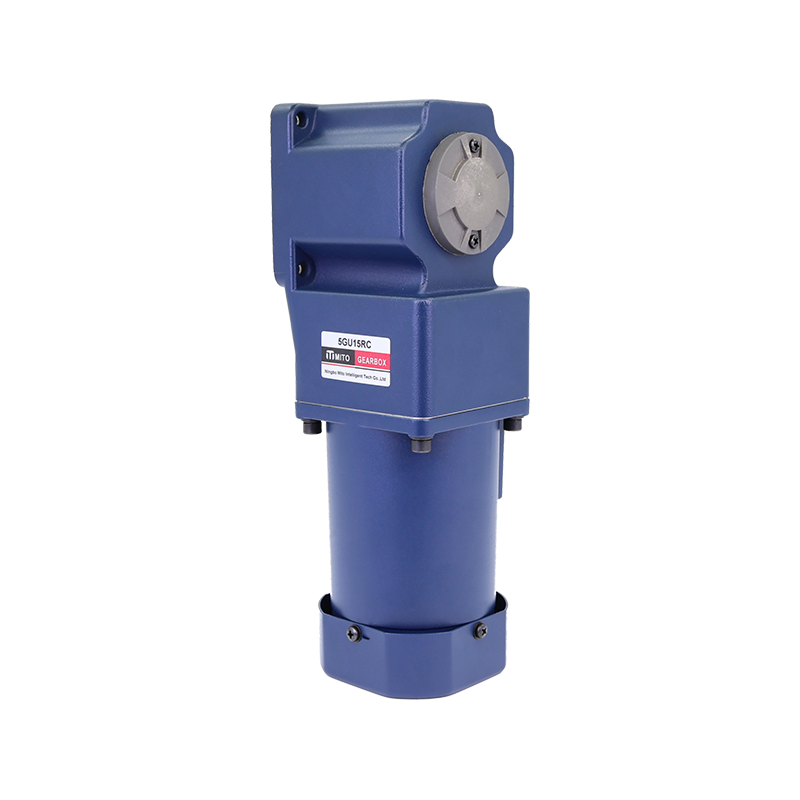

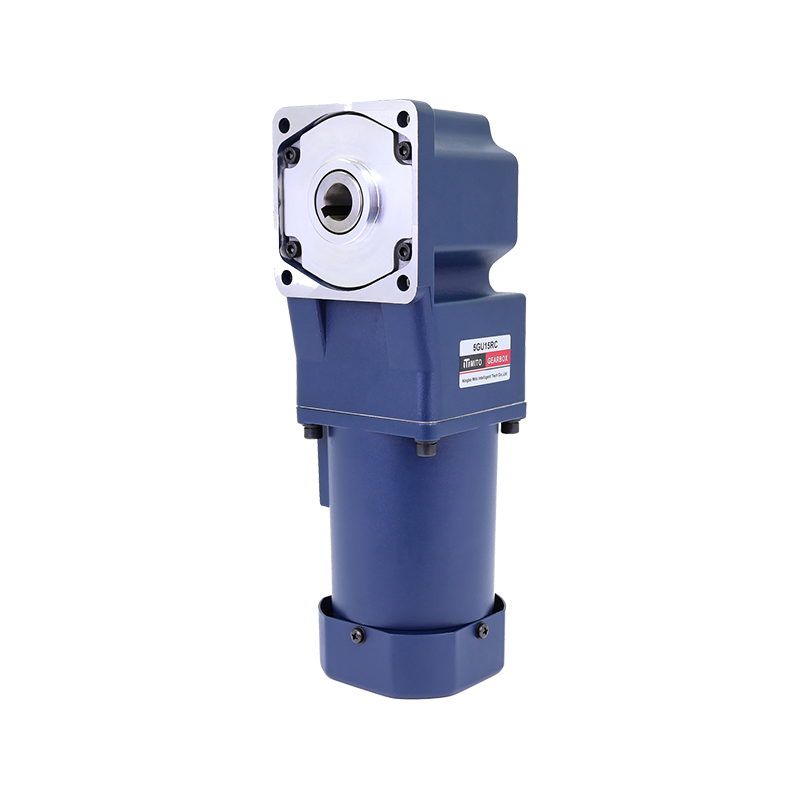

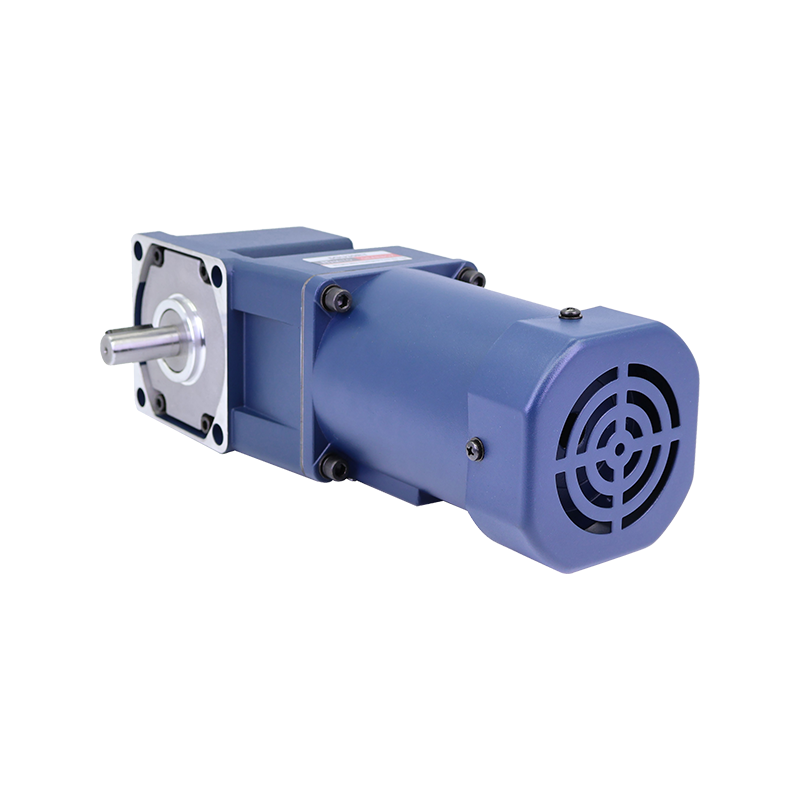

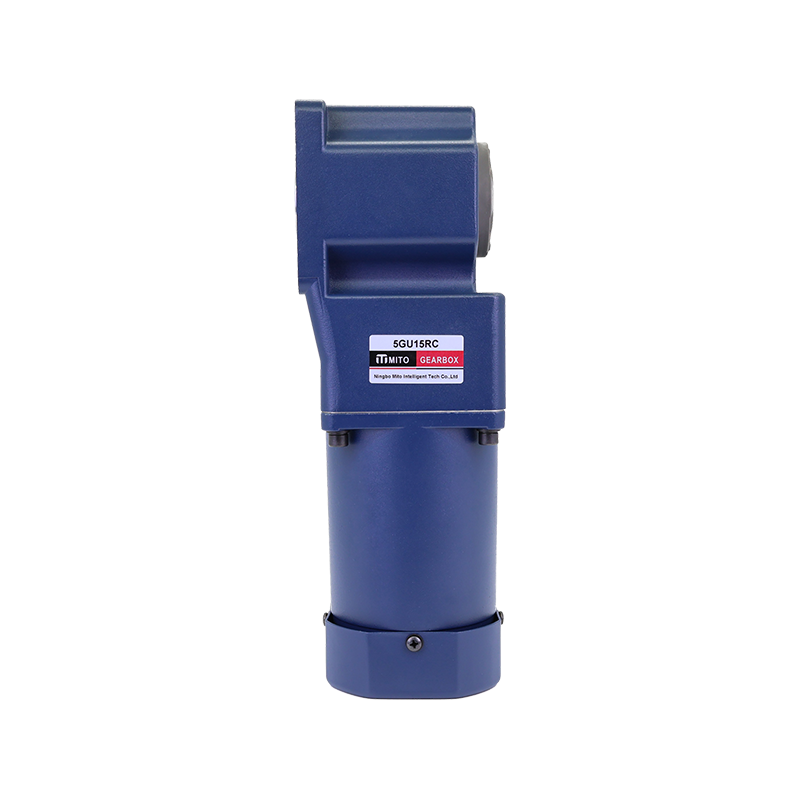

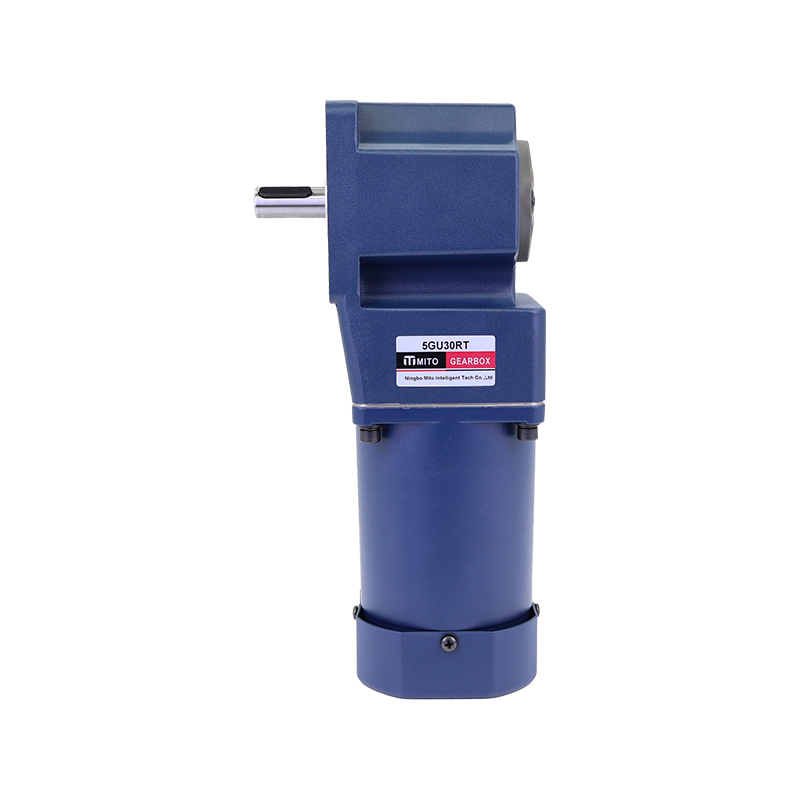

5GU□RC 5GU□RT |
容许转矩 |
50Hz |
0.50 |
0.60 |
0.84 |
1.00 |
1.58 |
1.67 |
1.86 |
2.63 |
3.16 |
3.34 |
3.71 |
5.26 |
6.31 |
6.80 |
9.50 |
11.4 |
14.2 |
17.0 |
18.9 |
20.0 |
20.0 |
20.0 |
|
4.91 |
5.89 |
8.19 |
9.82 |
16.1 |
16.4 |
18.19 |
26.8 |
32.2 |
32.8 |
36.4 |
53.7 |
64.4 |
70.0 |
97.0 |
116 |
145 |
174 |
193 |
200 |
200 |
200 |
||||
|
60Hz |
0.42 |
0.50 |
0.70 |
0.84 |
1.27 |
1.39 |
1.55 |
2.12 |
2.55 |
2.78 |
3.09 |
4.24 |
5.09 |
5.50 |
7.64 |
9.16 |
11.5 |
13.7 |
15.3 |
18.3 |
20.0 |
20.0 |
|||
|
4.09 |
4.91 |
6.82 |
8.19 |
13.0 |
13.7 |
15.16 |
21.6 |
26.0 |
27.3 |
30.3 |
43.3 |
51.9 |
56.1 |
77.9 |
93.5 |
117 |
140 |
156 |
187 |
200 |
200 |
||||
