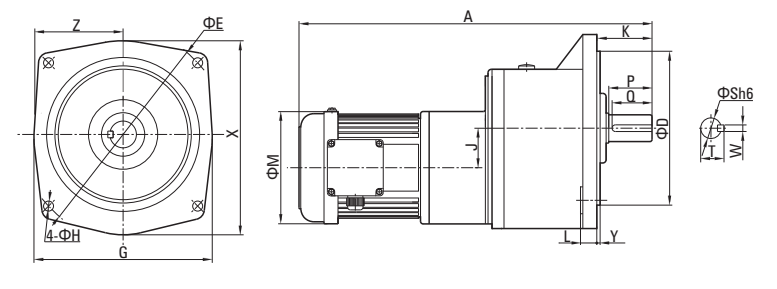

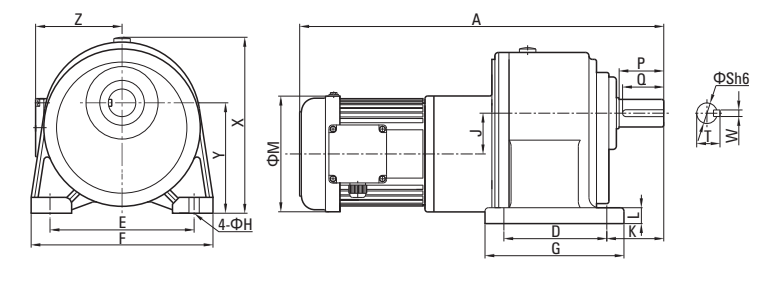

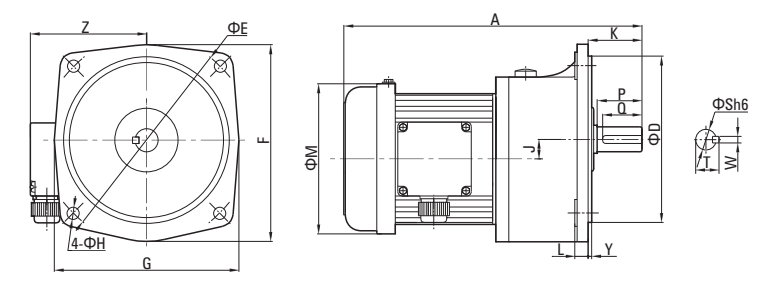

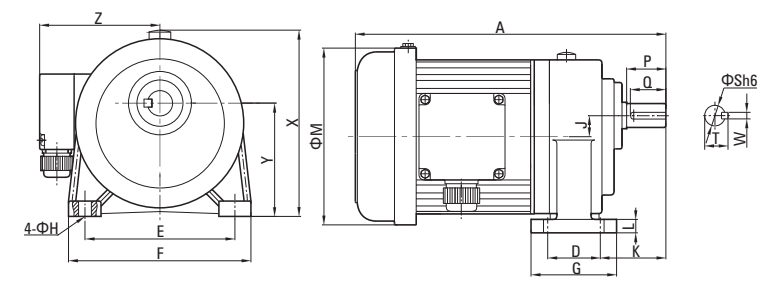

功率 |
箱号 |
减速比 |
A |
D |
E |
F |
G |
H |
J |
K |
L |
M |
X |
Y |
Z |
S |
P |
Q |
W |
T |
重量 |
|
200W 1/4HP |
1# |
3-10 标准型 |
279 |
40(50) |
110(140) |
135(120) |
65(120) |
9 |
16 |
50(39.5) |
10(12) |
130.5 |
143(/) |
88.5(2) |
100 |
18 |
30 |
27 |
5 |
20.2 |
7.0 |
|
15-90 轻载型 |
279 |
40(50) |
110(140) |
135(120) |
65(120) |
9 |
16 |
50(39.5) |
10(12) |
130.5 |
143(/) |
88.5(2) |
100 |
18 |
30 |
27 |
5 |
20.2 |
7.0 |
||
|
2# |
15-90 标准型 |
306 |
65(148) |
130(185) |
158(175) |
90(165) |
12 |
17.5 |
60(48) |
13(12) |
130.5 |
161(/) |
97.5(3) |
100 |
22 |
40 |
35 |
7 |
25 |
9.00 |
|
|
100-200 轻载型 |
306 |
65(148) |
130(185) |
158(175) |
90(165) |
12 |
17.5 |
60(48) |
13(12) |
130.5 |
161(/) |
97.5(3) |
100 |
22 |
40 |
35 |
7 |
25 |
9.00 |
||
|
3# |
100-200 标准型 |
339 |
90(170) |
140(220) |
178(205) |
120(195) |
12 |
23 |
68(58) |
17(13) |
130.5 |
184(/) |
116(3) |
100 |
28 |
45 |
40 |
7 |
31.1 |
9.00 |
|
|
250-1800 轻载型 (1#+3#) |
401 |
90(170) |
140(220) |
178(205) |
120(195) |
12 |
39 |
68(58) |
17(13) |
130.5 |
184(/) |
116(3) |
100 |
28 |
45 |
40 |
7 |
31.1 |
18.0 |
||
|
4# |
250-1800 标准型 (2#+4#) |
456 |
130(185) |
170(255) |
210(239) |
165(216) |
13 |
47.5 |
70(66.5) |
18(13) |
130.5 |
216(/) |
138.5(3) |
100 |
32 |
55 |
50 |
10 |
35.5 |
28.0 |
|
|
轻载型 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
功率 |
箱号 |
类型 |
速比 频率 |
3 |
5 |
10 |
15 |
20 |
25 |
30 |
40 |
45 |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
140 |
160 |
180 |
200 |
|
200W 1/4HP |
1# |
标准型 |
50Hz |
0.30 |
0.60 |
1.10 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
60Hz |
0.30 |
0.50 |
0.90 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|||
|
轻载型 |
50Hz |
/ |
/ |
/ |
1.70 |
2.30 |
2.80 |
3.40 |
3.40 |
3.40 |
3.40 |
3.40 |
3.40 |
3.40 |
3.40 |
/ |
/ |
/ |
/ |
/ |
/ |
||
|
60Hz |
/ |
/ |
/ |
1.40 |
1.90 |
2.30 |
3.40 |
3.40 |
3.40 |
3.40 |
3.40 |
3.40 |
3.40 |
3.40 |
/ |
/ |
/ |
/ |
/ |
/ |
|||
|
2# |
标准型 |
50Hz |
/ |
/ |
/ |
1.50 |
2.00 |
2.50 |
3.00 |
4.10 |
4.60 |
5.10 |
6.10 |
7.10 |
8.10 |
9.10 |
/ |
/ |
/ |
/ |
/ |
/ |
|
|
60Hz |
/ |
/ |
/ |
1.30 |
1.70 |
2.10 |
2.50 |
3.30 |
3.80 |
4.20 |
5.0 |
5.90 |
6.70 |
7.50 |
/ |
/ |
/ |
/ |
/ |
/ |
|||
|
轻载型 |
50Hz |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
10.1 |
11.6 |
11.6 |
11.6 |
11.6 |
11.6 |
||
|
60Hz |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
8.40 |
10.0 |
11.6 |
11.6 |
11.6 |
11.6 |
|||
|
3# |
标准型 |
50Hz |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
10.1 |
12.2 |
14.2 |
16.2 |
18.3 |
20.3 |
|
|
60Hz |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
8.40 |
10.0 |
11.7 |
13.4 |
15.0 |
16.7 |
|||
|
轻载型 |
50Hz |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
||
|
60Hz |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|
功率 |
箱号 |
类型 |
速比 频率 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
700 |
800 |
900 |
1000 |
1100 |
1200 |
1300 |
1400 |
1500 |
1600 |
1700 |
1800 |
|
200W 1/4HP |
1#+3# |
轻载型 |
50Hz |
11.2 |
11.2 |
11.2 |
11.2 |
11.2 |
11.2 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
|
60Hz |
11.2 |
11.2 |
11.2 |
11.2 |
11.2 |
11.2 |
27.1 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
22.9 |
|||
|
2#+4# |
标准型 |
50Hz |
27.1 |
27.1 |
27.1 |
27.1 |
27.1 |
27.1 |
27.1 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
|
|
60Hz |
27.1 |
27.1 |
27.1 |
27.1 |
27.1 |
27.1 |
27.1 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
51.8 |
